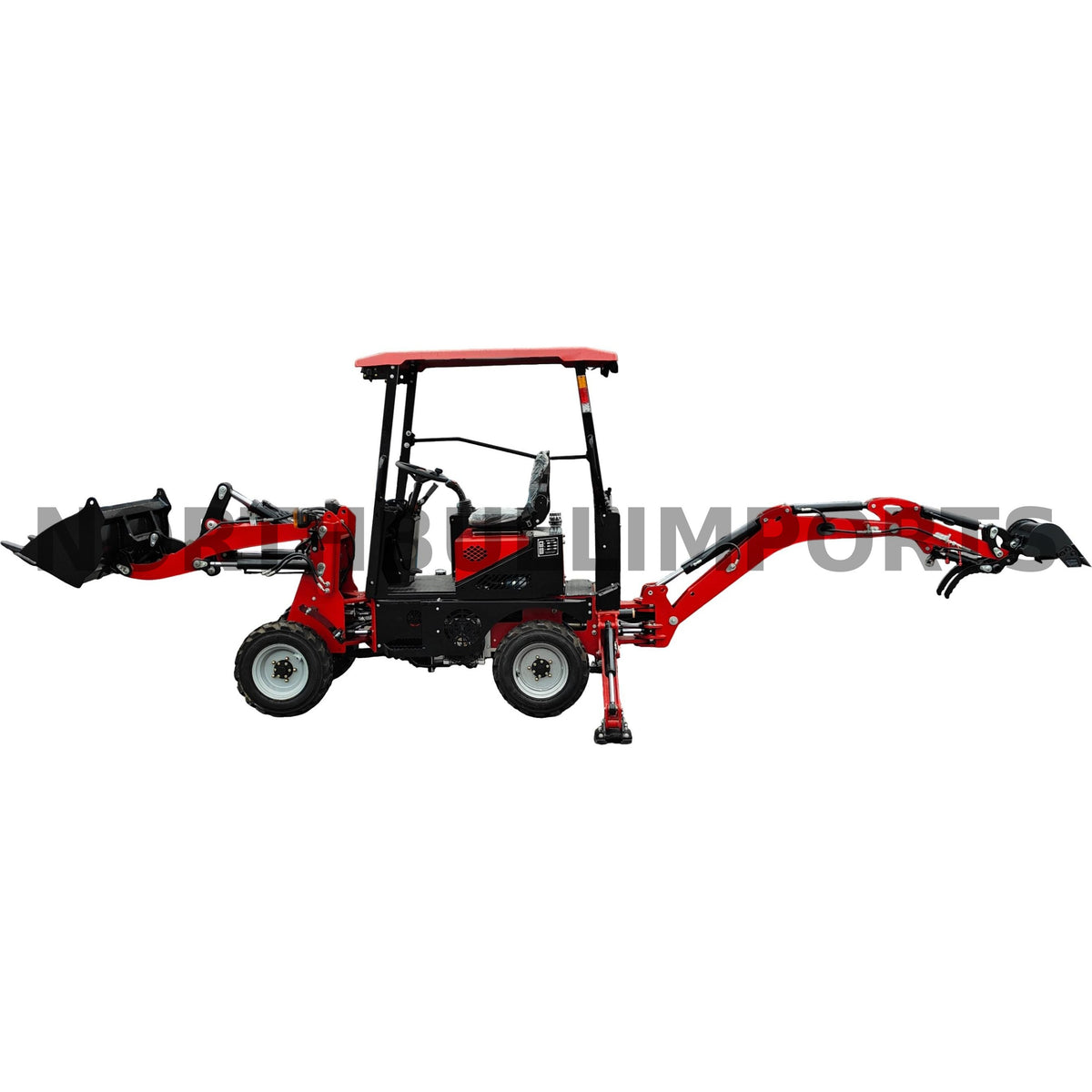

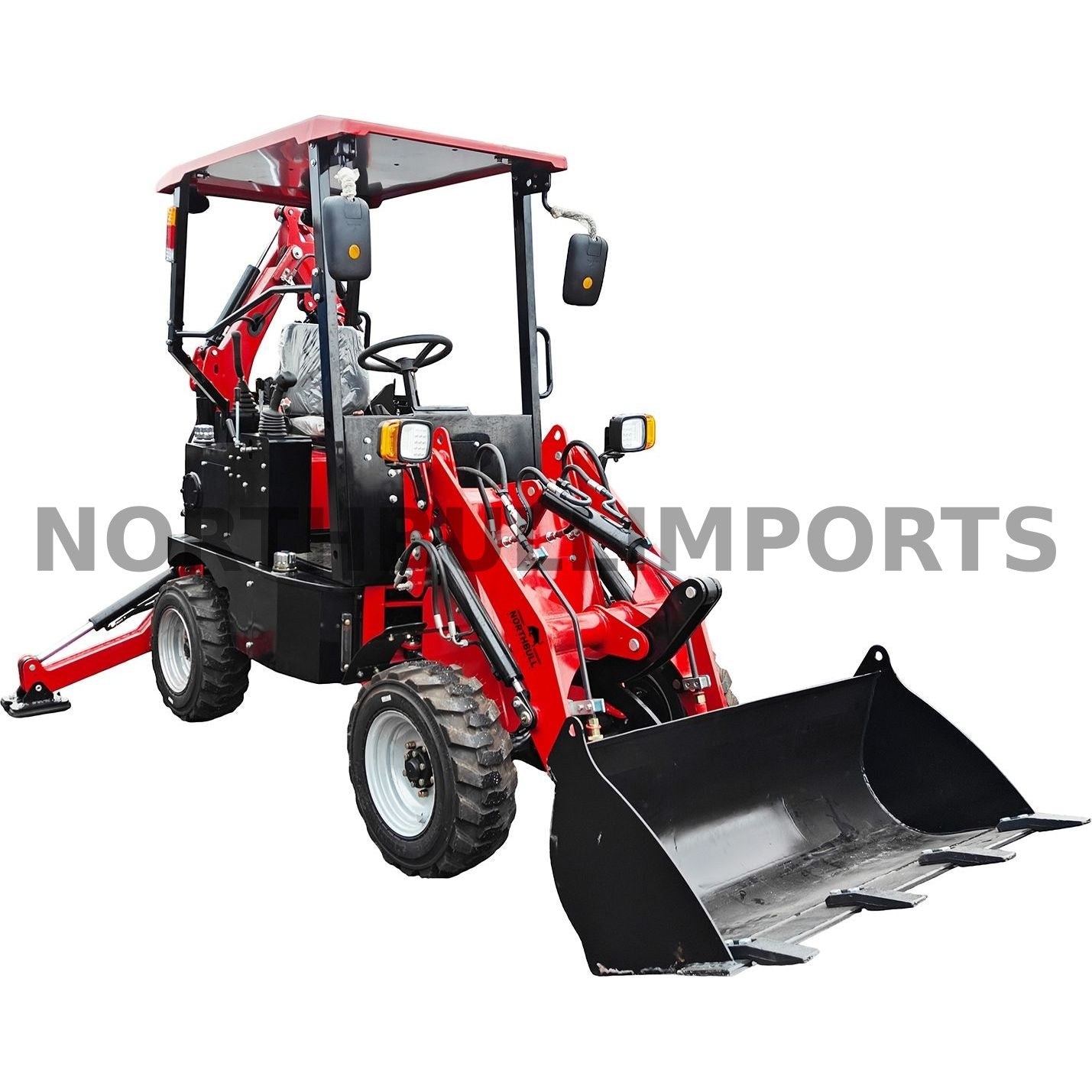

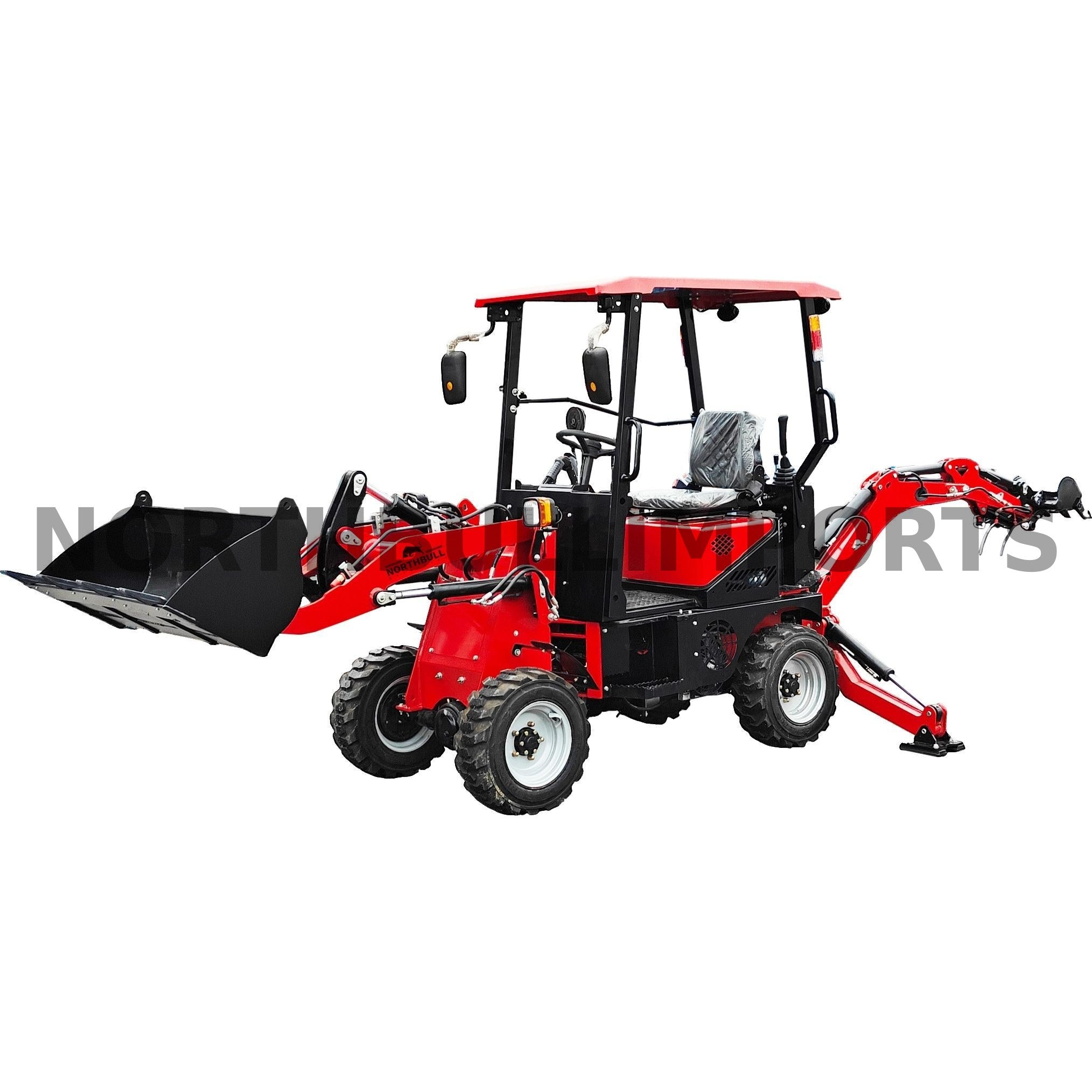

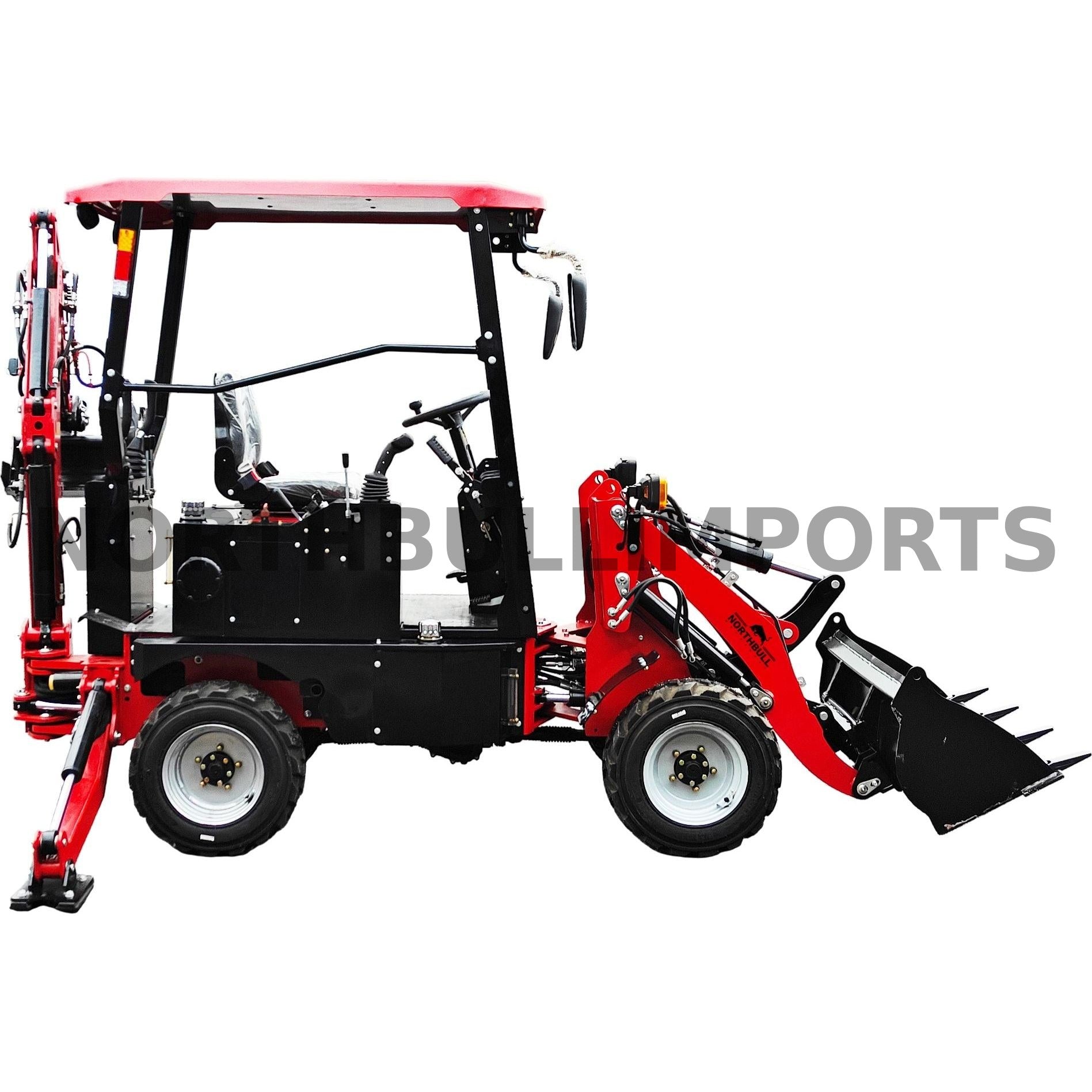

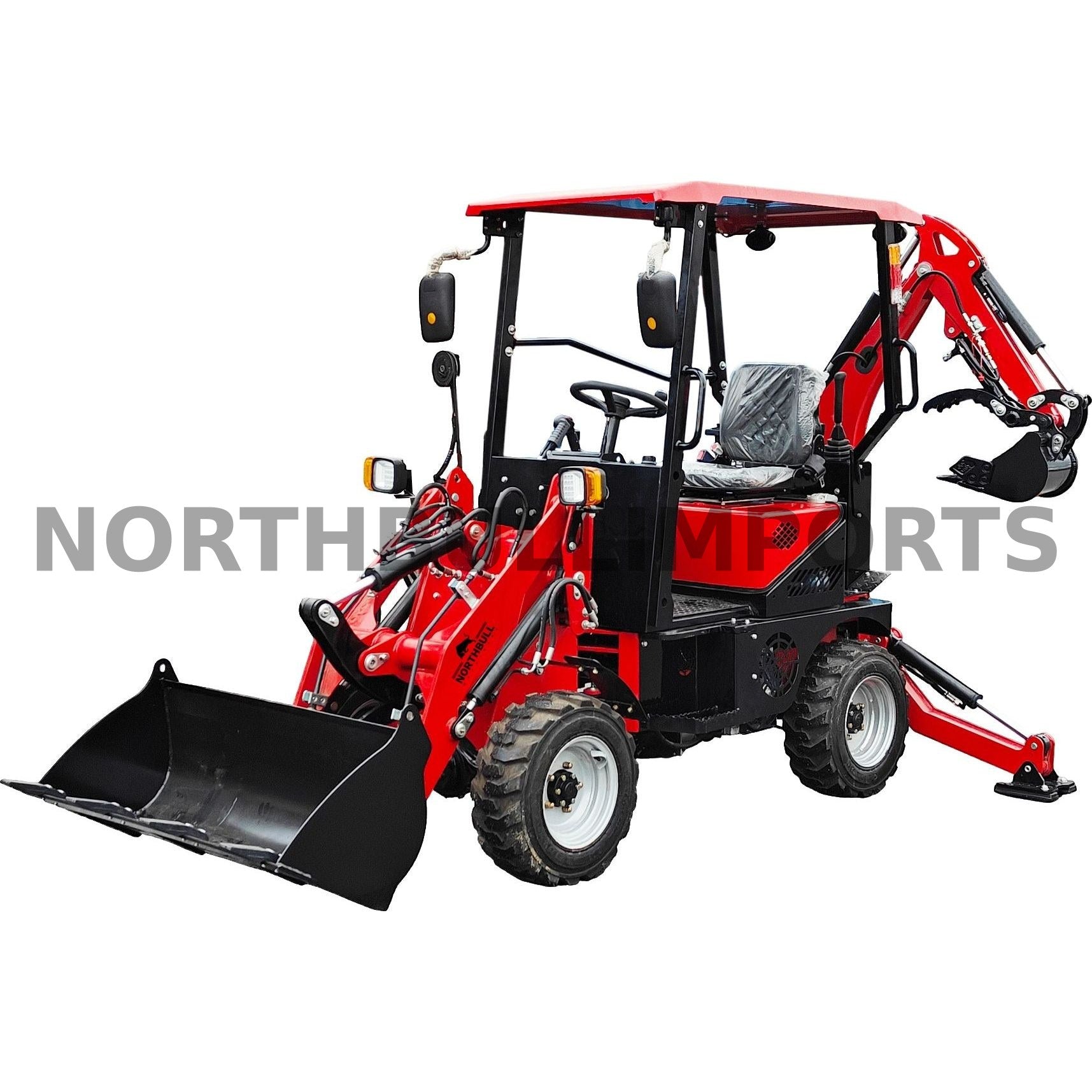

BL15-05 Backhoe loader

Regular price 10.359,21 € incl. VAT and customs | Shipping not included

Standard equipment includes:

  • Auxiliary hydraulics on front loader and backhoe
  • Reliable Yanmar 3-cylinder engine
  • Hydraulic 4WD with two speed-gearbox
  • Including buckets for front loader and backhoe
  • EURO-type hydraulic quick hitch in front loader
  • Electric Forward/Reverse Shuttle

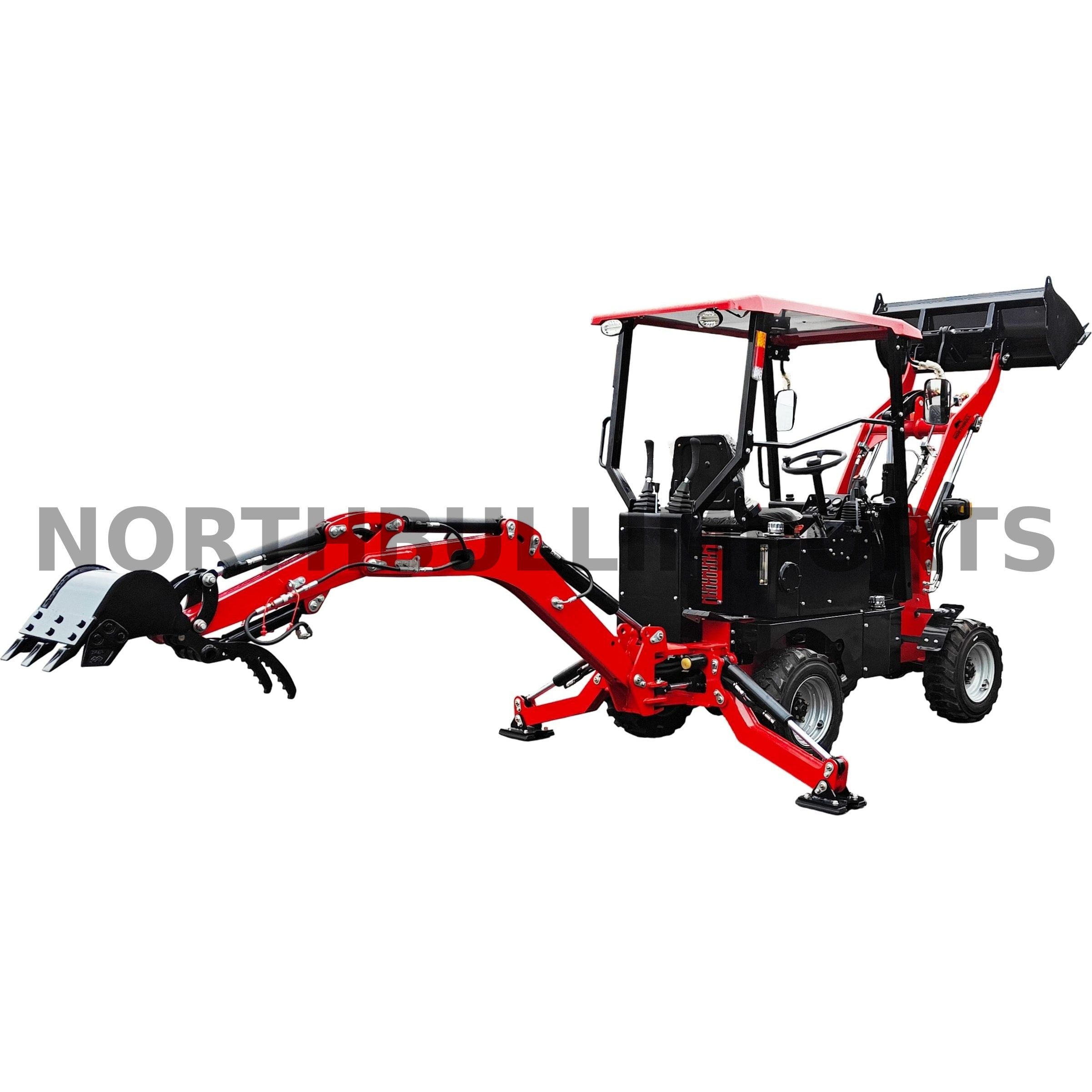

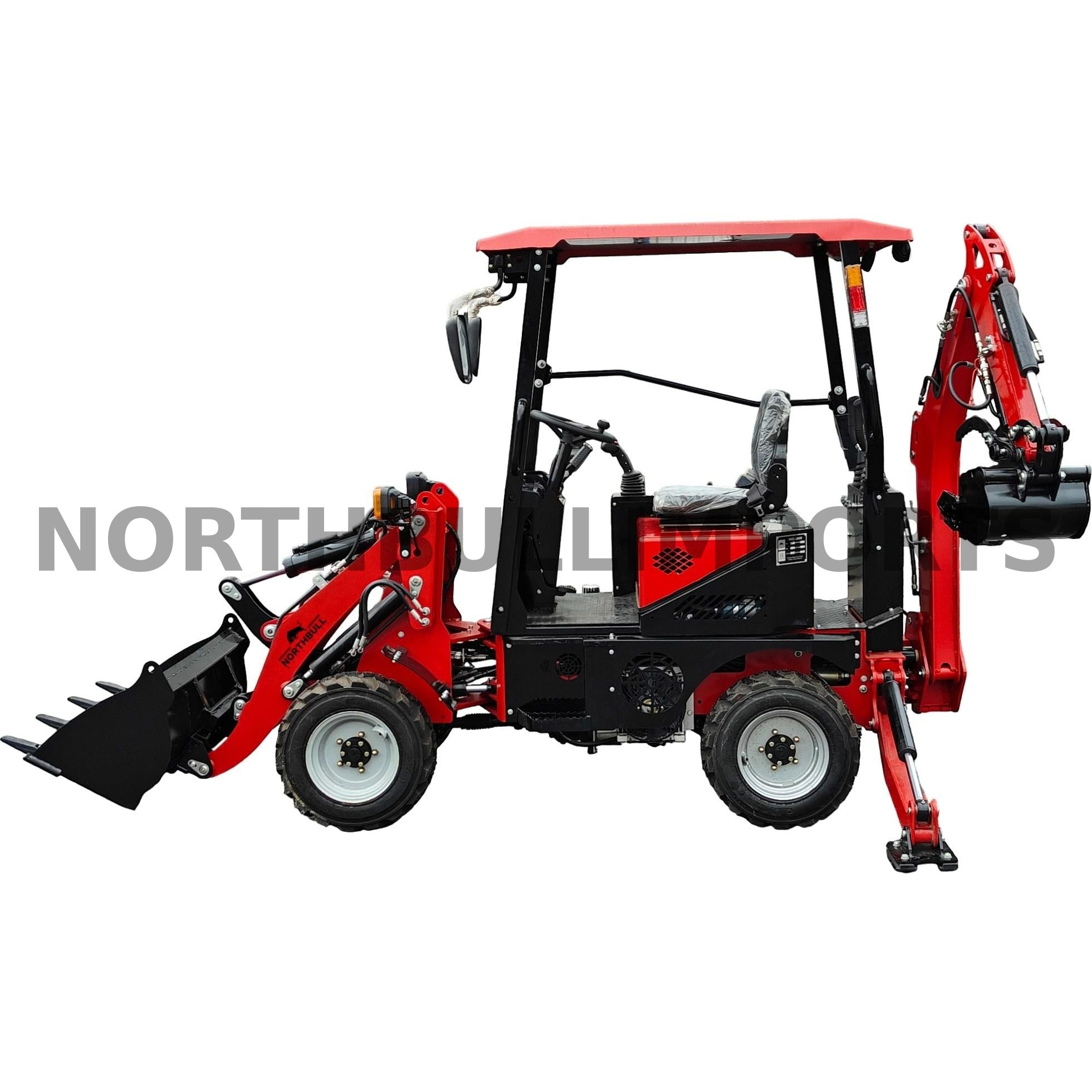

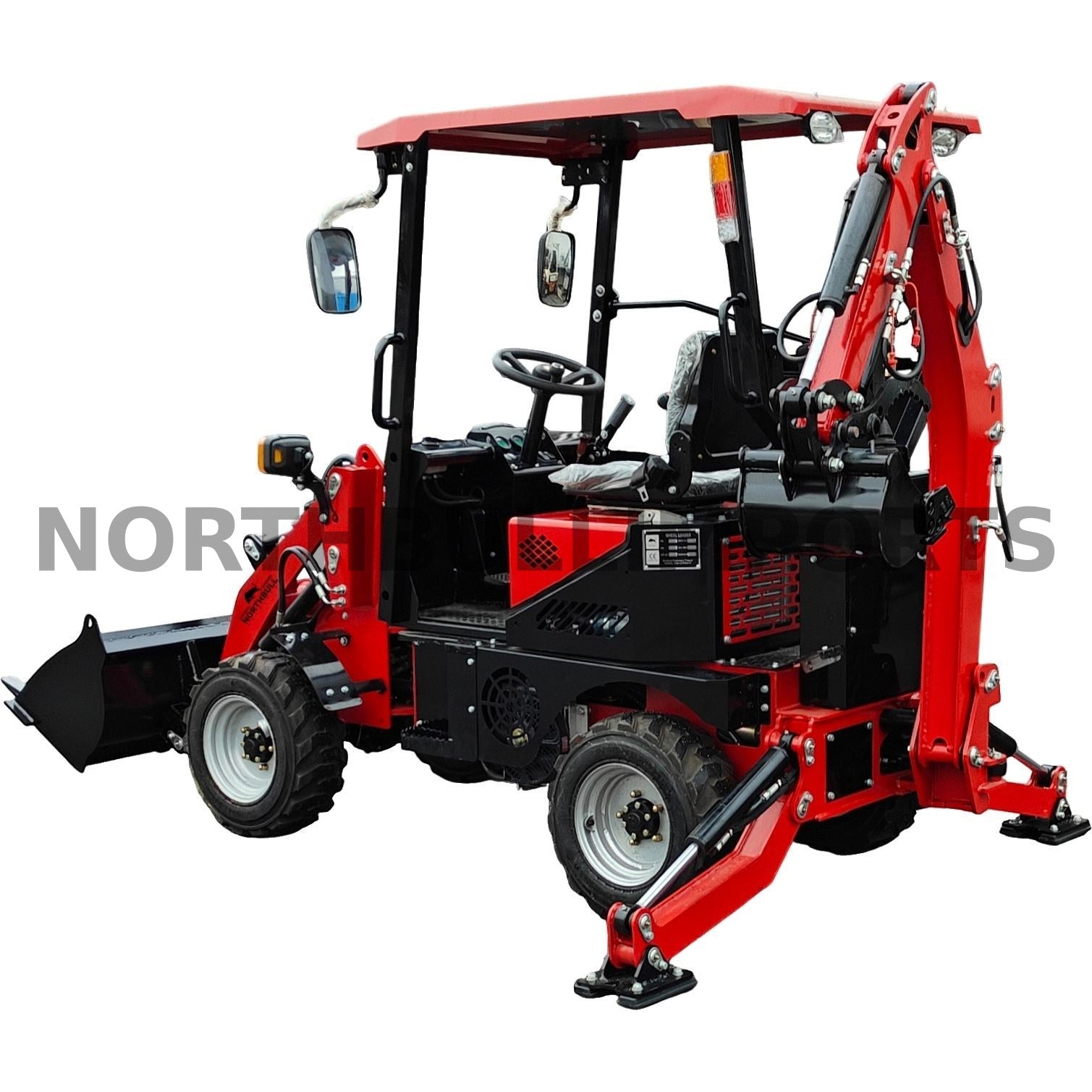

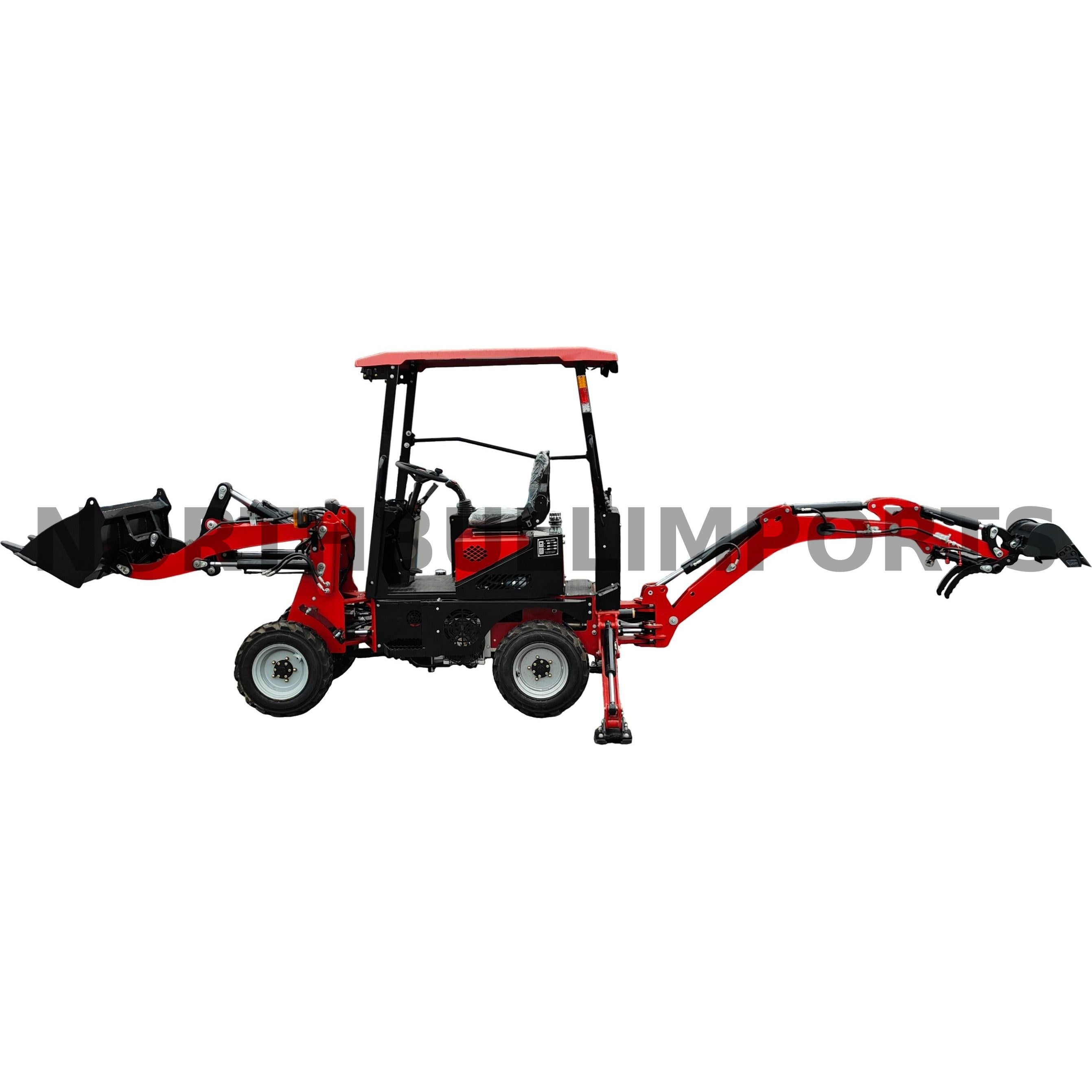

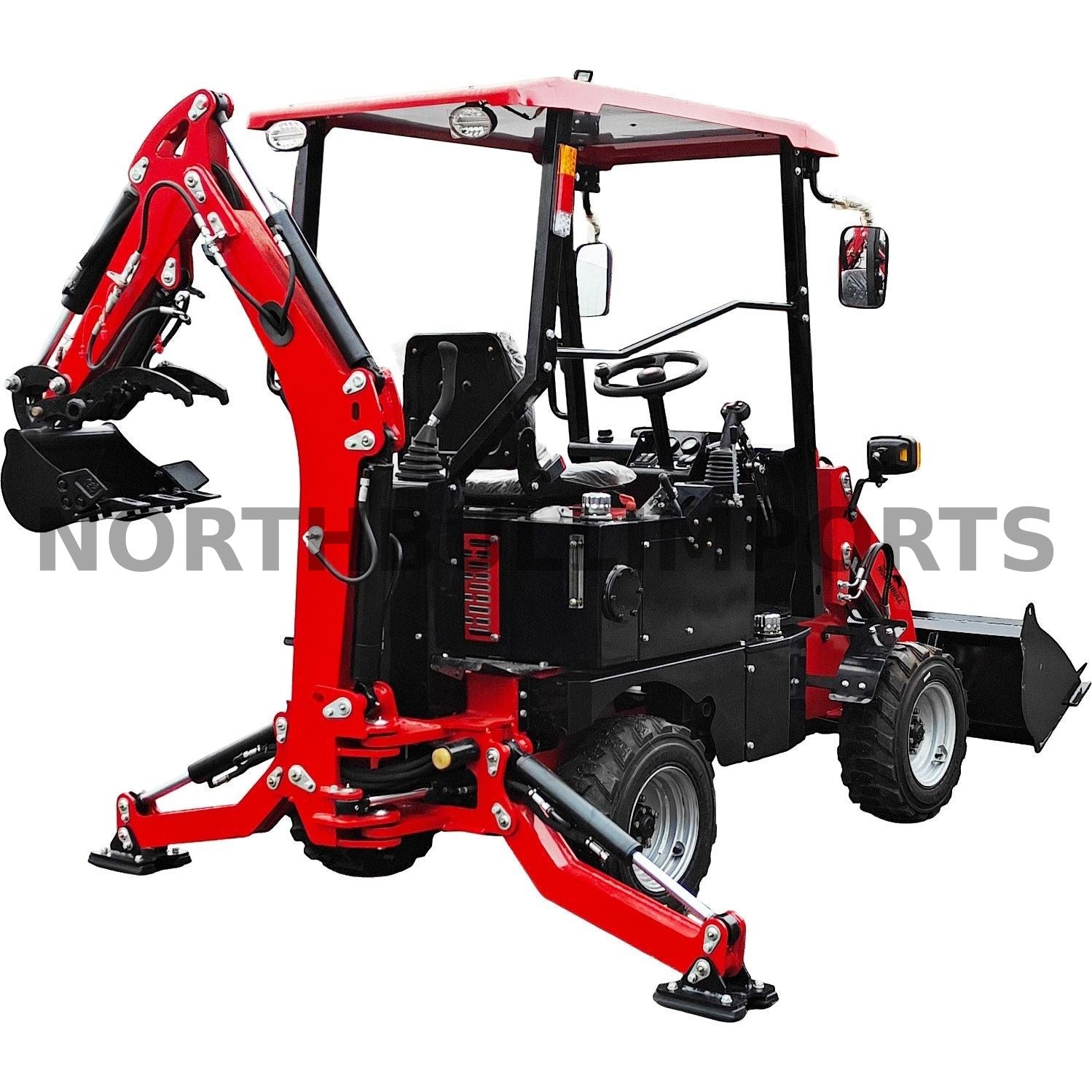

BL15-05 Compact Backhoe Loader – One Machine, Countless Jobs!

The BL15-05 combines the lifting power of a front loader with the digging capability of a backhoe in one compact and highly versatile machine. Whether you're loading gravel, digging trenches, moving pallets, maintaining roads, clearing snow or handling materials around farms and construction sites, the BL15-05 is built to get the job done efficiently all year round.

Its compact dimensions, reliable Yanmar diesel engine and permanent four-wheel drive make it an excellent choice wherever manoeuvrability, versatility and low operating costs matter.

One machine – endless versatility

What truly sets the BL15-05 apart is its ability to perform a wide variety of jobs with a single machine. The front loader and the rear excavator both feature auxiliary hydraulics, allowing numerous hydraulic attachments to be connected depending on the task at hand.

From buckets, pallet forks and sweepers to hydraulic augers, grapples, breakers, thumbs and many other attachments, the BL15-05 quickly transforms into the right machine for almost any job. This makes it an excellent investment for contractors, municipalities, farms and property maintenance companies looking to maximize productivity while minimizing equipment costs.

Compact size with professional capability

Despite measuring only 1150 mm in width, the BL15-05 delivers impressive performance. The front loader lifts up to 500 kg with a lifting height of over 2 meters, while the backhoe reaches over 2.3 meters and digs to a depth of 1520 mm.

The compact footprint allows the machine to work comfortably in gardens, narrow access roads, livestock buildings and other confined areas where larger backhoe loaders simply cannot operate.

Reliable hydraulics and proven Yanmar power

The BL15-05 is powered by the renowned Yanmar 3TNV74 Stage V diesel engine, well known for its reliability, fuel efficiency and long service life. A dual gear pump supplies separate hydraulic circuits for driving and working hydraulics, providing smooth machine operation and dependable performance.

The standard hydraulic oil cooler, replaceable hydraulic oil filter and simple mechanical control system help keep maintenance straightforward while reducing long-term operating costs.

Built for everyday work

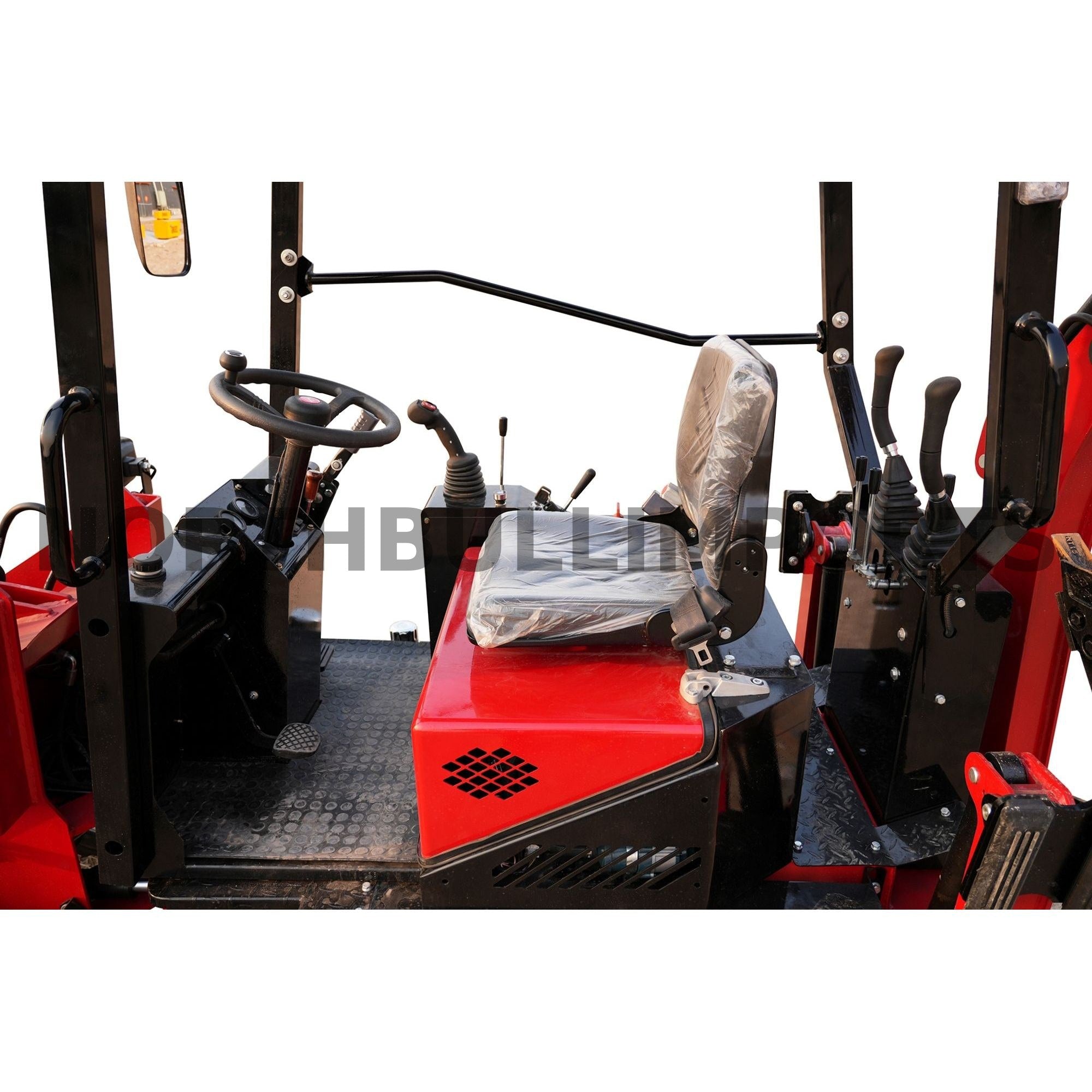

The operator benefits from intuitive mechanical joystick controls, excellent visibility and a rotating adjustable seat for quick transitions between loader and excavator operation. The safety canopy, working lights and robust drivetrain make the BL15-05 ready for demanding daily use in a wide range of working environments.

Whether you're a contractor, farmer, landscaper or property owner, the BL15-05 delivers the flexibility of several machines in one compact package.

Why choose the BL15-05?

  • Front loader and backhoe combined in one versatile machine
  • Auxiliary hydraulics on both the loader and backhoe for countless hydraulic attachments
  • Hydraulic quick hitch included on the front loader
  • Reliable Yanmar Stage V diesel engine
  • Compact 1150 mm width for excellent manoeuvrability
  • 500 kg front loader lifting capacity
  • 4WD drivetrain for reliable traction
  • Simple mechanical controls with low maintenance requirements
  • Perfect for farms, landscaping, construction, property maintenance and municipal work
  • Excellent value with low operating costs

How to order the product:

  1. Enter your address in the calculator and calculate the total price including delivery
  2. Choose the color of your product
  3. Choose the accessories and add-ons you want
  4. Add products to the shopping cart
  5. Go to shopping cart
  6. Pay for your purchase. We recommend ordering by invoice as a payment method.

Calculate Shipping Cost

Enter Address

Enter at least 5 characters to see address suggestions

Key attributes
Max lifting weight (kg): 500
Engine brand: Yanmar
Power (kW/hp): 11,2/15
Drive train (2WD / 4WD / full time 4WD): 4WD
Attachment coupling type: EURO
PDF button not found. Make sure the LitPDF app block is added to this product page.

We typically reply within 24 hours.

Delivery information
Estimated manufacturing time (days)
20
Estimated delivery time (weeks)
12
Freight indexation
Secure payments

Payments are secured with strong SSL encryption and PCI DSS data protection protocols.

Payment methods

We accept the most common debit and credit cards, as well as domestic online banking and invoice payments. You can also apply for financing for your purchases through our financing partner without obligation.


General information

  • CE marking: Yes
  • Warranty: 1 year
  • User manual in Chinese / English: English
  • Noise level at operator ear (dB): 75

Performance

  • Climbing ability (degrees): 15
  • Steering angle (degrees): 110
  • Travel speed fast (km/h): 12

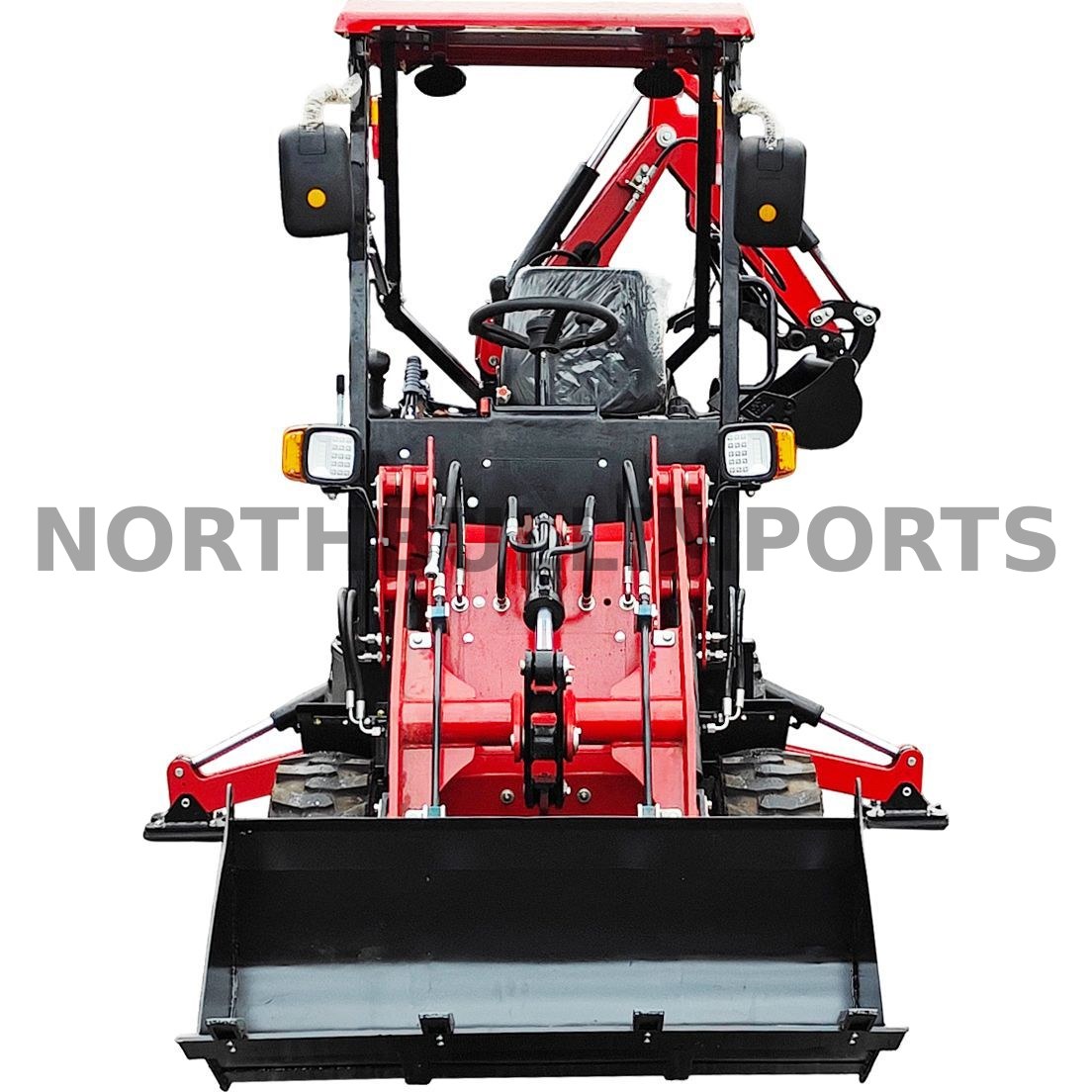

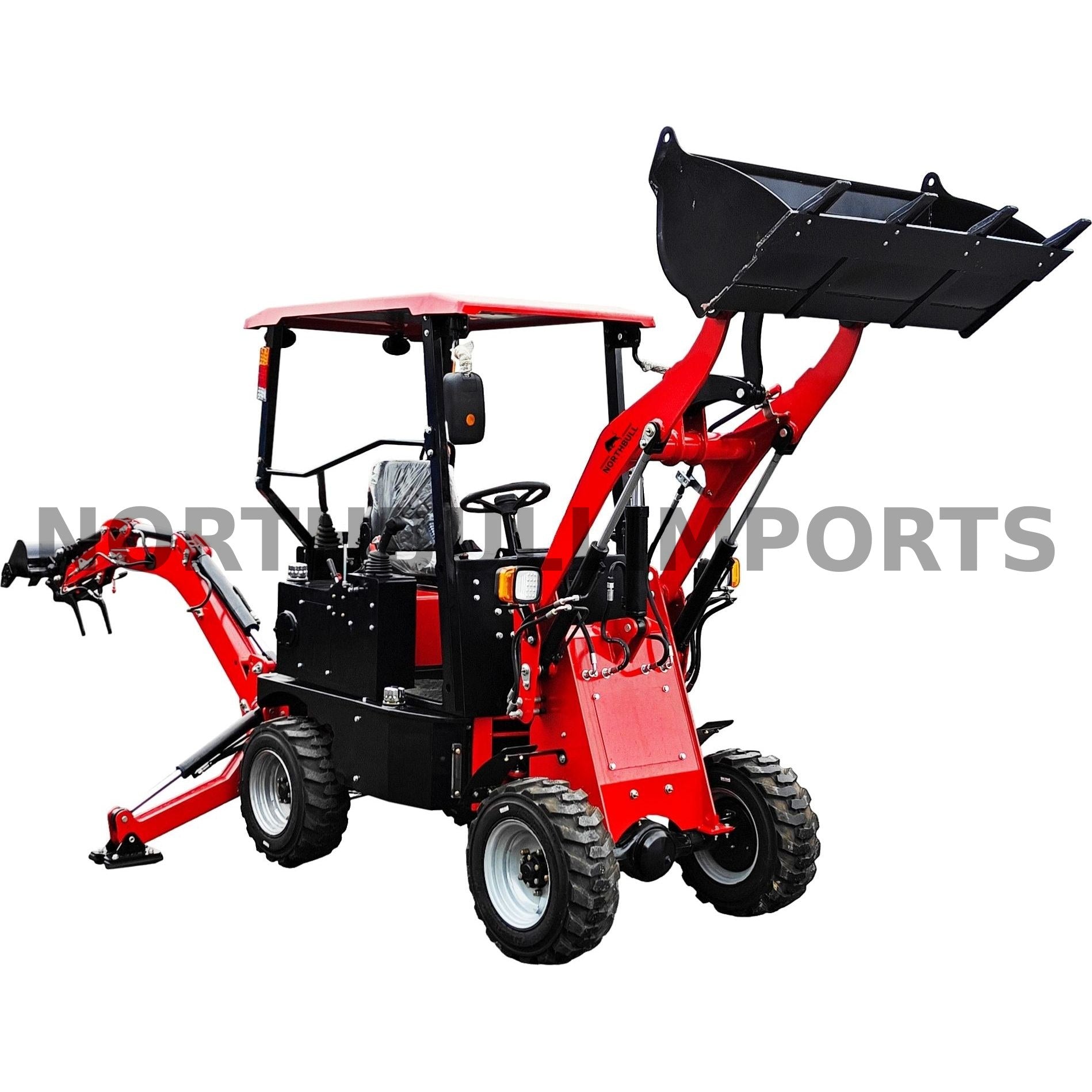

Front loader

  • Max lifting weight (kg): 500
  • Dump Angle (degrees): 75
  • Max lifting height (mm): 2080
  • Max dumping height (mm): 1540
  • Max reach, boom fully raised, no attachment (mm): 450
  • Bucket capacity (m3): 0.3

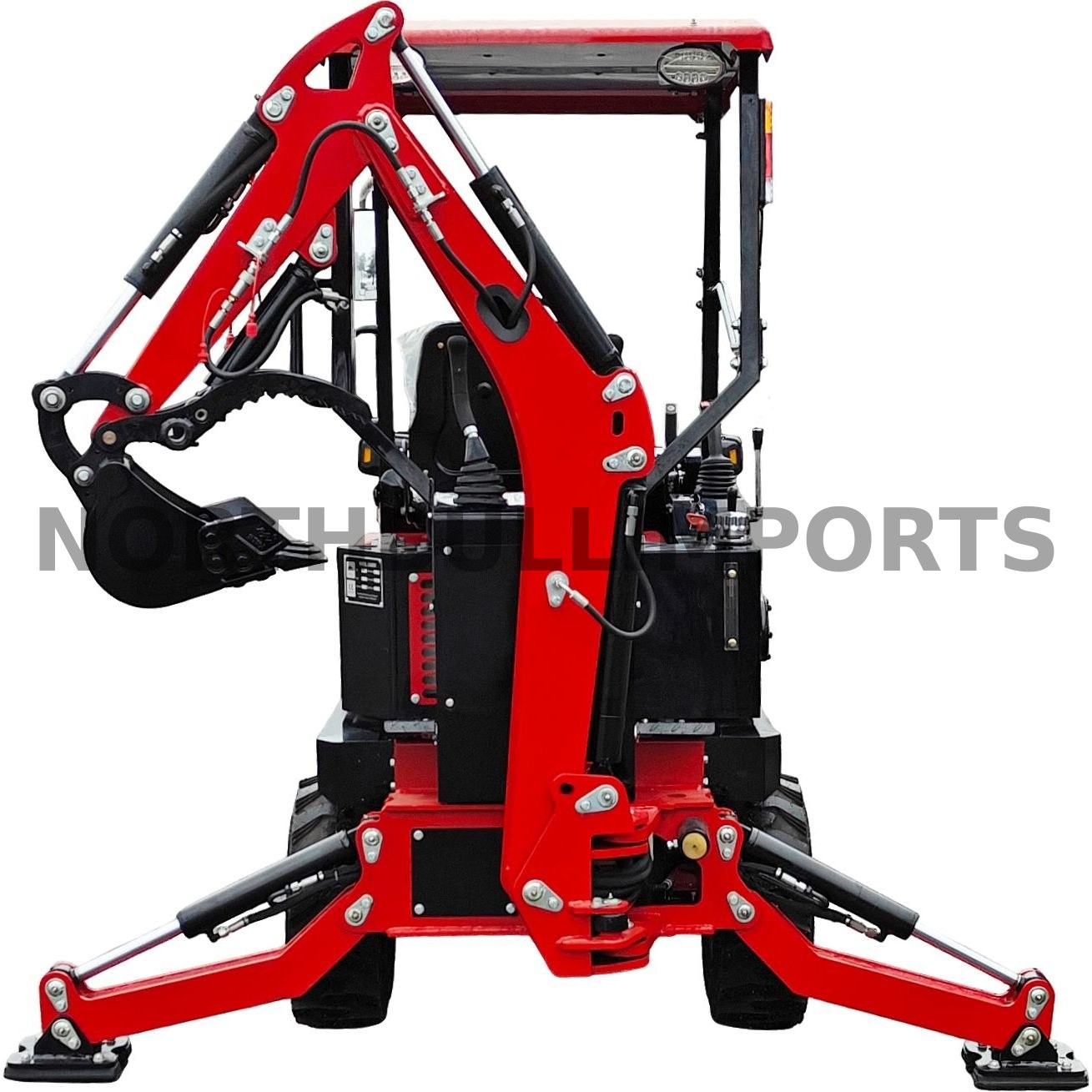

Backhoe

  • Max digging depth (mm): 1520
  • Max digging height (mm): 2720
  • Max dumping height (mm): 2100

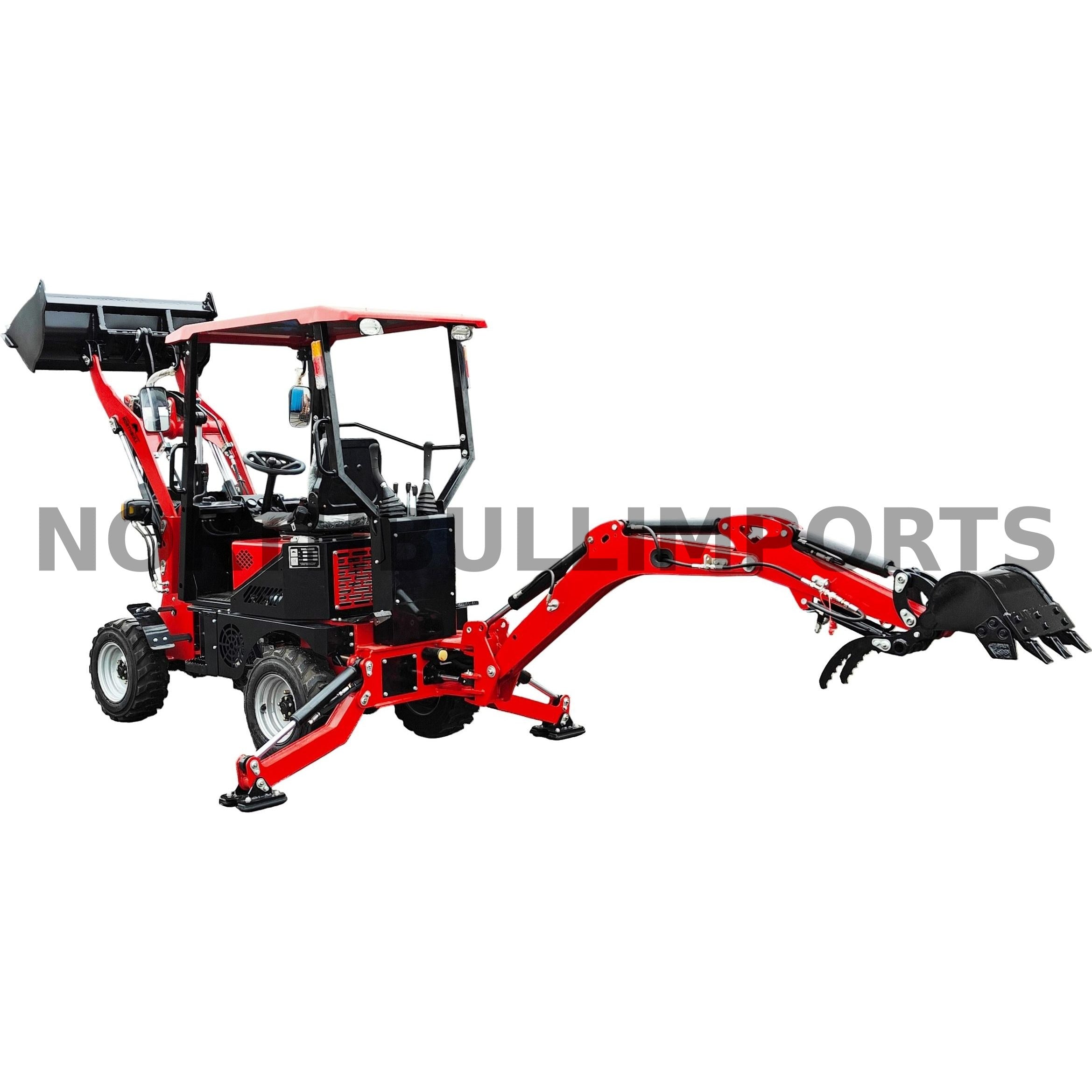

  • Max digging reach (mm): 2370

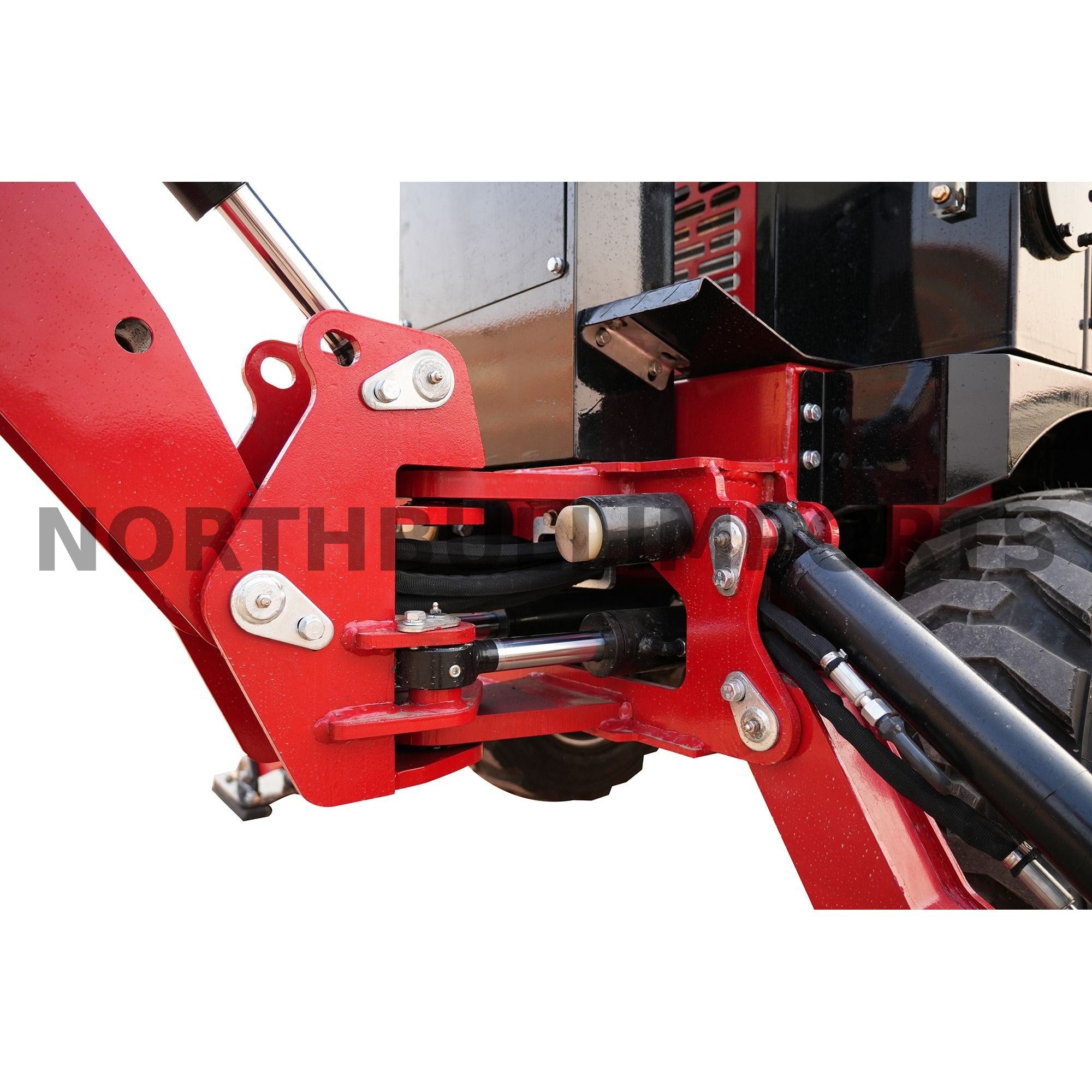

  • Boom swing angle (degrees): 170
  • Max lifting weight (kg): 250

Engine

  • Engine brand: Yanmar
  • Engine model: 3TNV74-SPTY1
  • Fuel type: Diesel
  • Power (kW/hp): 11,2/15
  • RPM: 2400
  • Displacement (cc): 993
  • Number of cylinders: 3
  • Cooling: Water-cooled
  • Emission class: EURO 5
  • Engine pre-heater included: Yes

Transmission and drivetrain

  • Drive type (hydrostatic / torque converter / electric): Hydraulic drive motor + two-speed reducer gearbox
  • Drive train (2WD / 4WD / full-time 4WD): 4WD
  • Transmission (mechanical / hydrostatic): Mechanical
  • Independent hub motors: No
  • Gears (front / reverse): 2+2
  • Gearbox (one speed / two speed): Two-speed
  • High/low gear shifting (mechanical / electric): Mechanical
  • Driving direction shifting (mechanical / electric): Electric
  • Where driving direction shifting is controlled from: Joystick button
  • Axle type: Rear axle: floating, Front axle: rigid
  • Front axle differential type: Open
  • Rear axle differential type: Open
  • Axle load capacity – front (kg): 1000
  • Axle load capacity – rear (kg): 1000
  • Hub diameter (mm): 220
  • Hub bolt pattern: 14x50

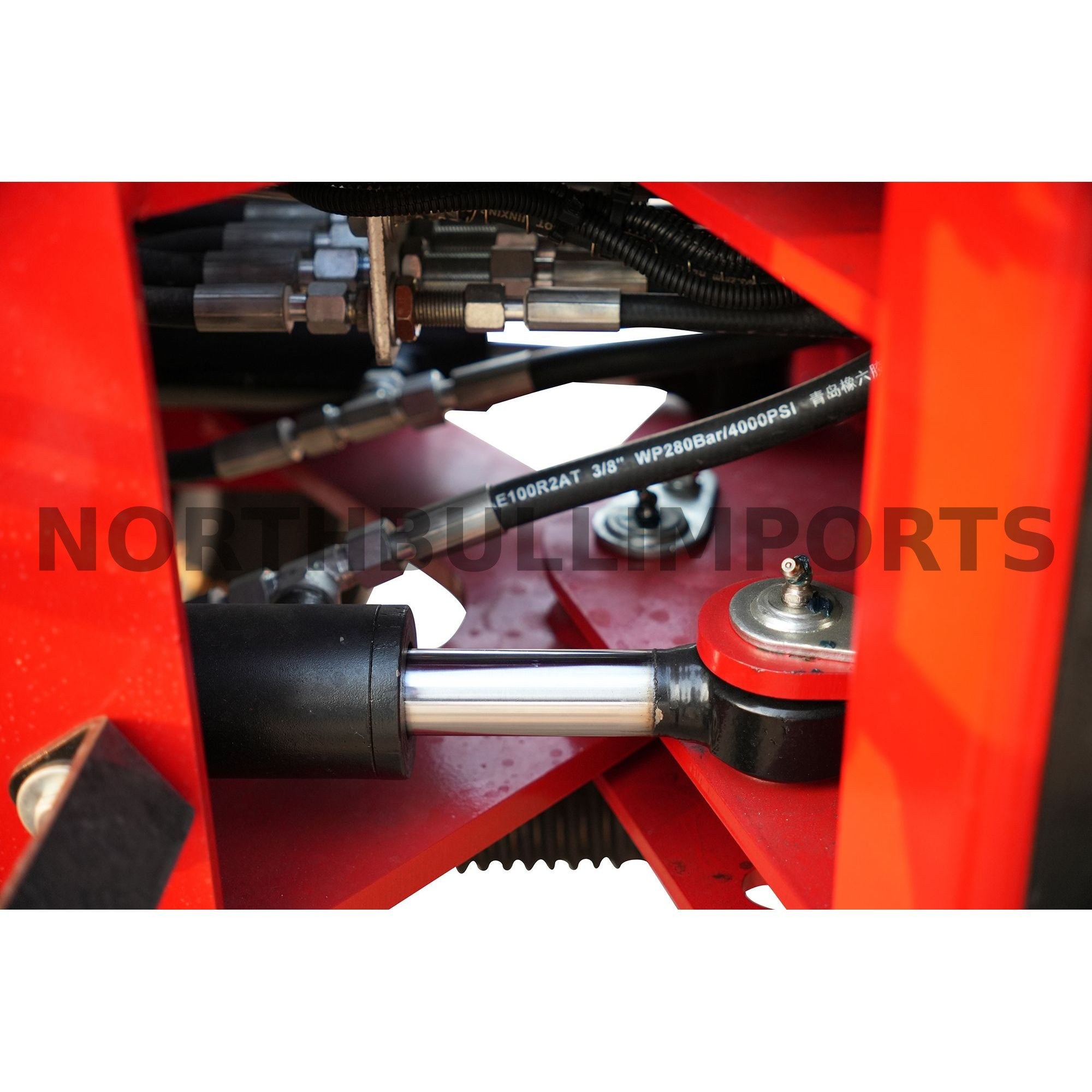

Hydraulics

  • Hydraulic oil quantity (L): 10
  • Hydraulic working pressure (bar): Work hydraulics 160, Drive hydraulics 200
  • Main hydraulic pump type: Dual gear pump
  • Main hydraulic pump model: 7,5 x 7,5
  • Main hydraulic pump flow (L/min): 18 (drive circuit) and 18 (work hydraulics)
  • Number of hydraulic pumps: 2
  • Changeable hydraulic oil filter: Yes
  • Hydraulic oil cooler as standard: Yes

Front loader hydraulics

  • Auxiliary hydraulics included: Yes
  • Auxiliary hydraulic connector type: Quick connectors
  • Auxiliary hydraulics oil flow (L/min): 18
  • Number of connection hoses: 2
  • Where controlled from: Mechanical lever
  • Automatic leveling: Yes
  • Loader arm floating function included: No (optional accessory)
  • Loader control type: Joystick, mechanical valve

Backhoe hydraulics

  • Auxiliary hydraulics included: Yes
  • Auxiliary hydraulic connector type: Thread
  • Auxiliary hydraulics oil flow (L/min): 18
  • Number of connection hoses: 2
  • Where controlled from: Mechanical lever

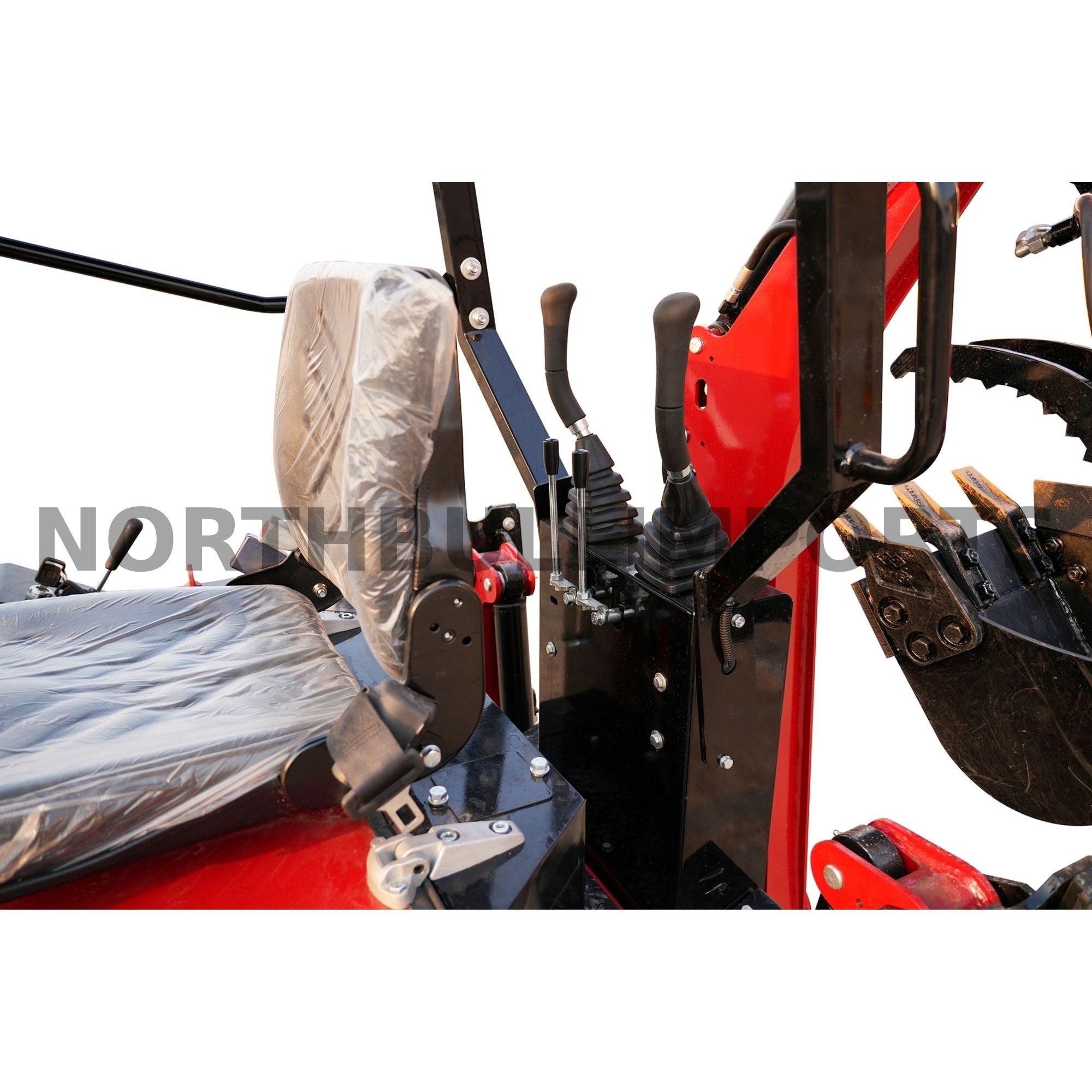

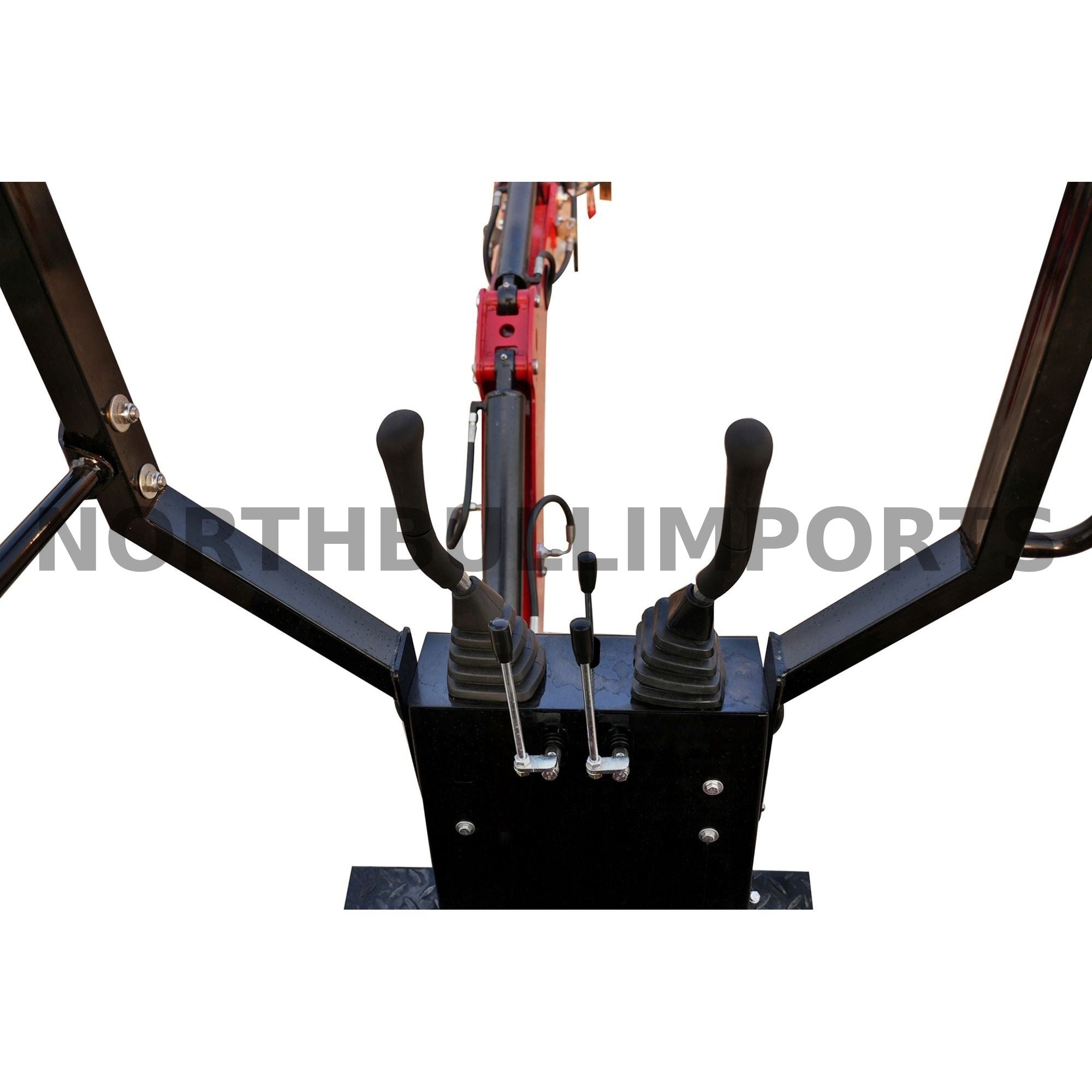

  • Control type: Mechanical control (levers in front)
  • Control valve type (regular / load sensing): Regular

Brakes

  • Front brakes type (oil / mechanical): Oil brakes
  • Front brakes structure (drum / disc): Drum brakes
  • Rear brakes type (oil / mechanical): Oil brakes
  • Rear brakes structure (drum / disc): Drum brakes
  • Parking brake structure (drum / disc): Drum brake
  • Parking brake operation (mechanical / electric / hydraulic): Mechanical

Electrical system

  • Electric system voltage (V): 12
  • Battery type: Lead-acid
  • Battery capacity (Ah): 45
  • Electric system shortcut protection: Yes
  • Main disconnect switch / emergency cut-off: Yes
  • Front and rear turn signals: Yes
  • Low beam / high beam headlights: Yes
  • Horn: Yes
  • Reverse lights: Yes
  • Rear brake lights: Yes

Tires and wheels

  • Wheel type (tubeless / with inner tube): Tubeless
  • Wheel size: 23 x 8,5 / 12
  • Tread pattern of the standard tire: All-terrain

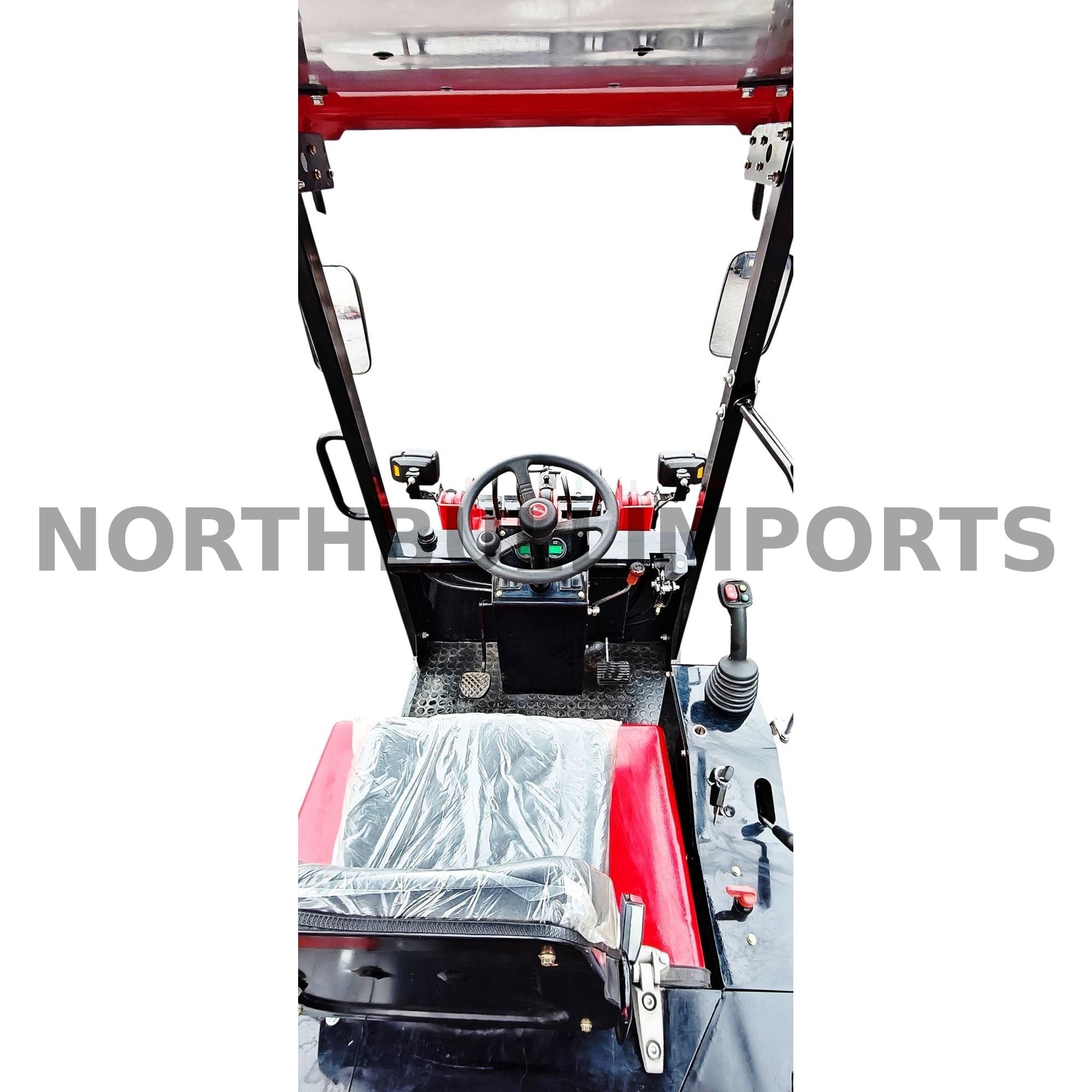

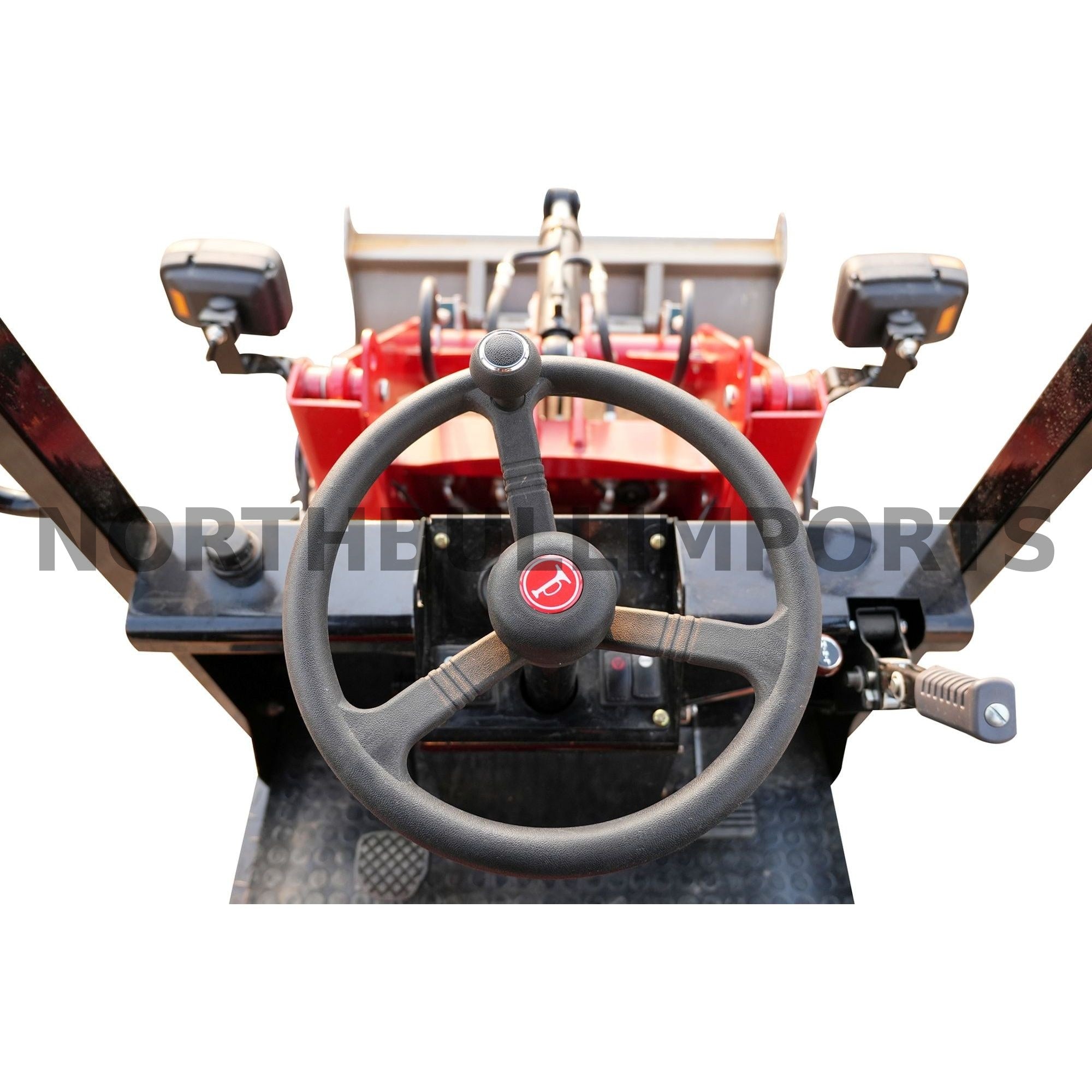

Dashboard and cabin

  • Canopy type: Safety frame
  • Working lights included in canopy: Yes
  • Seat model: Adjustable, 360 rotation
  • Seatbelt: Yes
  • Hour meter: Yes
  • Coolant temperature gauge: Yes
  • Motor oil temperature gauge: No
  • Driving speed meter: No
  • 12V output socket in cockpit: No
  • Fire extinguisher included: No
  • Steering wheel adjustment: No adjustment
  • Closed cabin included: Not available

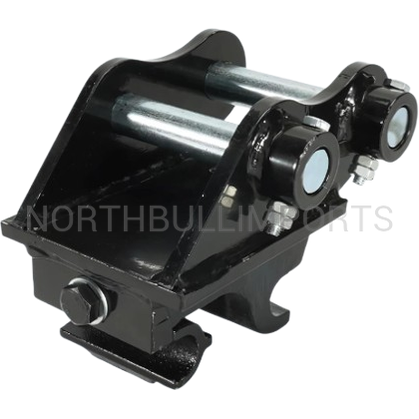

Attachment coupling dimensions

  • Attachment coupling type: EURO
  • Front loader standard bucket width (mm): 1150
  • Front loader hydraulic quick hitch included: Yes
  • Backhoe pin distance, inner (mm): 60
  • Backhoe pin distance, outer (mm): 110
  • Backhoe pin width, mounting area (mm): 94
  • Backhoe pin diameter (mm): 25
  • Backhoe standard bucket width (mm): 400

Dimensions and structure

  • Overall length, without attachment (mm): 3530
  • Overall length, with standard bucket (mm): 3930
  • Overall width with standard tyres (mm): 1150
  • Overall height with canopy, if included (mm): 2200
  • Height without canopy (mm): 2150
  • Ground clearance (mm): 200
  • Wheelbase (mm): 1580
  • Rated operating capacity (kg): 2000
  • Turning radius without attachment, outside (mm): 3100
  • Seating height (mm): 1230
  • Tow hook included: No
  • Rated max towing load (kg): 500
  • Operating weight (kg): 1500

Delivery and packaging

  • Estimated product manufacturing time (days): 20
