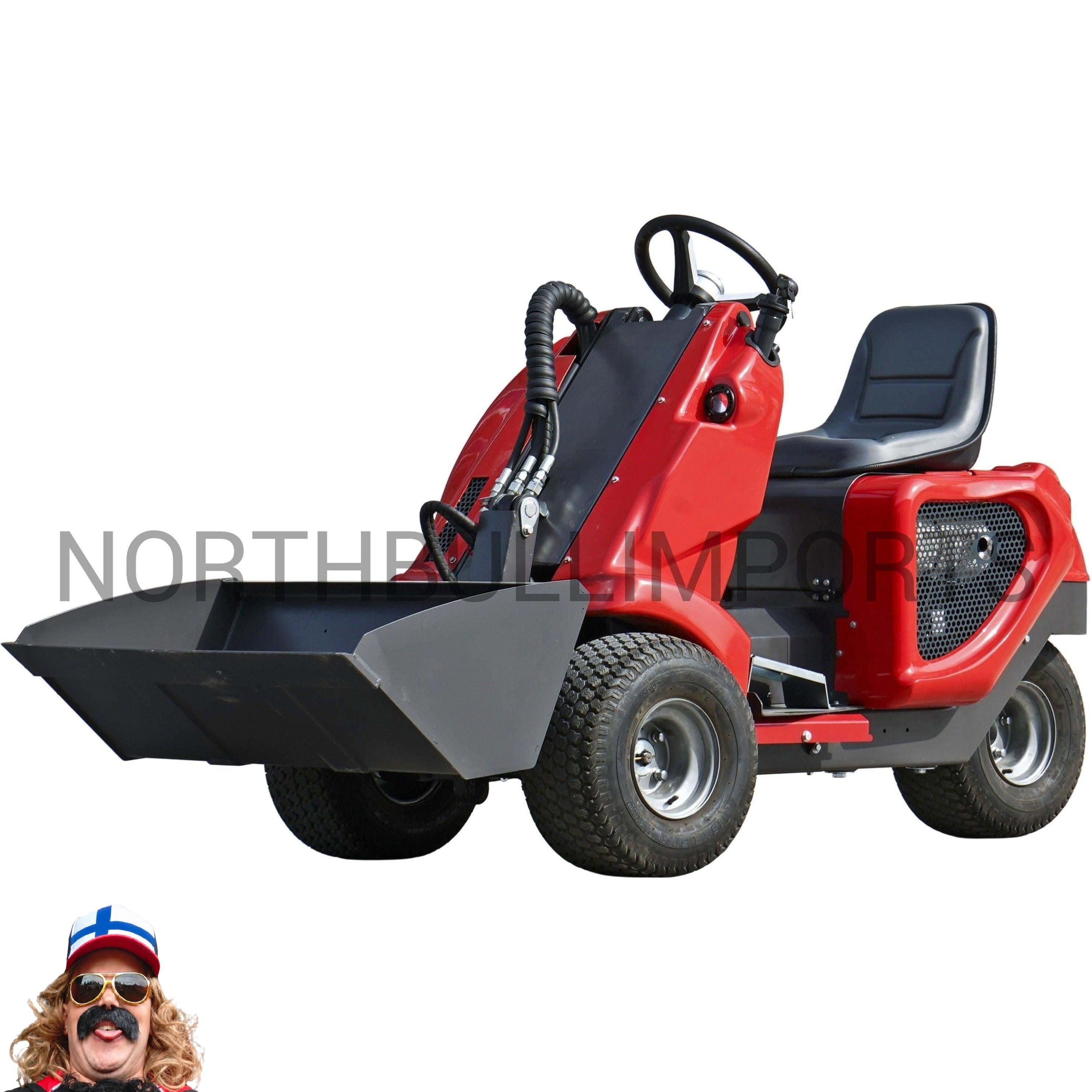

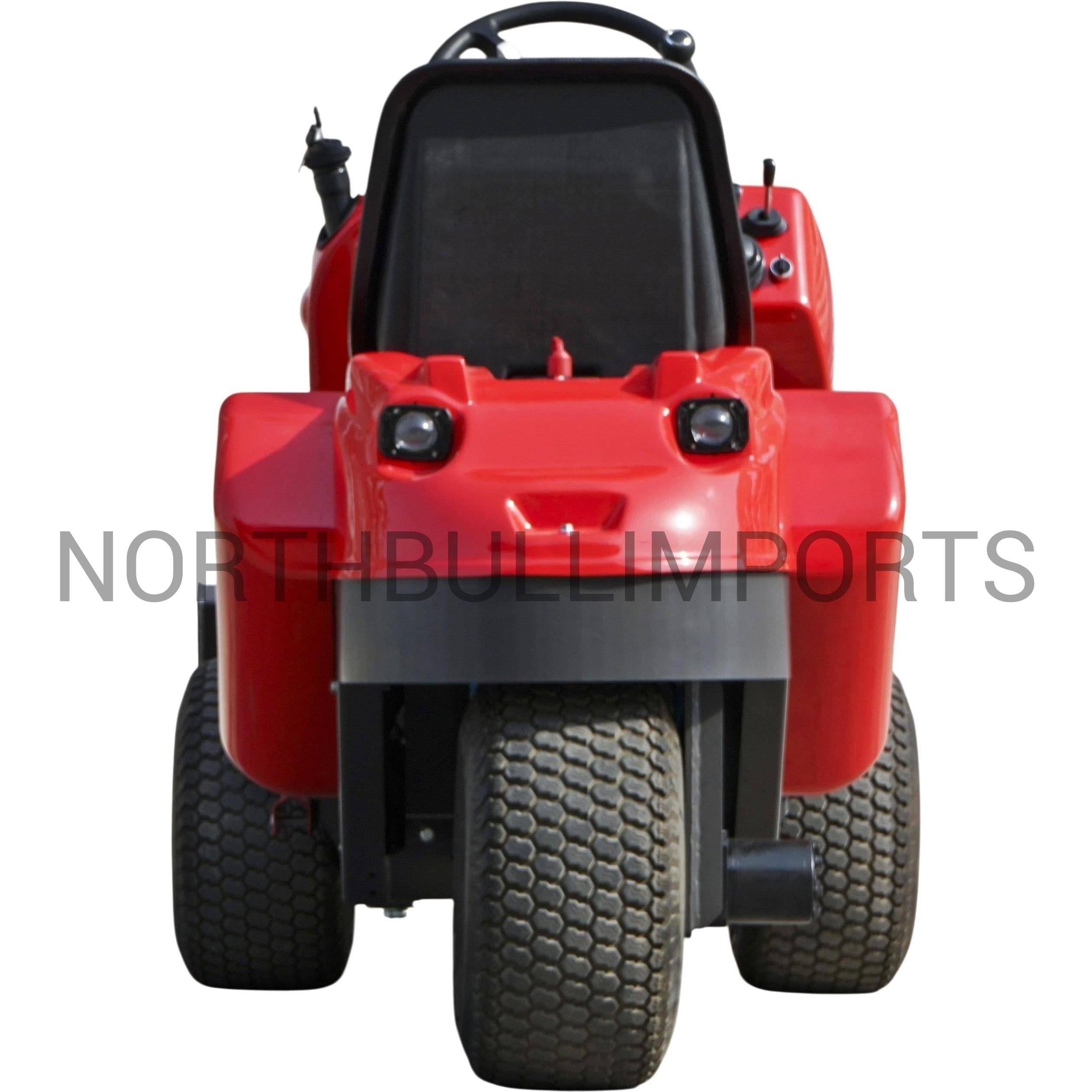

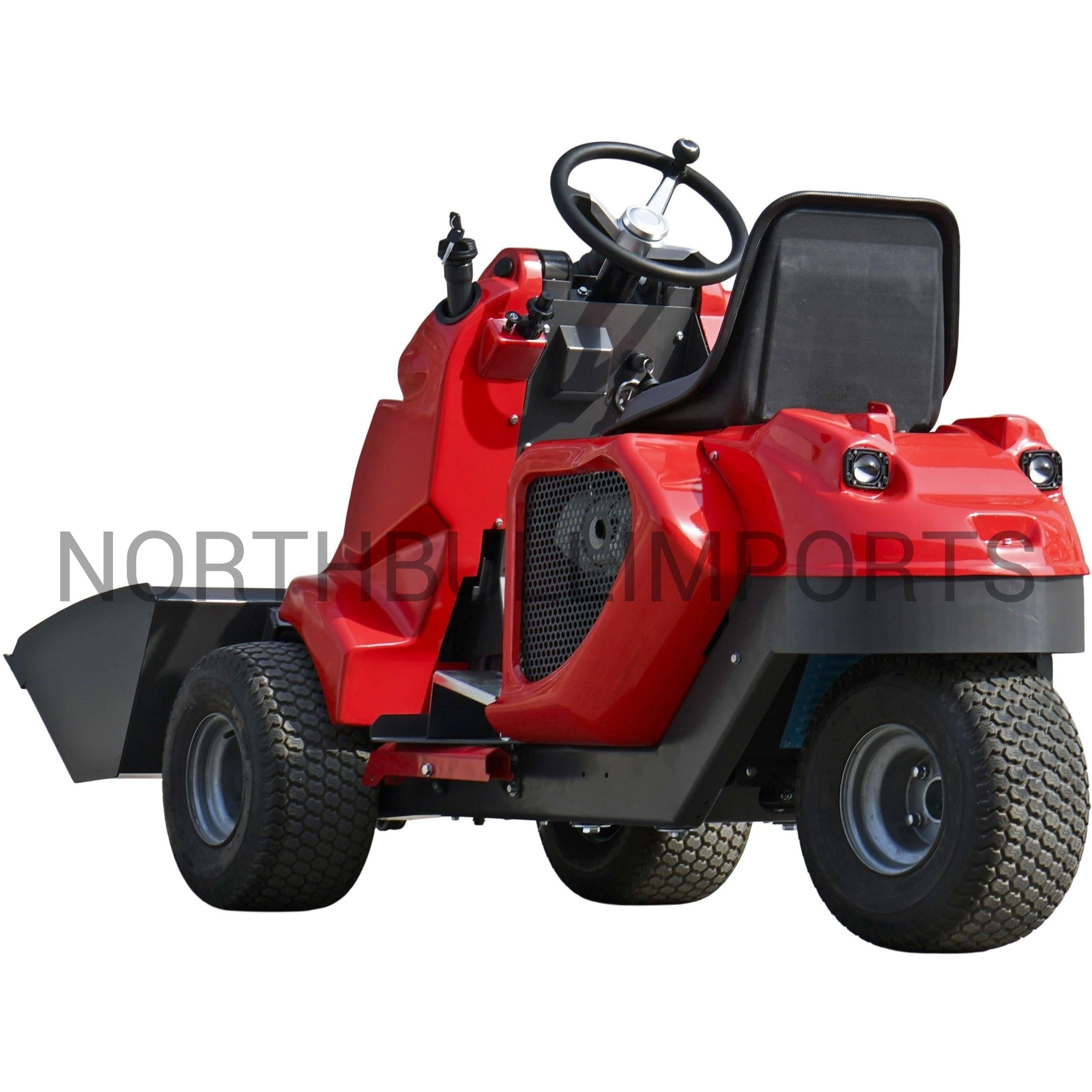

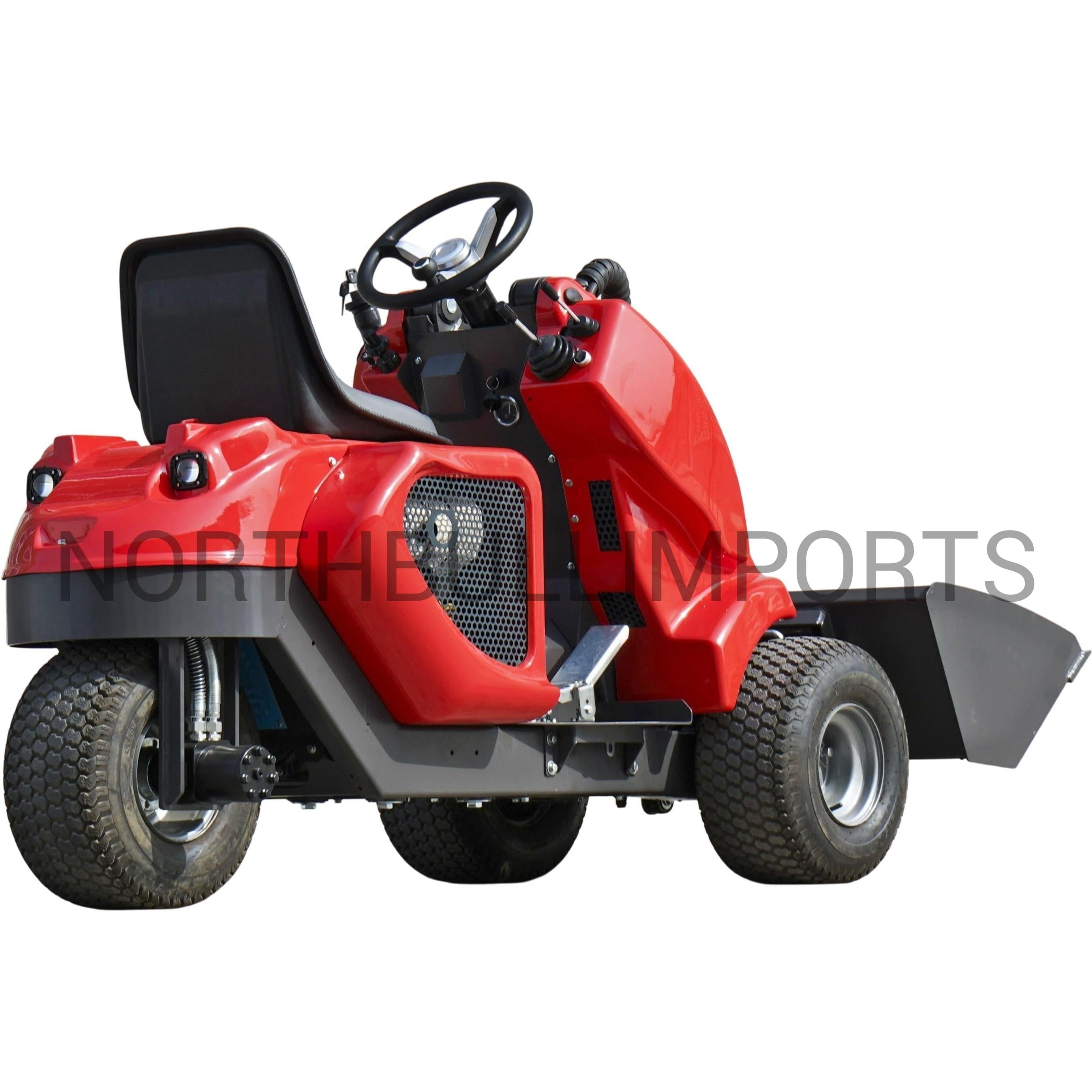

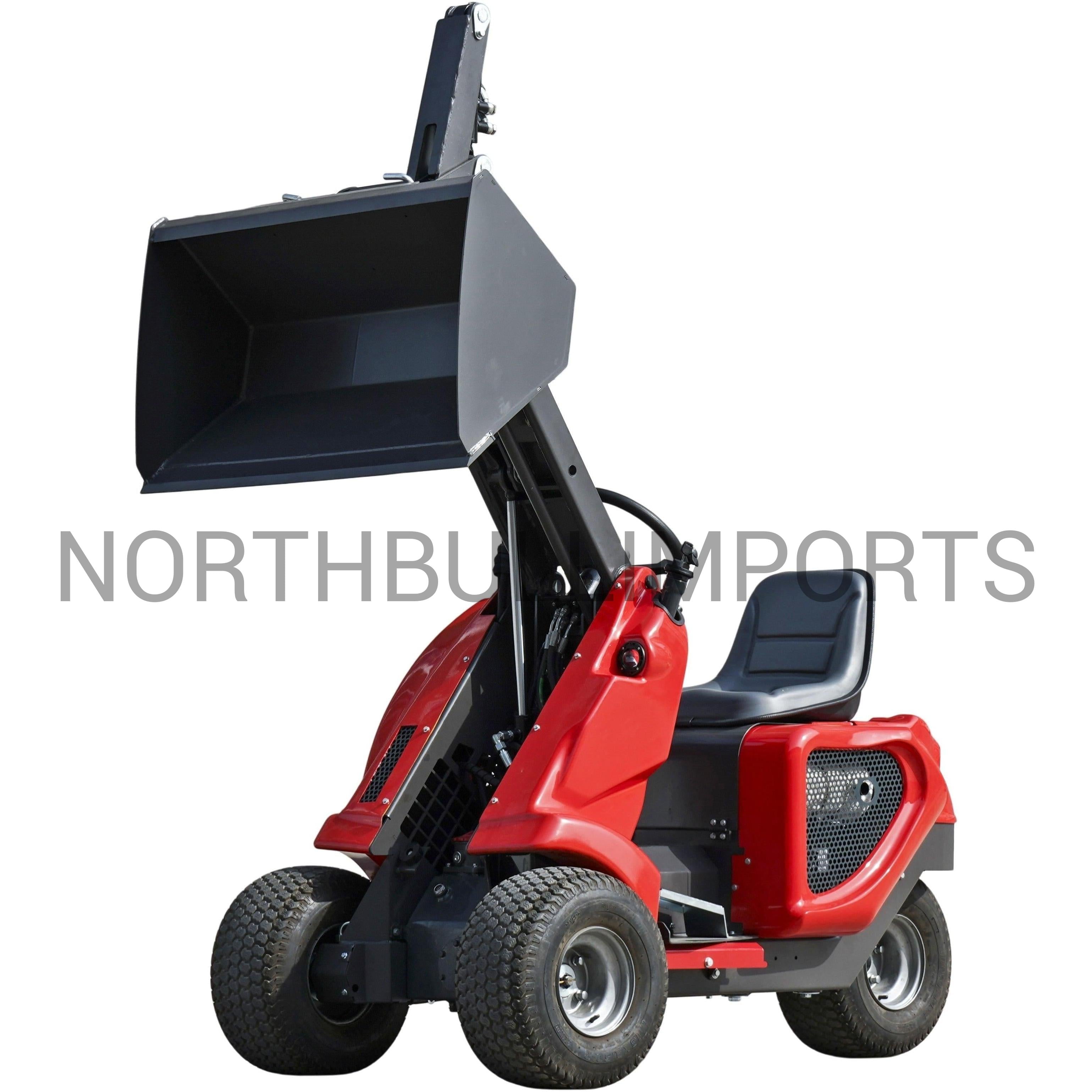

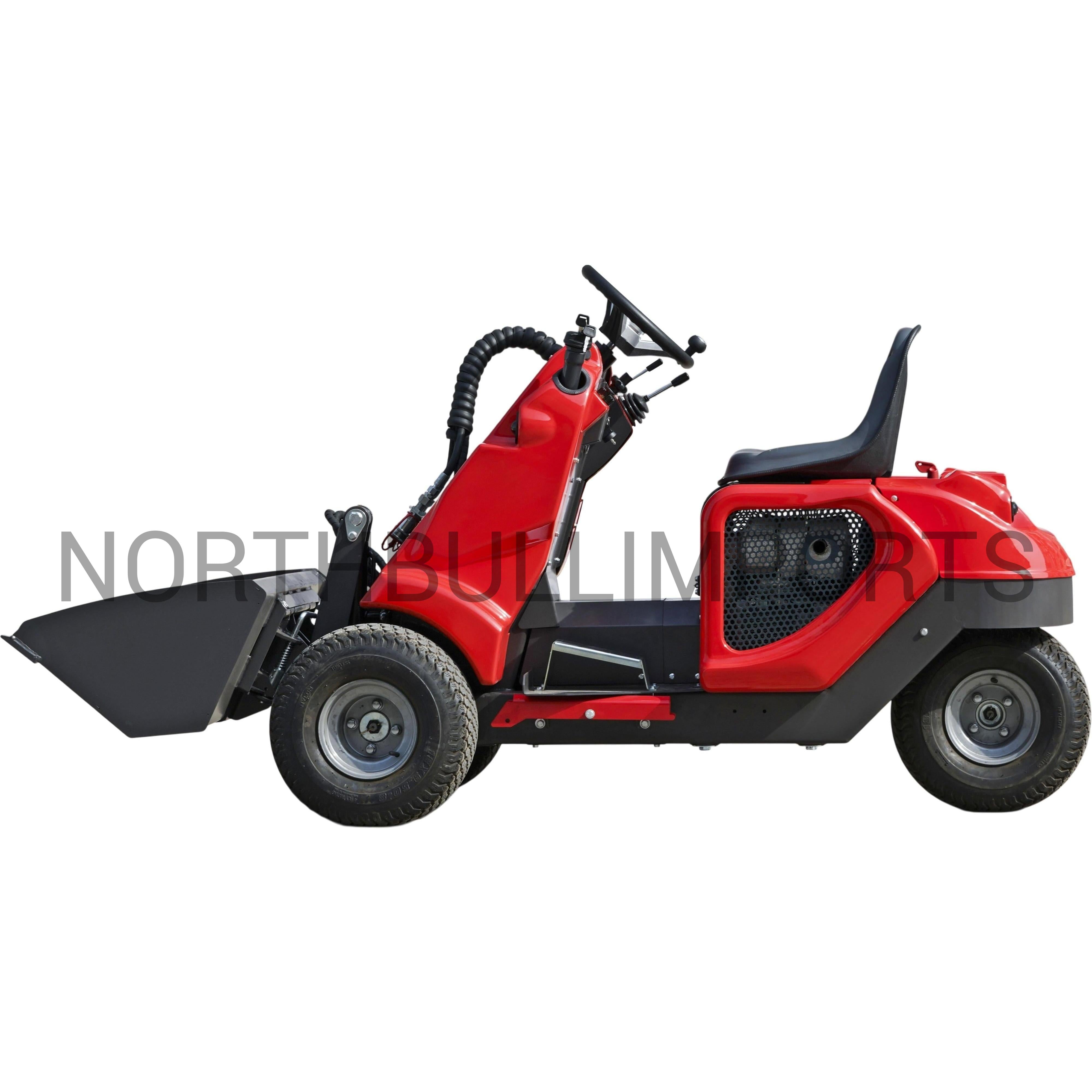

H130 mini loader

Regular price 3.713,41 € incl. VAT and customs | Shipping not included
🖨️ Print as PDF

Standard equipment includes:

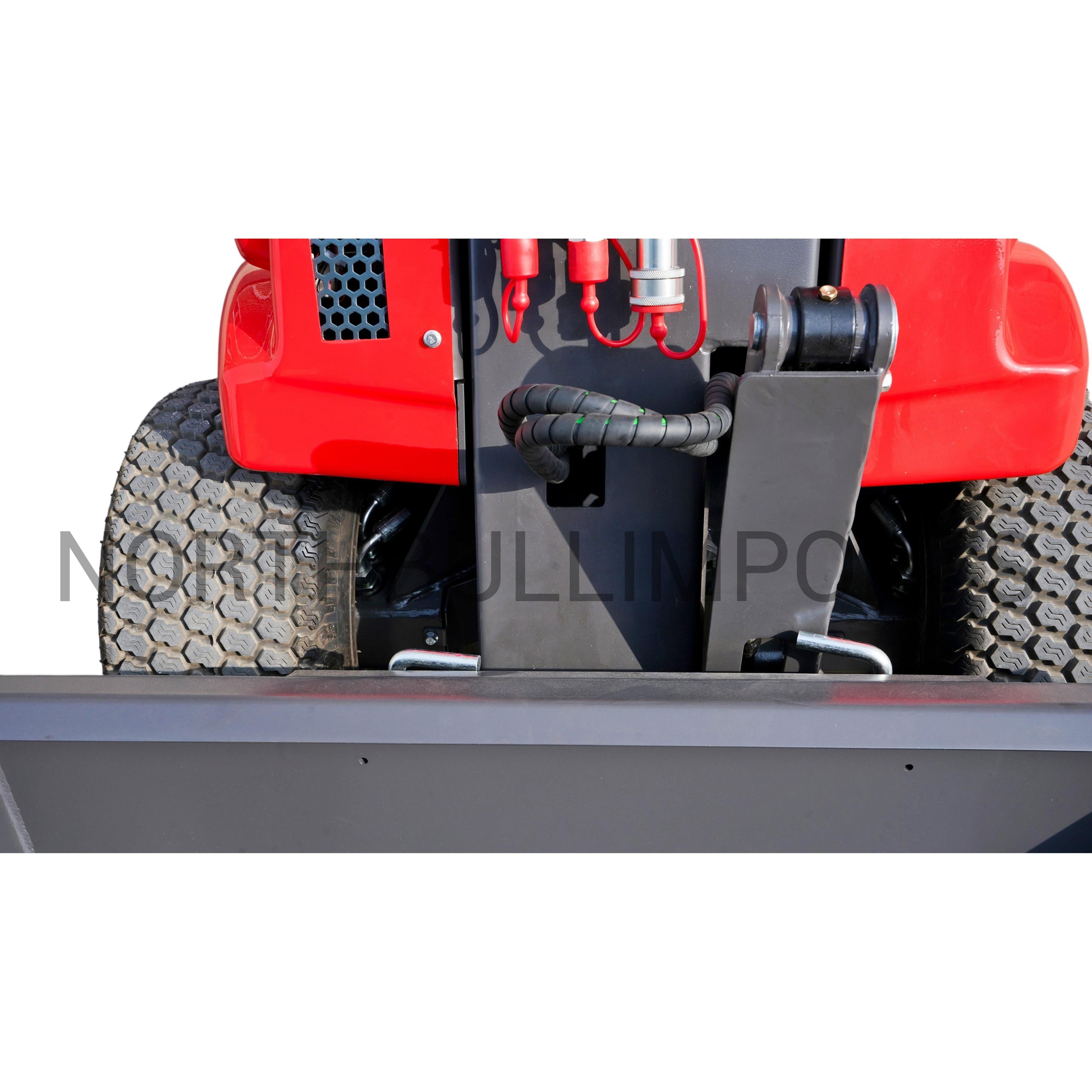

  • Avant 300-700 compatible quick hitch

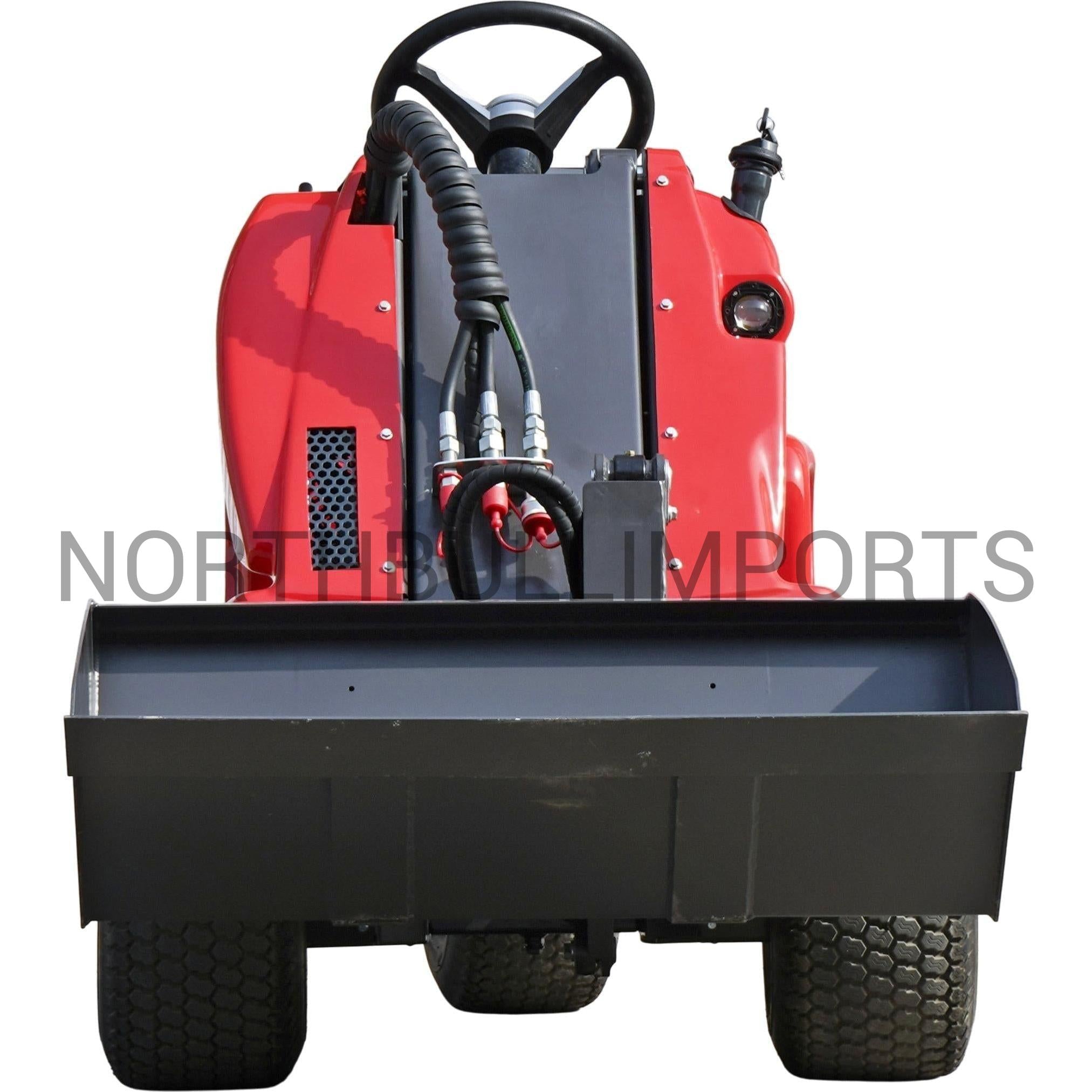

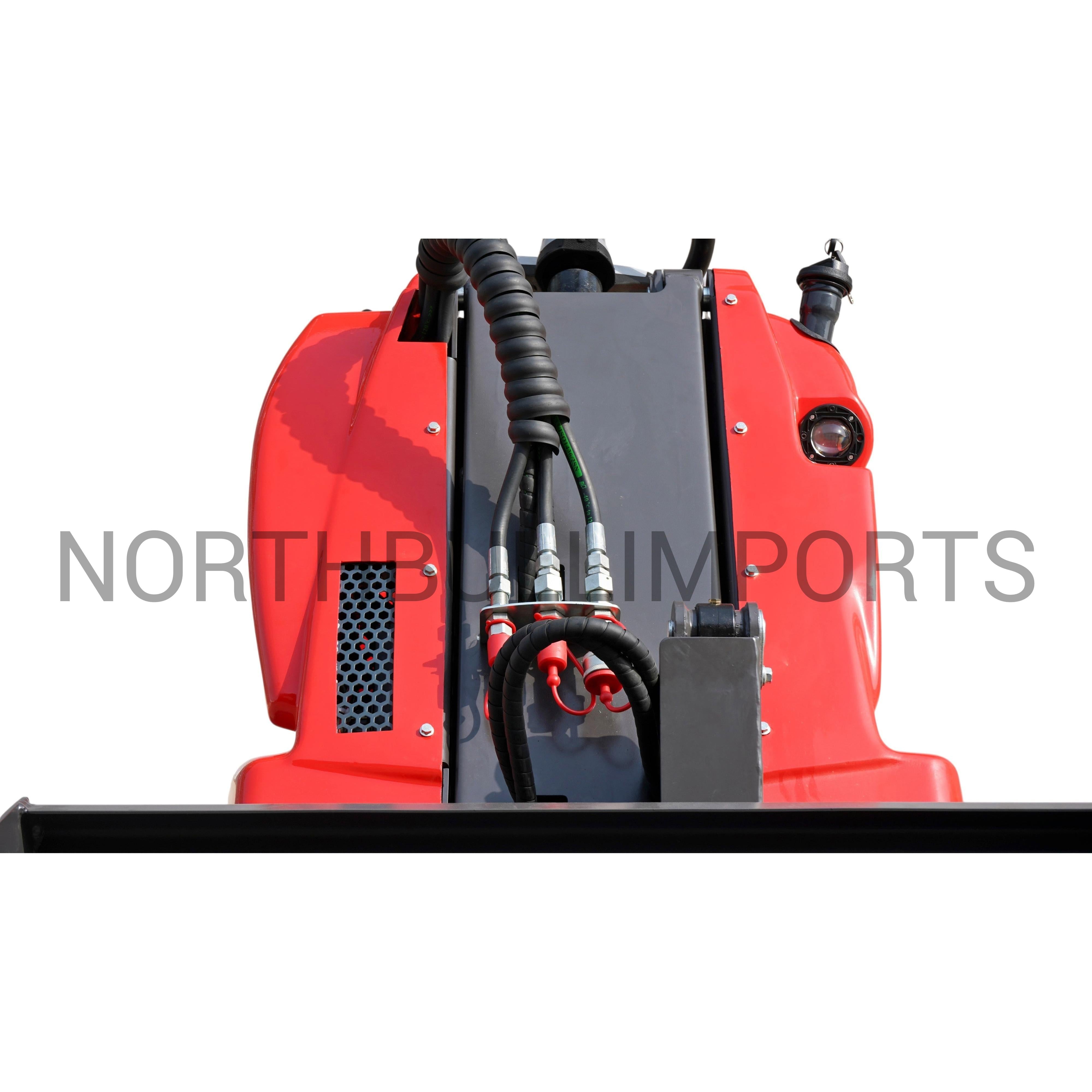

  • Auxiliary hydraulics with flat face-quick couplers
  • Hydrostatic drive
  • Parking brake

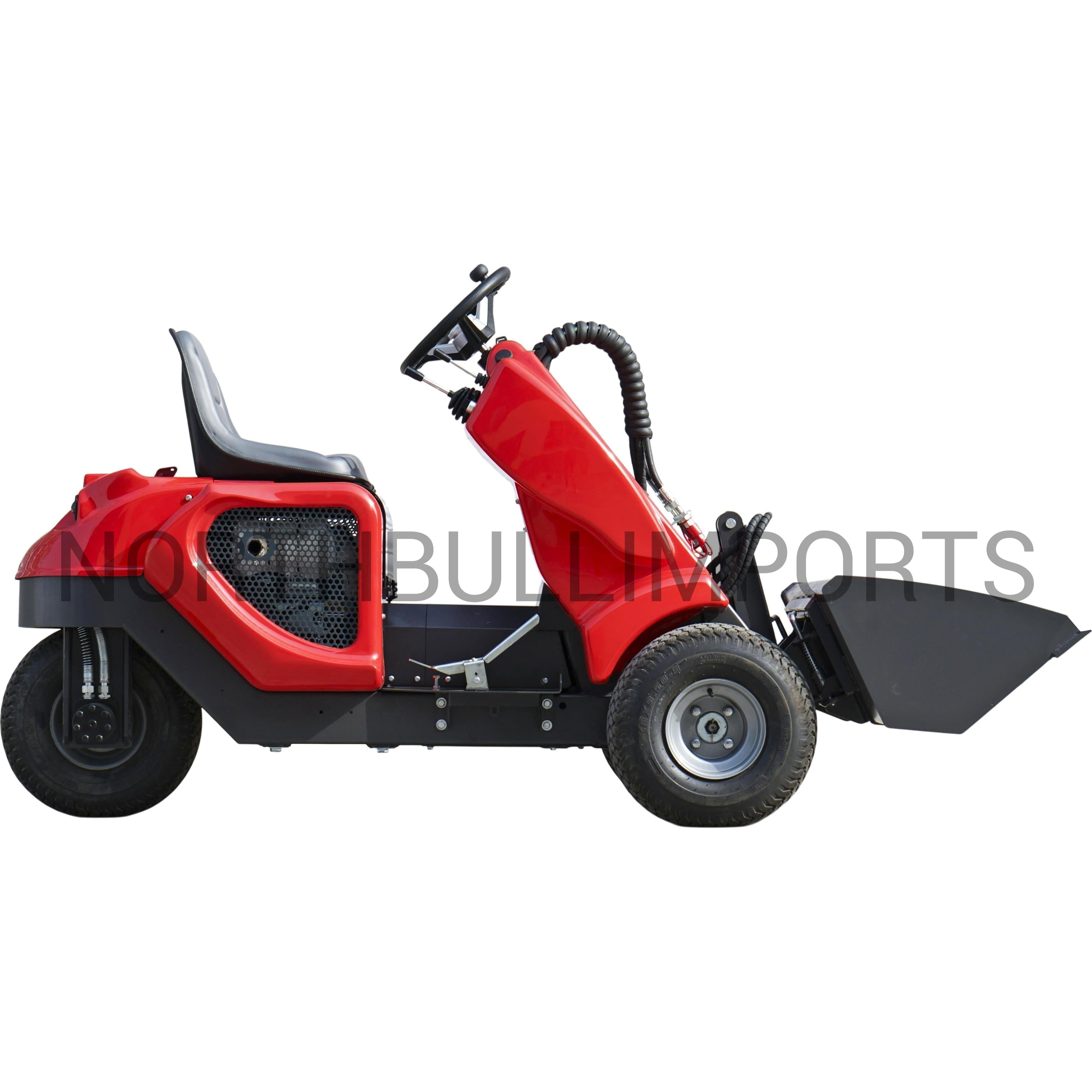

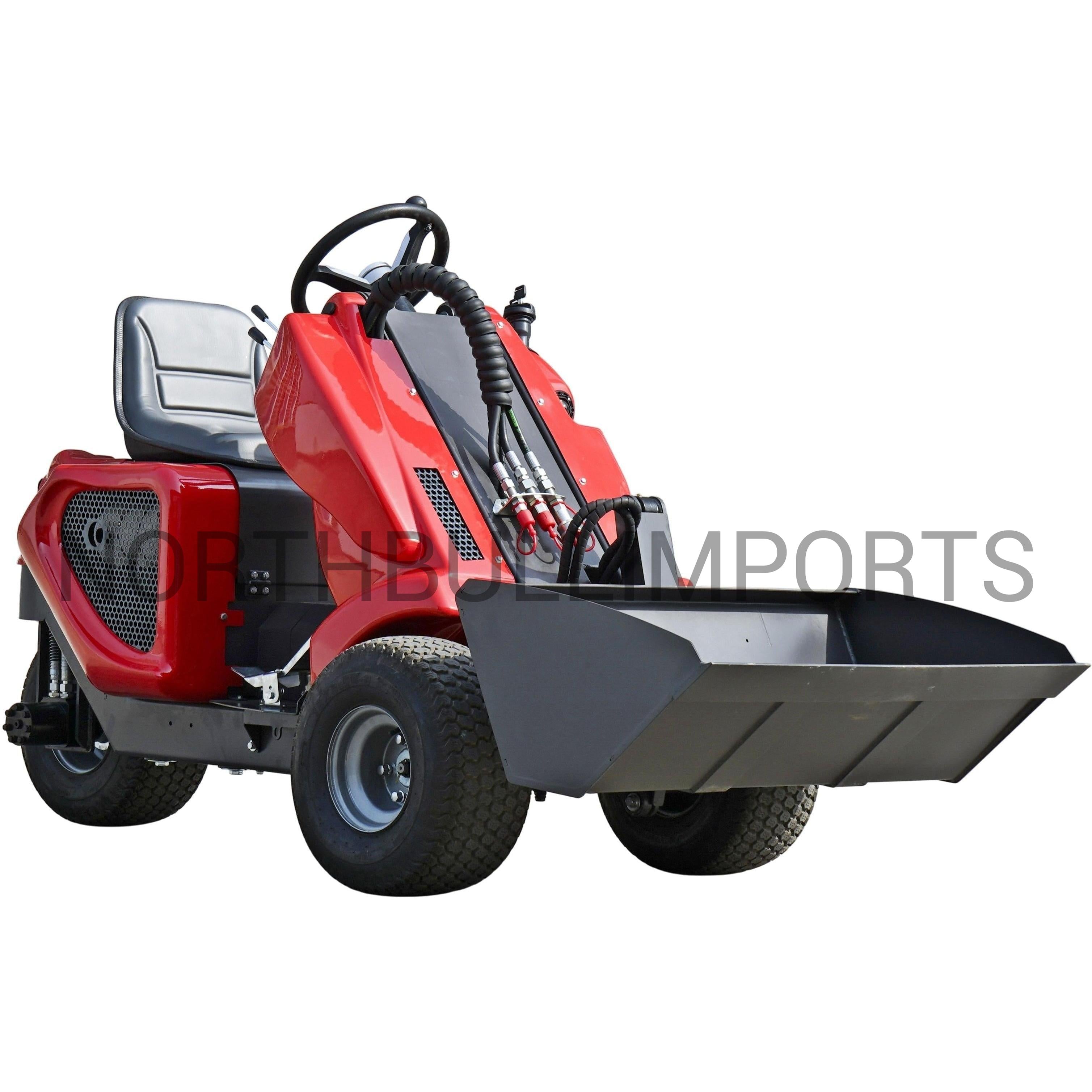

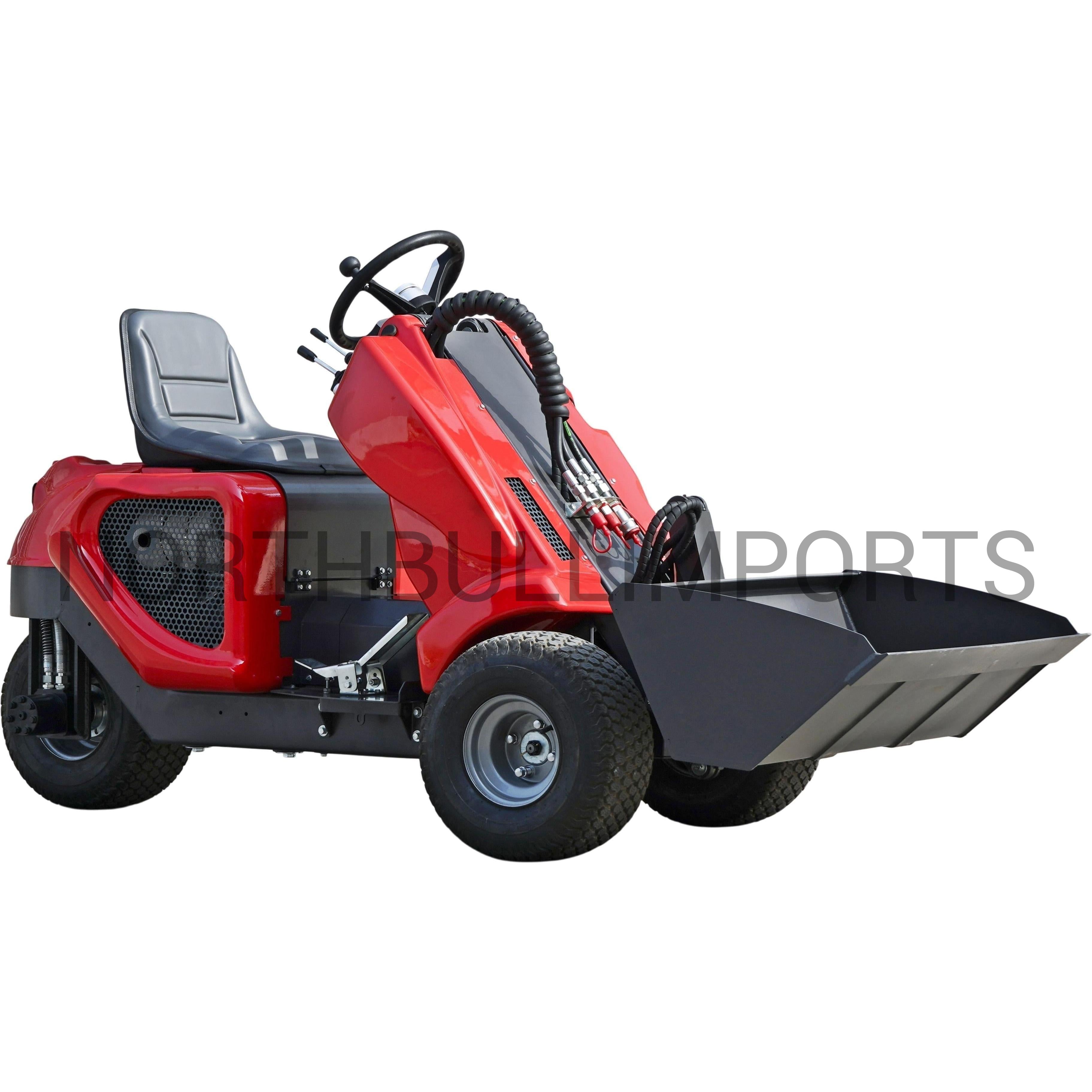

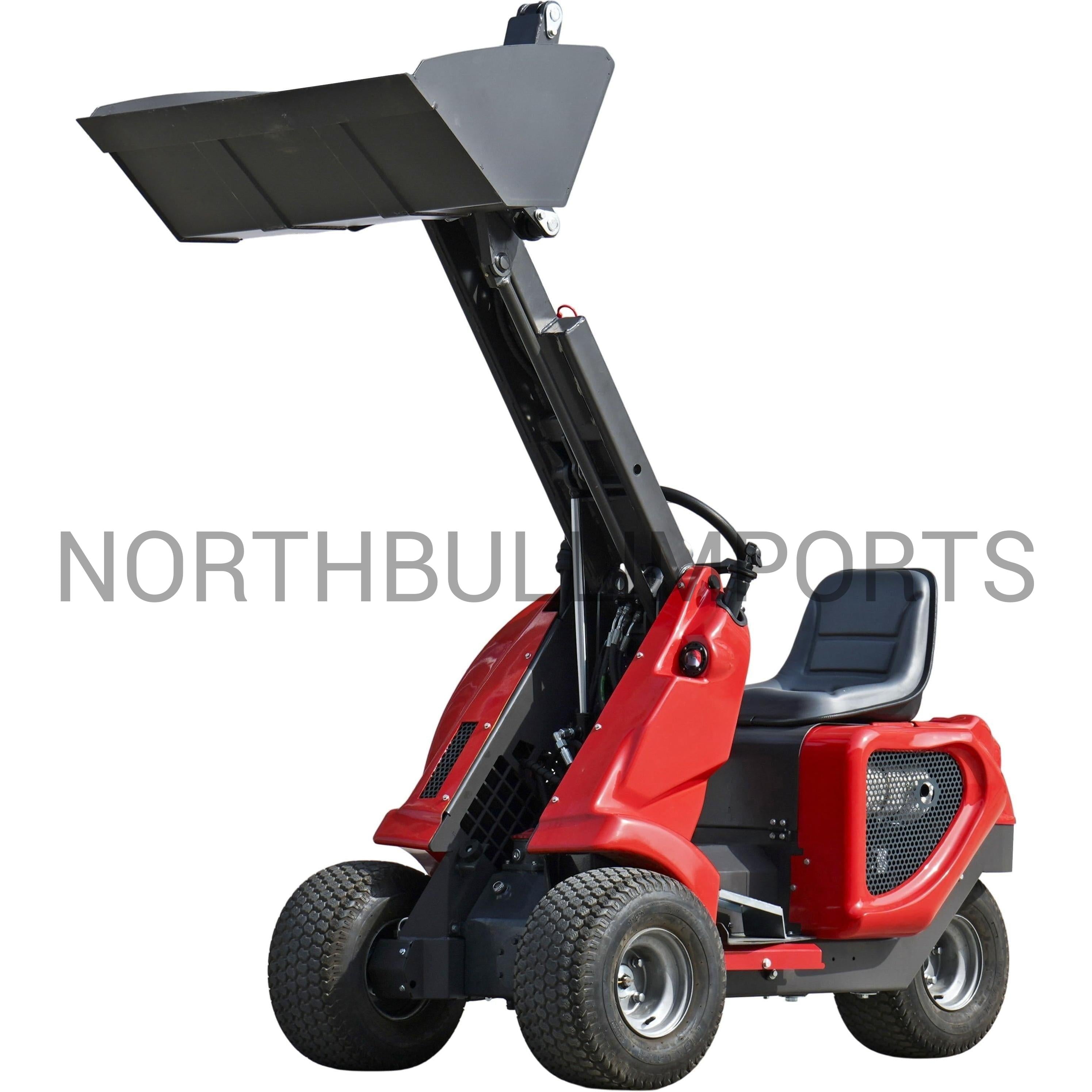

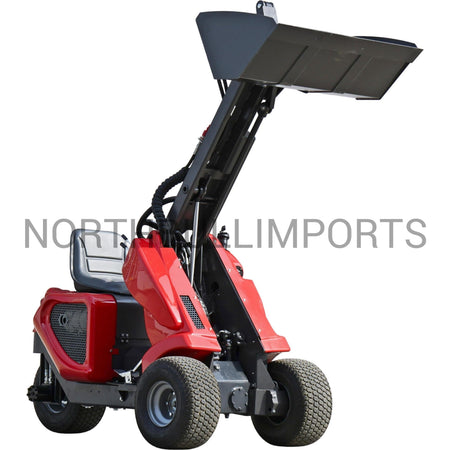

H130 Mini Loader – small in size, but a big help in everyday work

The H130 is a compact and agile 3-wheel mini loader built specifically for tight spaces, yard work, and personal projects. It is easy to drive, easy to use, and does not feel heavy or intimidating even for a first-time user. Exactly the kind of machine you can hop on without feeling like you need nerves of steel.

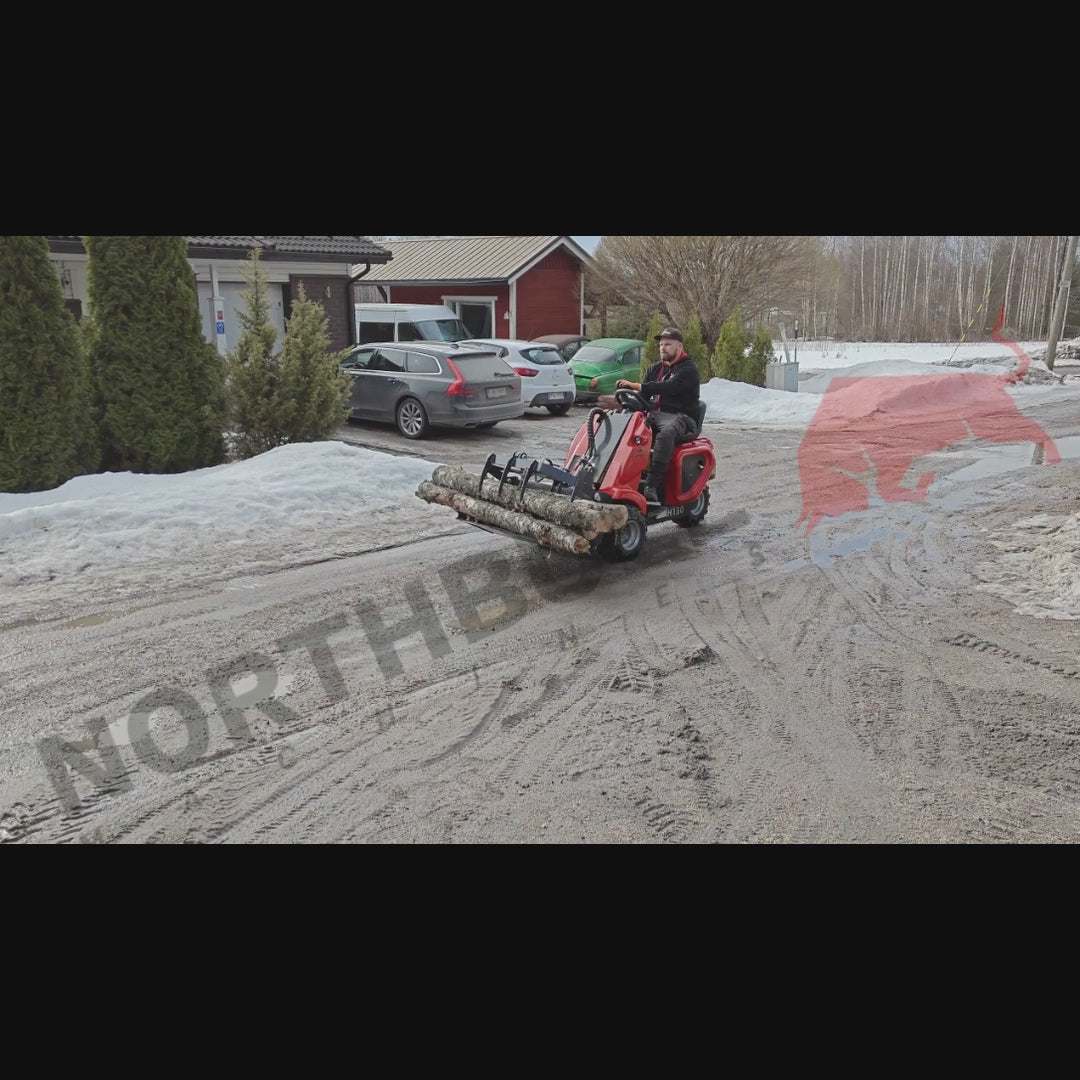

The H130 is a lightweight but surprisingly versatile workhorse that is ideal for things like yard maintenance, moving materials, lifting logs, snow clearing, garage and property jobs, and all kinds of tasks around the home. It has also been especially popular in places like horse stables, as well as for smaller yards, levelling work, and snow removal. Thanks to its compact size, it can go where larger machines simply become a nuisance.

Small size, easy to use

The biggest strength of the H130 is how approachable it feels. The machine is low, clear, and easy to control, so using it feels natural even for someone who has never driven a work machine before. The 3-wheel design makes it agile and nimble in tighter spaces, while the hydrostatic drive makes operation smooth and straightforward.

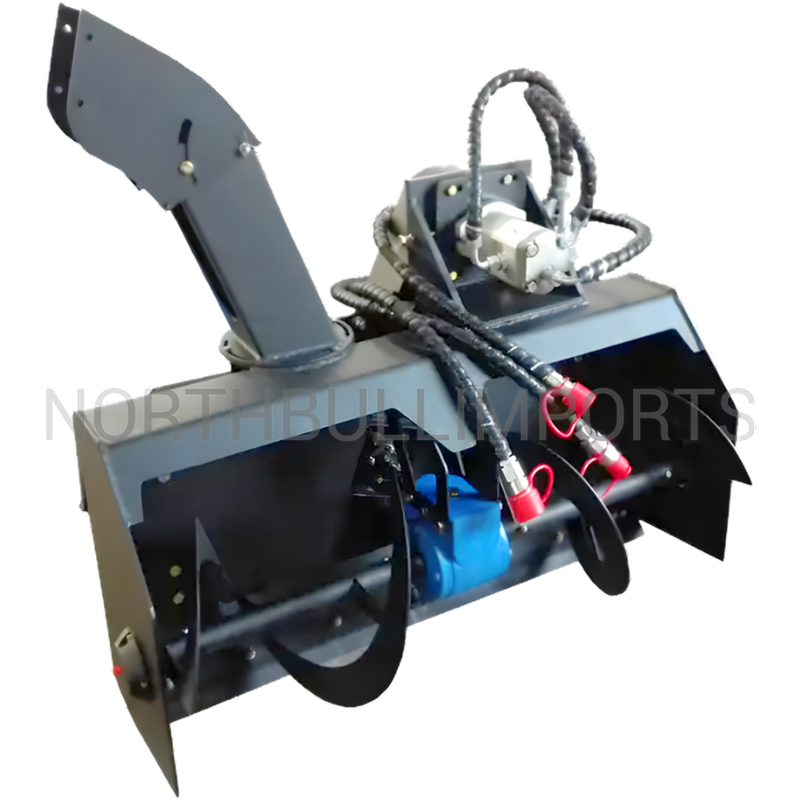

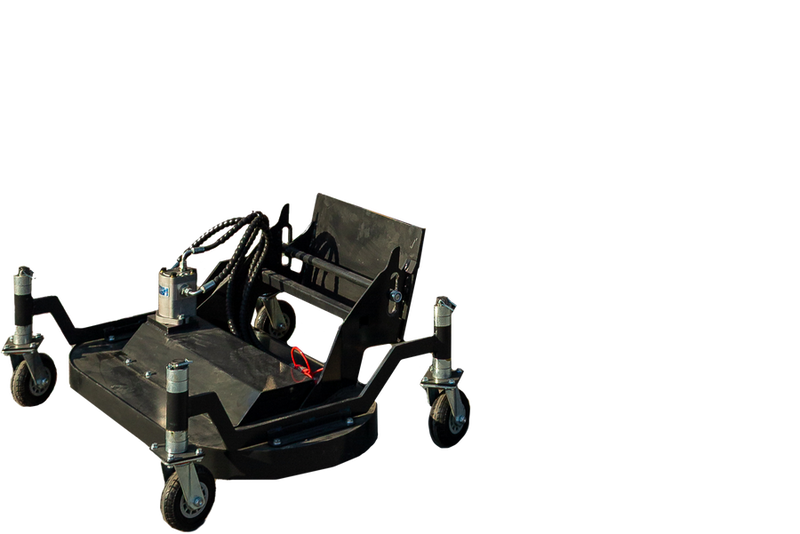

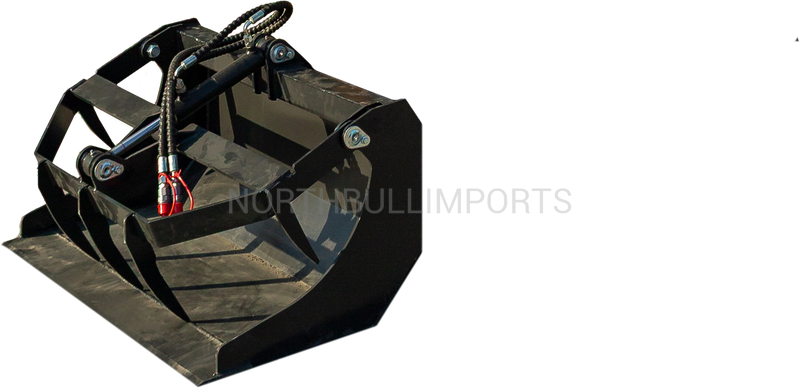

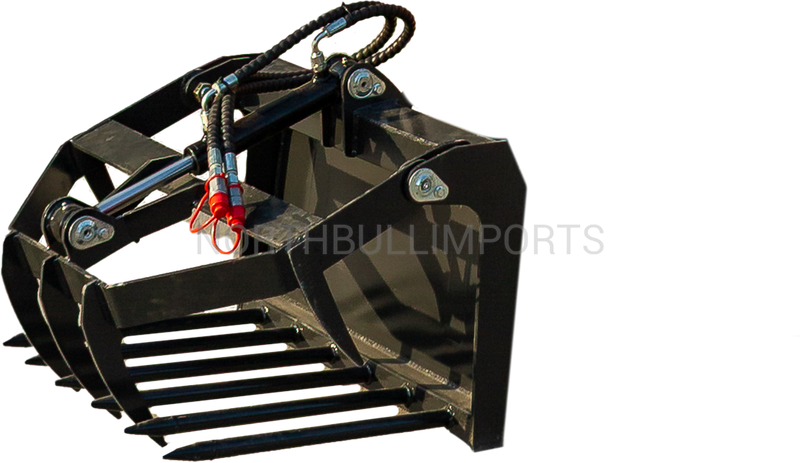

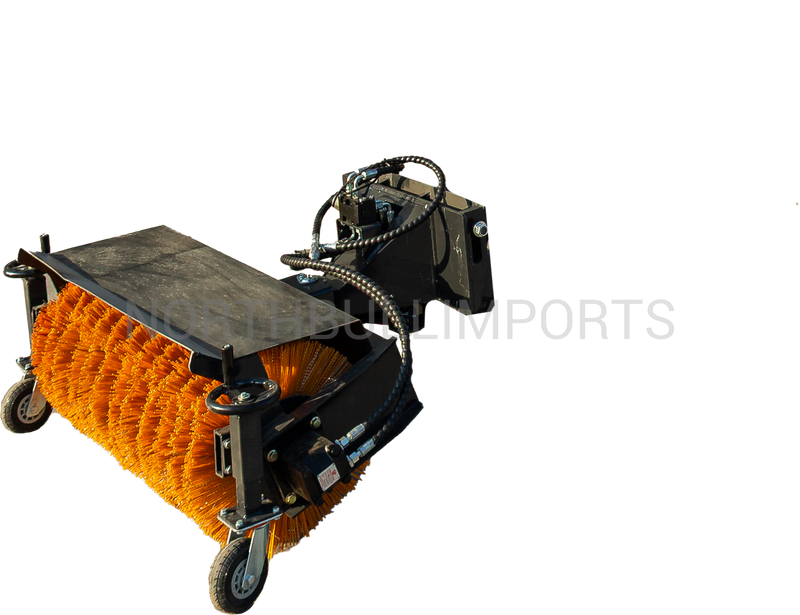

Versatile machine with attachments

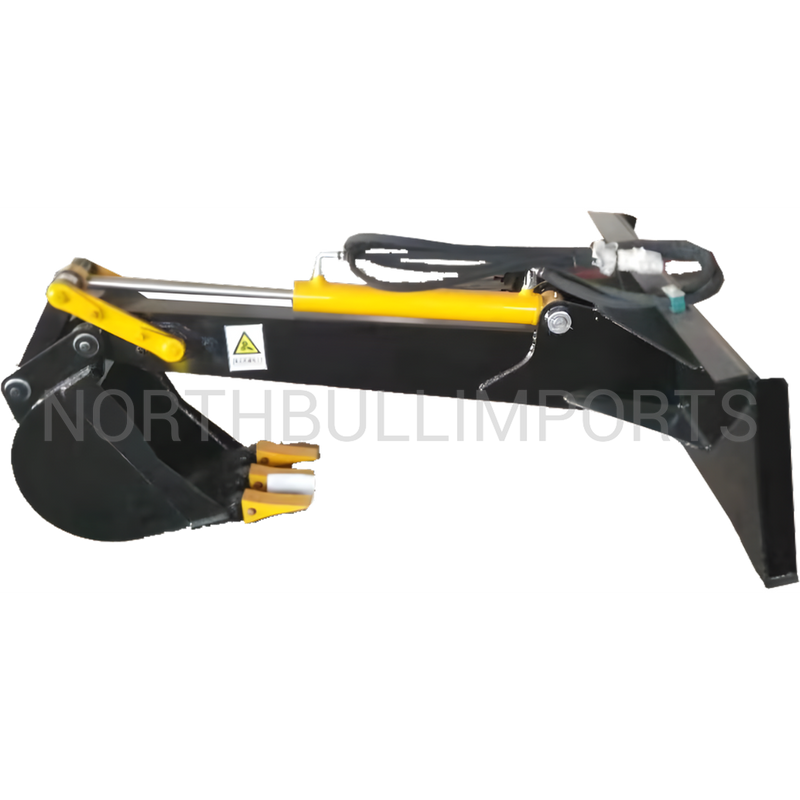

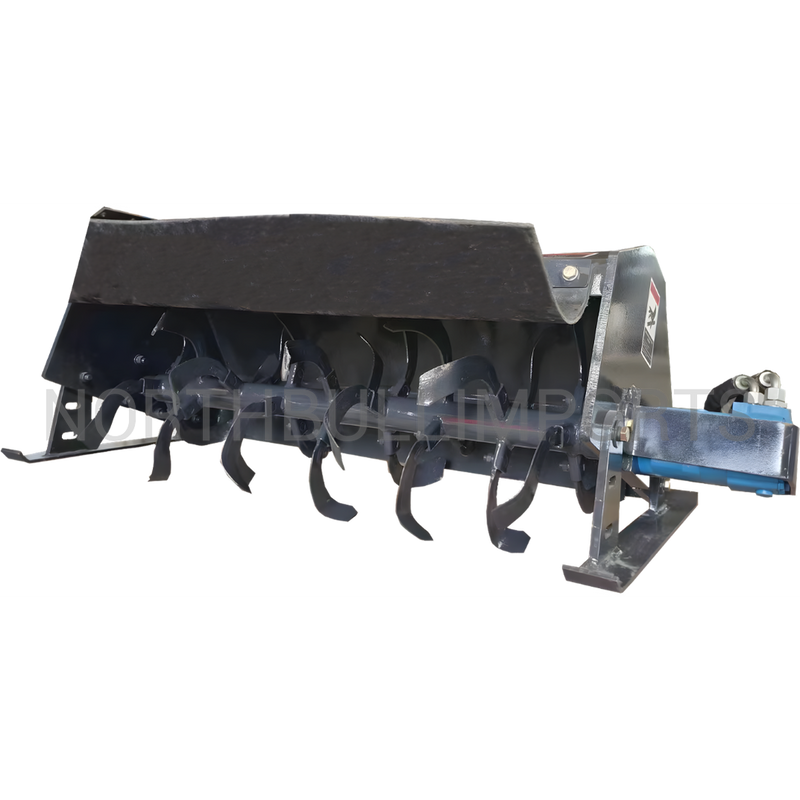

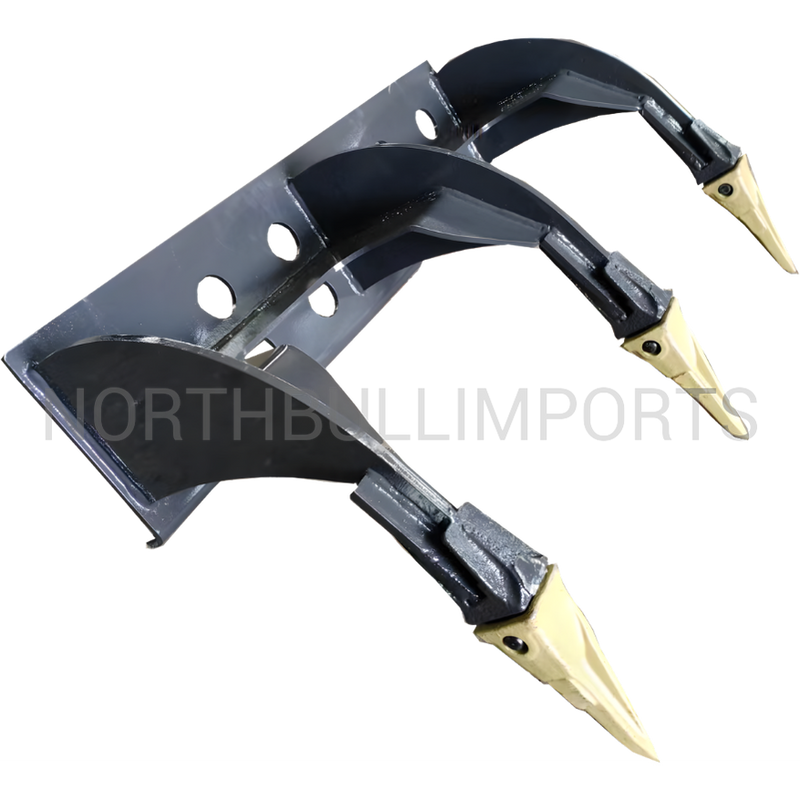

The H130 is not just a one-task machine. It is available with a wide range of attachments and optional equipment, allowing you to configure it to suit your own needs. That makes it a very practical choice if you want one machine that can handle as many different jobs as possible without having several separate machines taking up space.

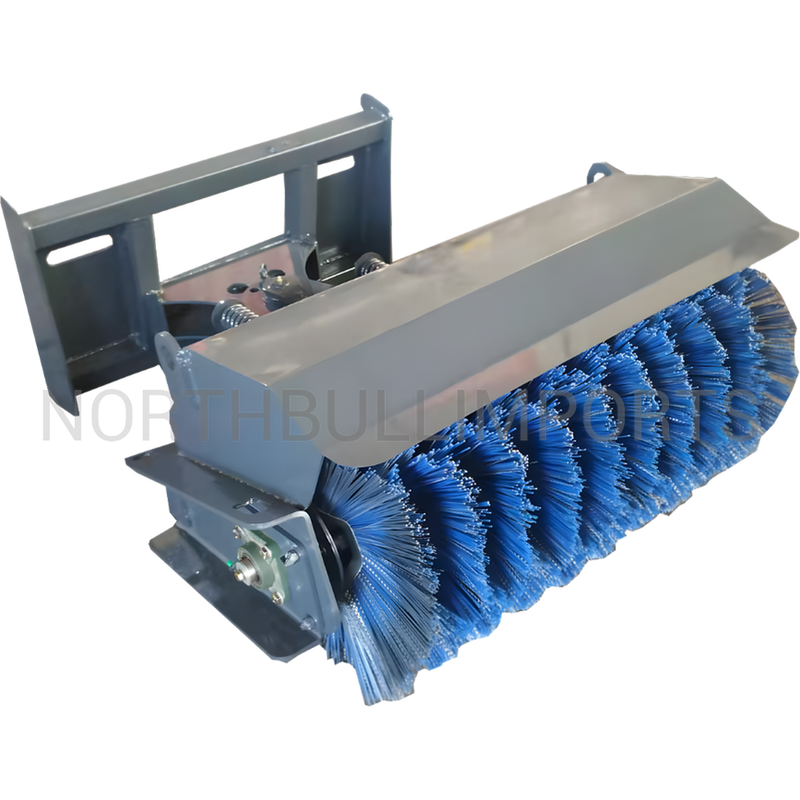

With the right setup, the H130 is well suited for lifting, moving, clearing, sweeping, loading, and general property work throughout the year.

Easy to own and easy to transport

Thanks to its lightweight structure, the H130 is also easy to move from place to place. It can be transported conveniently on a trailer and is a smart choice when you want a machine that is practical, easy to approach, and genuinely useful in everyday life.

Why choose the H130?

  • Compact 3-wheel mini loader for tight spaces
  • Easy to drive and operate, also suitable for first-time users
  • Excellent for yard work, wood handling, snow clearing, and home projects
  • Especially popular for horse stables, smaller yards, levelling, and snow work
  • Wide range of attachments and optional equipment
  • Lightweight, agile, and easy to transport

How to order the product:

  1. Enter your address in the calculator and calculate the total price including delivery
  2. Choose the color of your product
  3. Choose the accessories and add-ons you want
  4. Add products to the shopping cart
  5. Go to shopping cart
  6. Pay for your purchase. We recommend ordering by invoice as a payment method.

Calculate Shipping Cost

Enter Address

Enter at least 5 characters to see address suggestions

Key attributes
Machine weight (kg): 480
Max lifting weight (kg): 350
Engine brand: B&S
Power (kW/hp): 10/13,5
Drive train (2WD / 4WD / full time 4WD): 3WD
Attachment coupling type: Avant 300-700 compatible
PDF button not found. Make sure the LitPDF app block is added to this product page.

We typically reply within 24 hours.

Delivery information
Estimated manufacturing time (days):
30
Estimated delivery time (weeks):
12
Freight indexation
Secure payments

Payments are secured with strong SSL encryption and PCI DSS data protection protocols.

Payment methods

We accept the most common debit and credit cards, as well as domestic online banking and invoice payments. You can also apply for financing for your purchases through our financing partner without obligation.


General information

  • Product type: Wheel loader
  • Product model: H130 Wheel loader
  • CE marking (yes/no): Yes
  • Warranty: 1 year
  • User manual in Chinese / English (yes / no): Yes (Chinese and English)

Performance

  • Max lifting weight (kg): 350
  • Dump Angle (degrees): 56

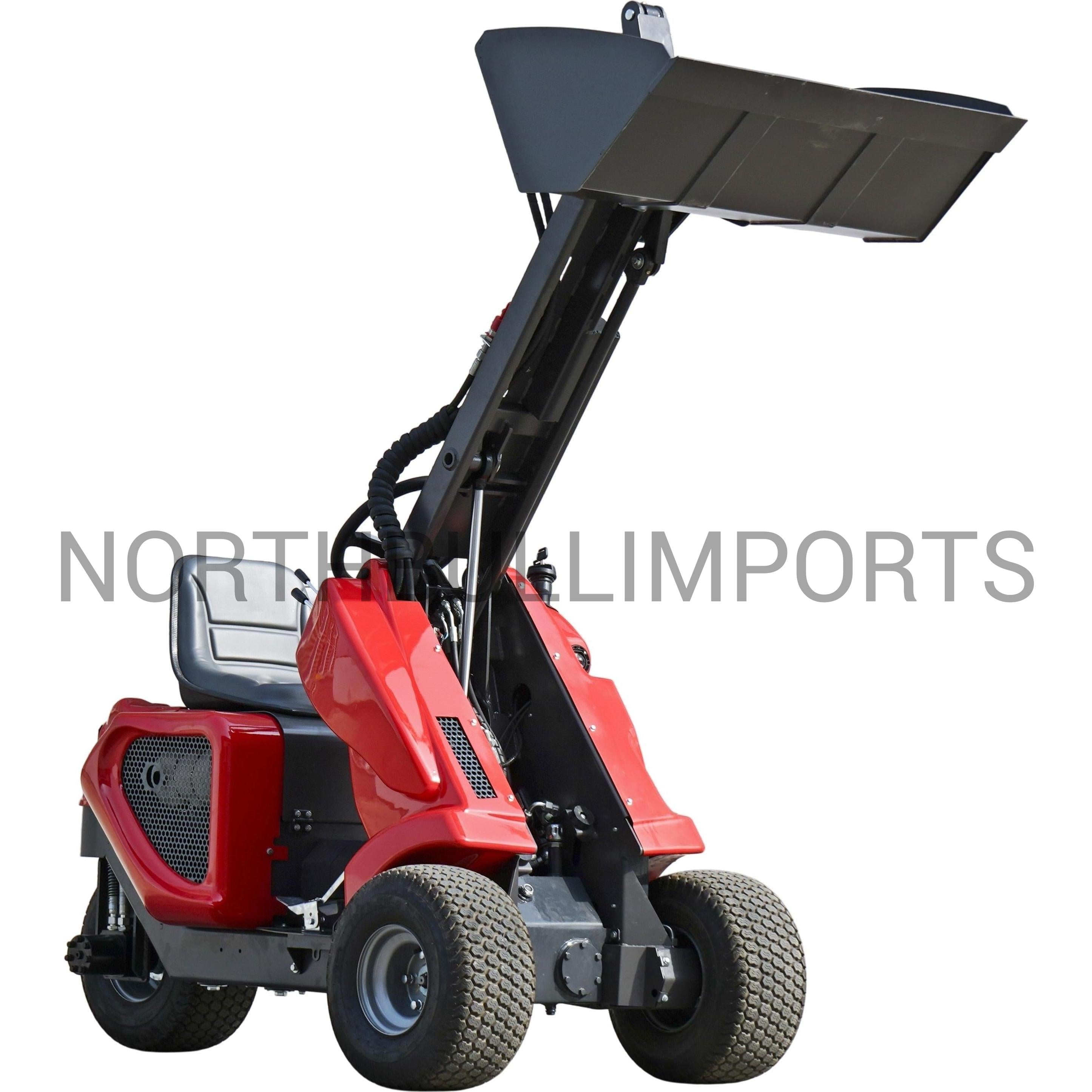

  • Max lifting height (mm): 2241
  • Max dumping height (mm): 1519
  • Climbing ability (degrees): 30
  • Steering angle (degrees): 90
  • Travel speed fast (km/h): 12

Engine

  • Engine brand: B&S
  • Engine model: XR2100
  • Fuel type: Gasoline
  • Power (kW/hp): 10/13,5
  • RPM: 3600
  • Displacement (cc): 420
  • Number of cylinders: 1
  • Cooling: Air-cooled

Transmission and drivetrain

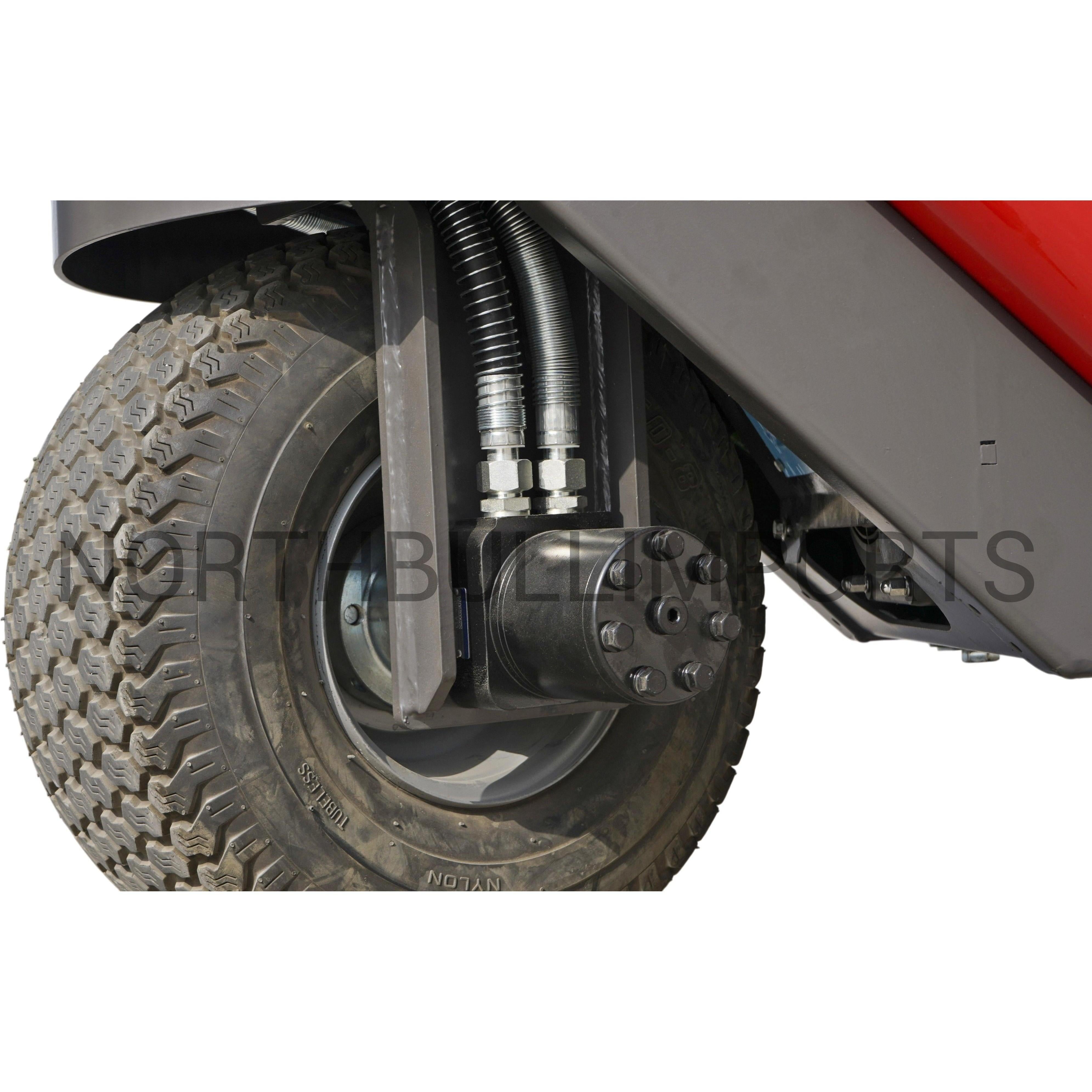

  • Drive type (Hydrostatic Drive / Torque Converter / Electric Drive): Hydrostatic drive
  • Drive train (2WD / 4WD / full time 4WD): 3WD
  • Driving direction shifting (mechanical / electric): Hydraulic
  • Where is driving direction shifting controlled from (joystick button / foot pedal / stalk): Foot pedal
  • Front axle differential type (Open / Limited slip / Locking): Open

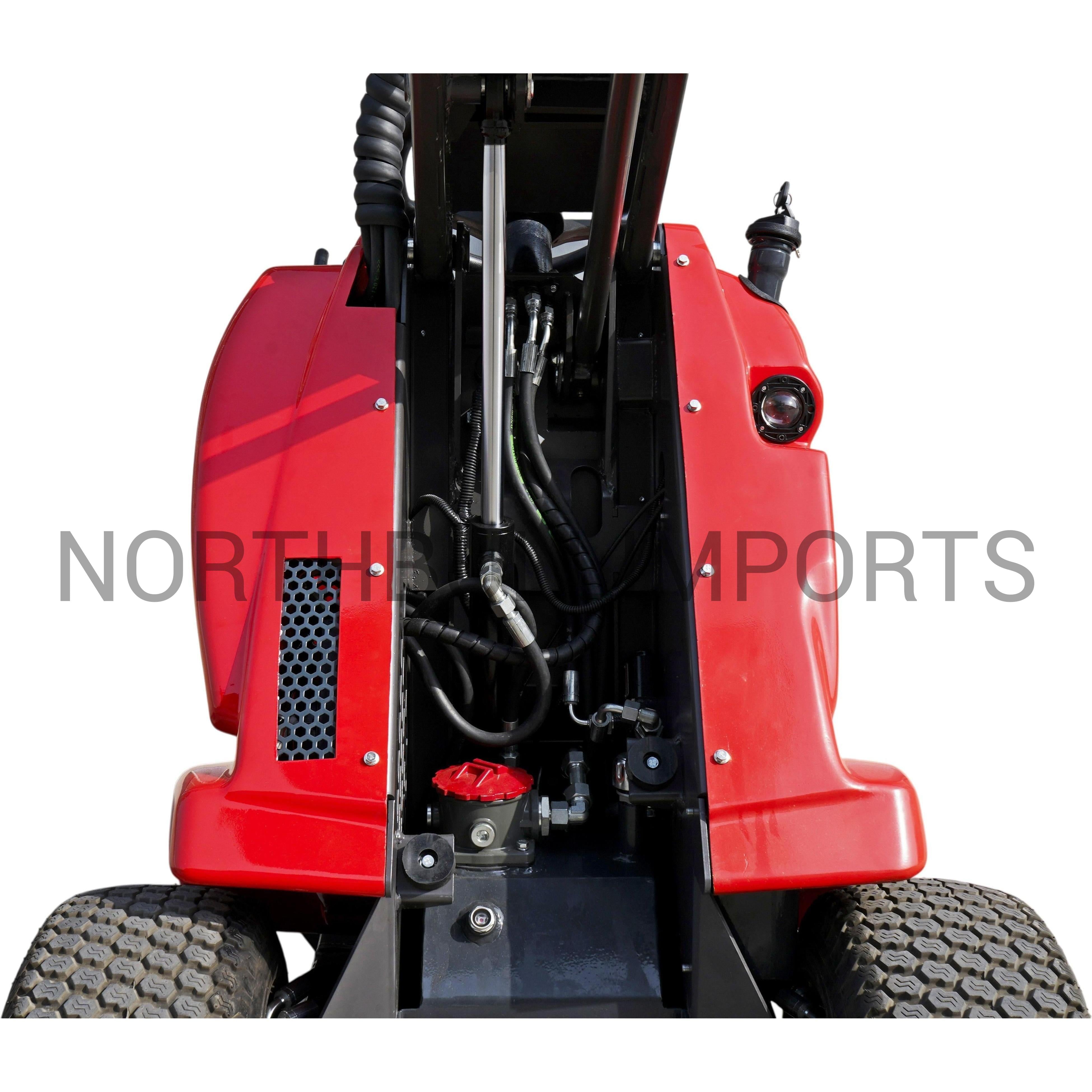

Hydraulics

  • Hydraulic oil quantity (L): 21
  • Hydraulic Working pressure (bar): 160
  • Main Hydraulic Pump type (gear / piston / other) (variable displacement/fixed displacement): Piston + Gear
  • Main Hydraulic Pump brand: TOMIW
  • Main Hydraulic Pump model: HZAC-13H-6
  • Main Hydraulic Pump flow (L/min): 18
  • Number of hydraulic pumps (1 / 2): 2
  • Hydraulic Main Valve brand: Boxin Huasheng
  • Hydraulic Valve model: HS45.3-10
  • Changeable hydraulic oil filter between oil tank outlet and main pump (yes/no): Yes
  • Auxiliary hydraulics included (yes/no): Yes
  • Auxiliary hydraulic Connector type (thread / quick connector): Quick-connect coupling
  • Auxiliary hydraulics oil flow (L/Min): 18
  • Number of connection hoses in aux hydraulics: 3
  • Where is Auxiliary hydraulics controlled from (foot pedal / joystick button / lever): Lever
  • Hydraulic oil cooler as standard (yes / no, optional / not available): Yes
  • Automatic leveling in front loader (yes / no, optional / not available): Not available
  • Loader Arm floating function included (yes / no, optional / not available): Not available
  • Loader control type ( joystick or simple lever): Mechanical lever

Brakes

  • Front brakes type (oil brakes / mechanical brakes): Hydraulic valve
  • Rear brake type (oil brakes / mechanical brakes): Hydraulic valve
  • Parking brake type (mechanical / electric / hydraulic): Mechanical

Electrical system

  • Electric system voltage (V): 12
  • Battery type (Lithium, lead-acid): Lead-acid
  • Electric system shortcut protection (yes/no): Yes
  • Main Disconnect Switch / Emergency Cut-off (yes/no): Yes
  • Horn (yes / no): Yes
  • Reverse lights (yes / no): Yes

Tires and wheels

  • Tire type (tubeless / with inner tube): Tubeless
  • Tire size: 18x9.5-8
  • Tread pattern of the standard tire (off-road / turf / all-terrain): All-terrain

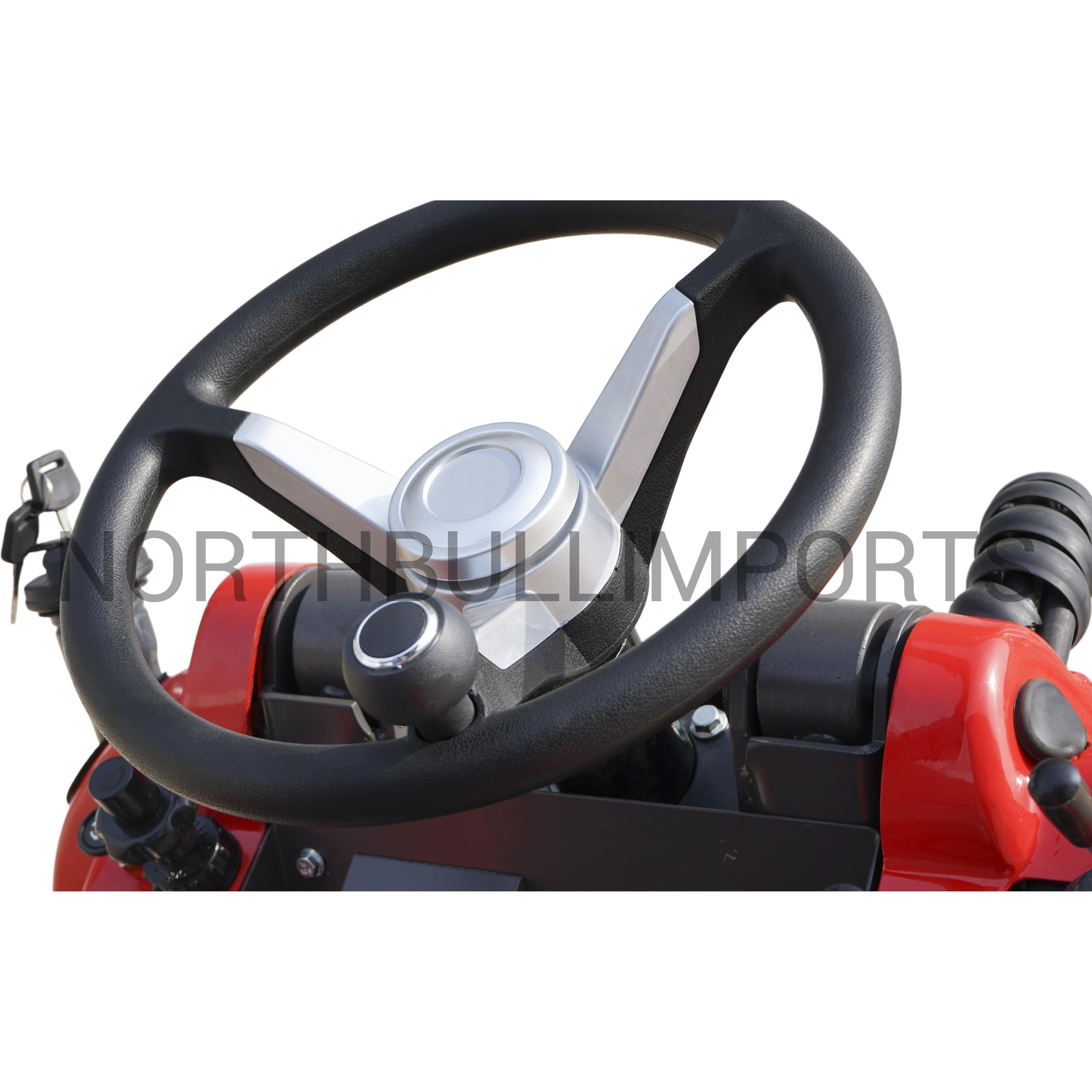

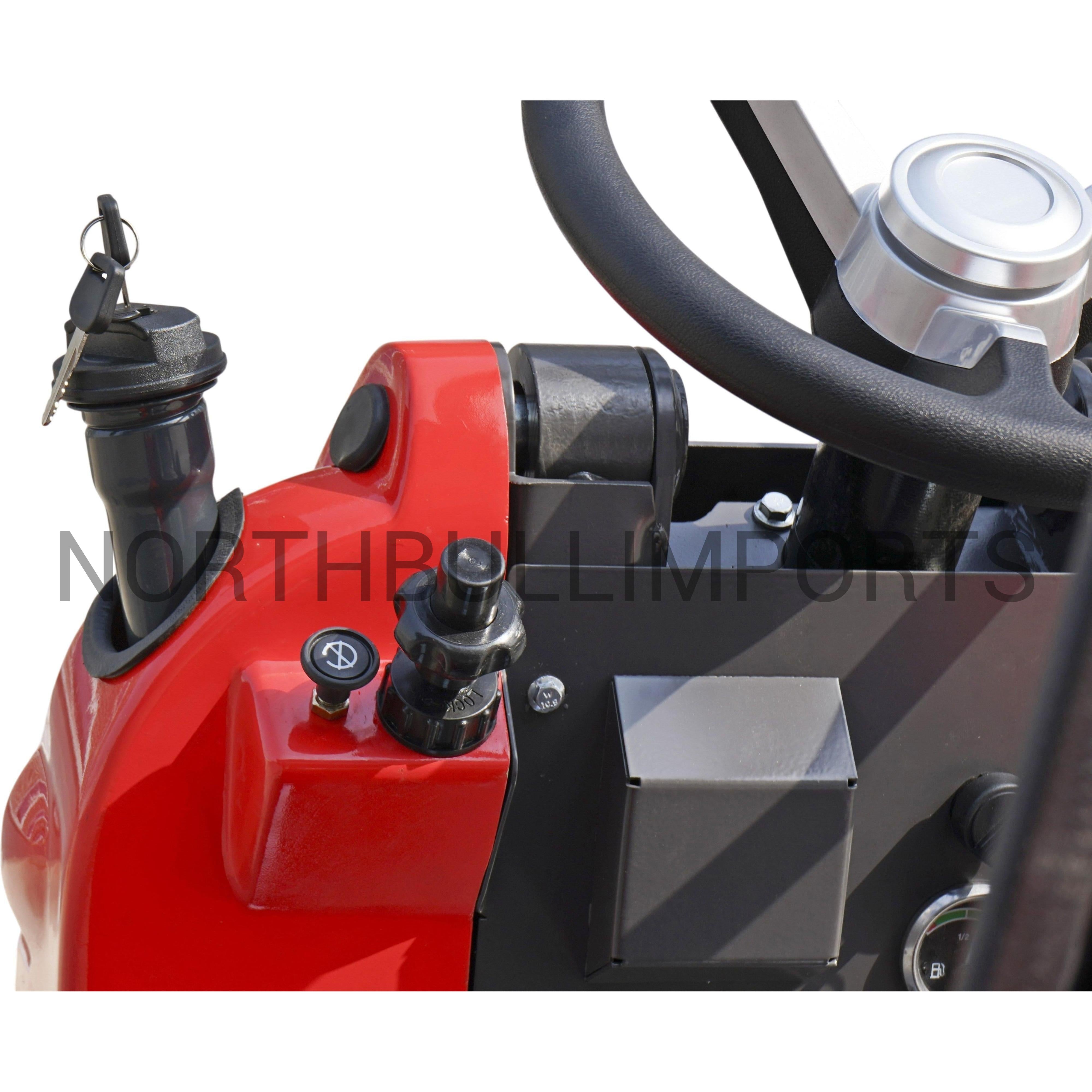

Dashboard and cabin

  • Seat model (adjustable / non adjustable): Adjustable
  • Hour meter (yes / no): Yes
  • Driving speed meter (yes/no): No
  • Steering wheel adjustment (height / distance / no adjustment): No

Attachment coupling dimensions

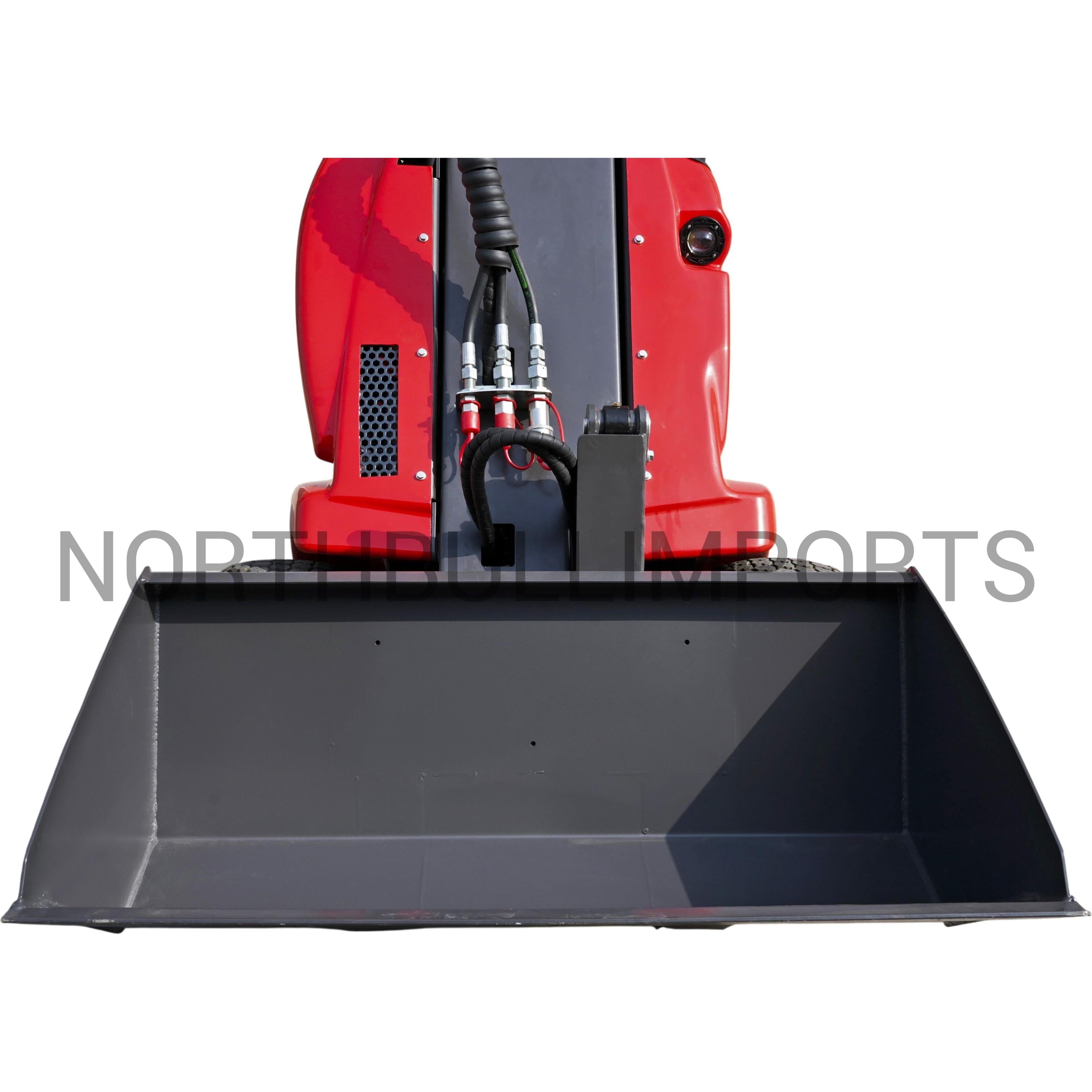

  • Standard bucket width (mm): 998
  • Standard bucket volume (m3): 0.06

Dimensions and structure

  • Overall length (without attachment) (mm): 1945
  • Overall length (with standard bucket) (mm): 2400
  • Overall width with standard tyres (mm): 1021
  • Overall height (with canopy, if included) (mm): 1290
  • Ground clearance (mm): 180
  • Wheelbase (mm): 1400
  • Machine weight (kg): 480
  • Rated operating capacity (kg): 350
  • Turning radius without attachment (outside, mm): 1945

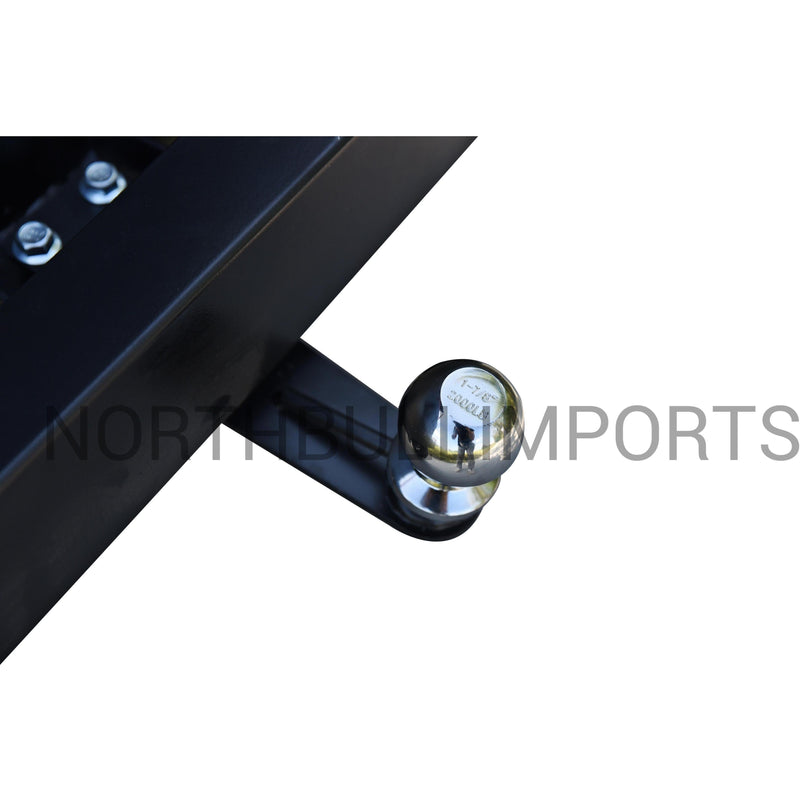

  • Tow hook included (yes / no): No (optional accessory)
  • Tow hook type (50mm ball / pin hitch / combi): 50mm ball

Delivery and packaging

  • Estimated product manufacturing time (days): 30
