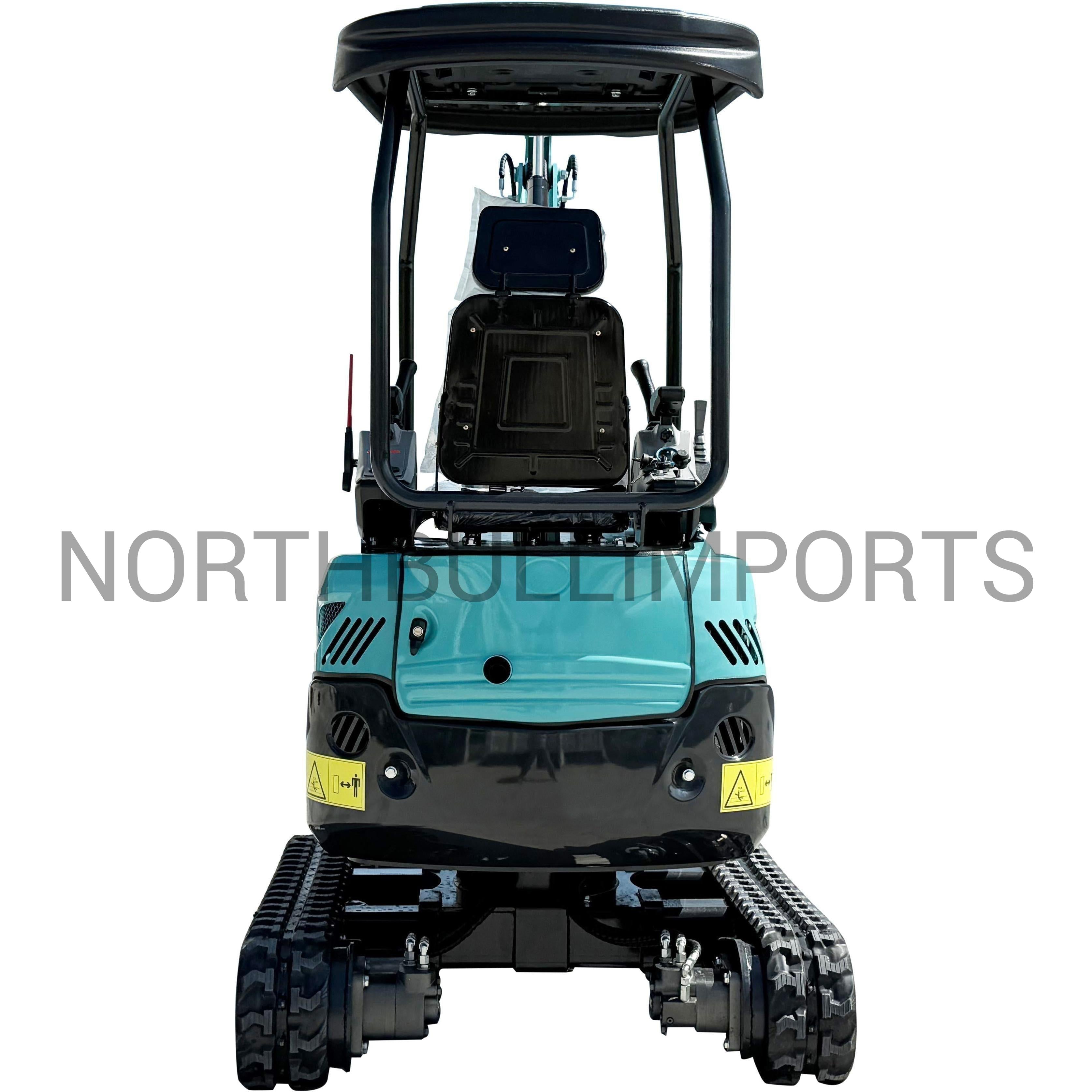

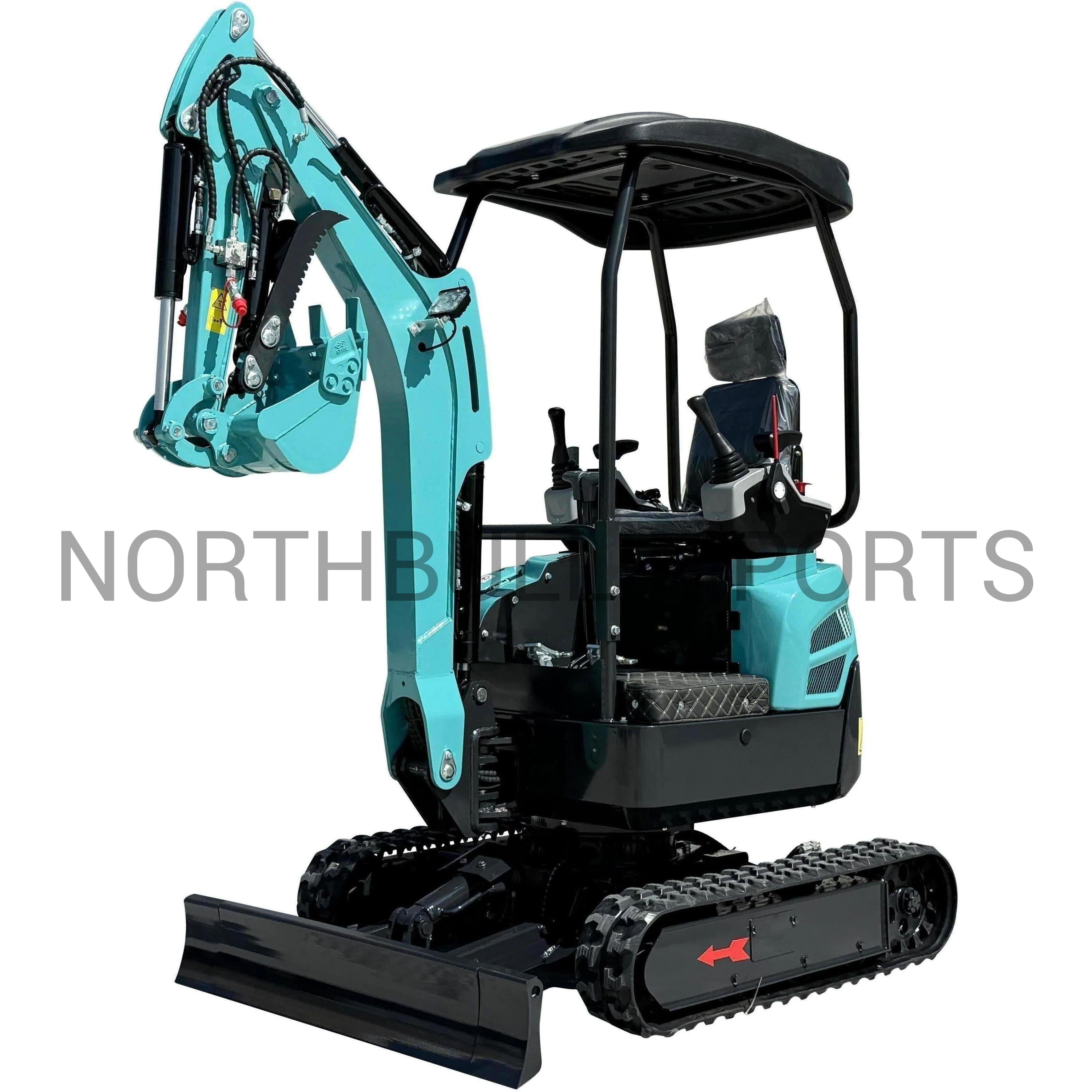

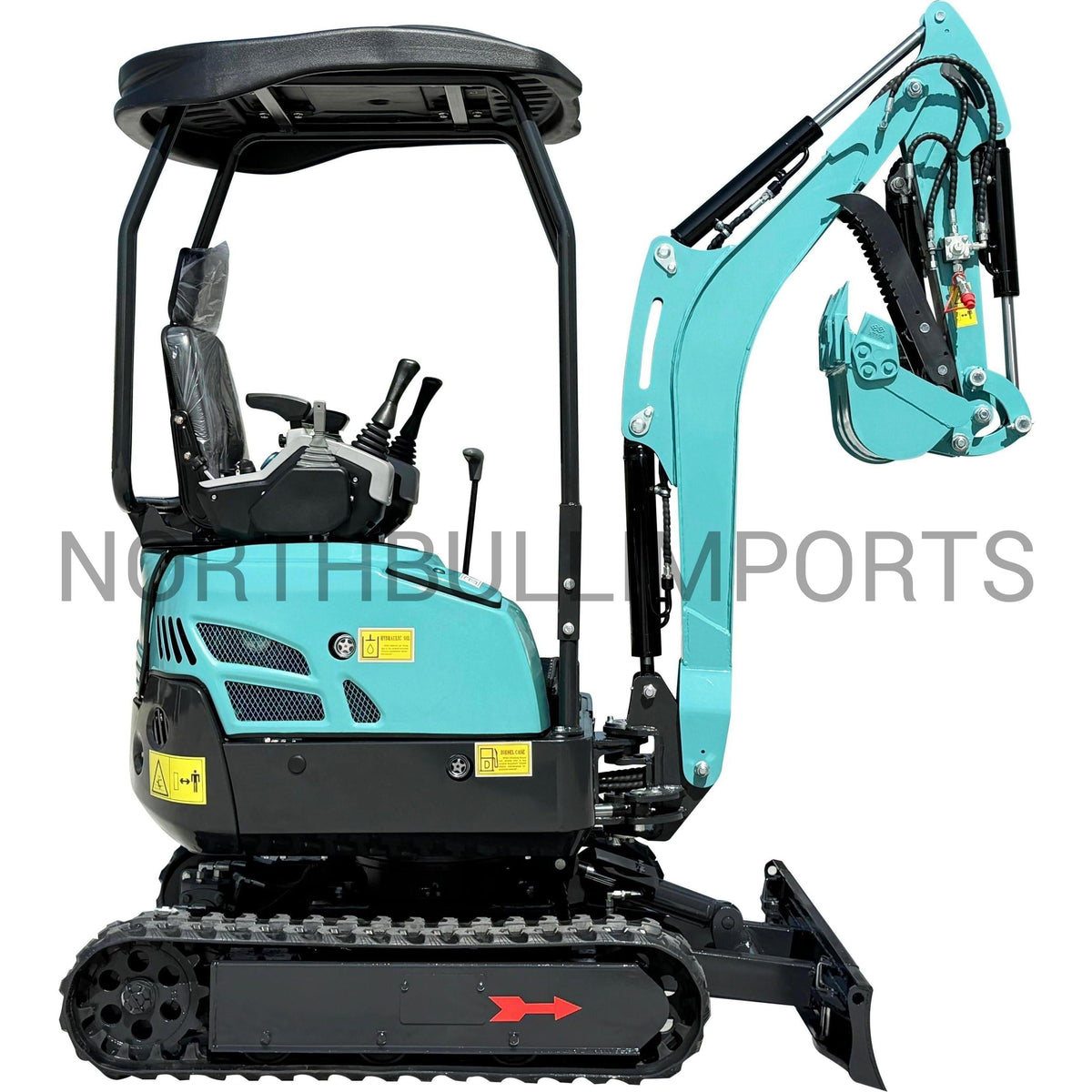

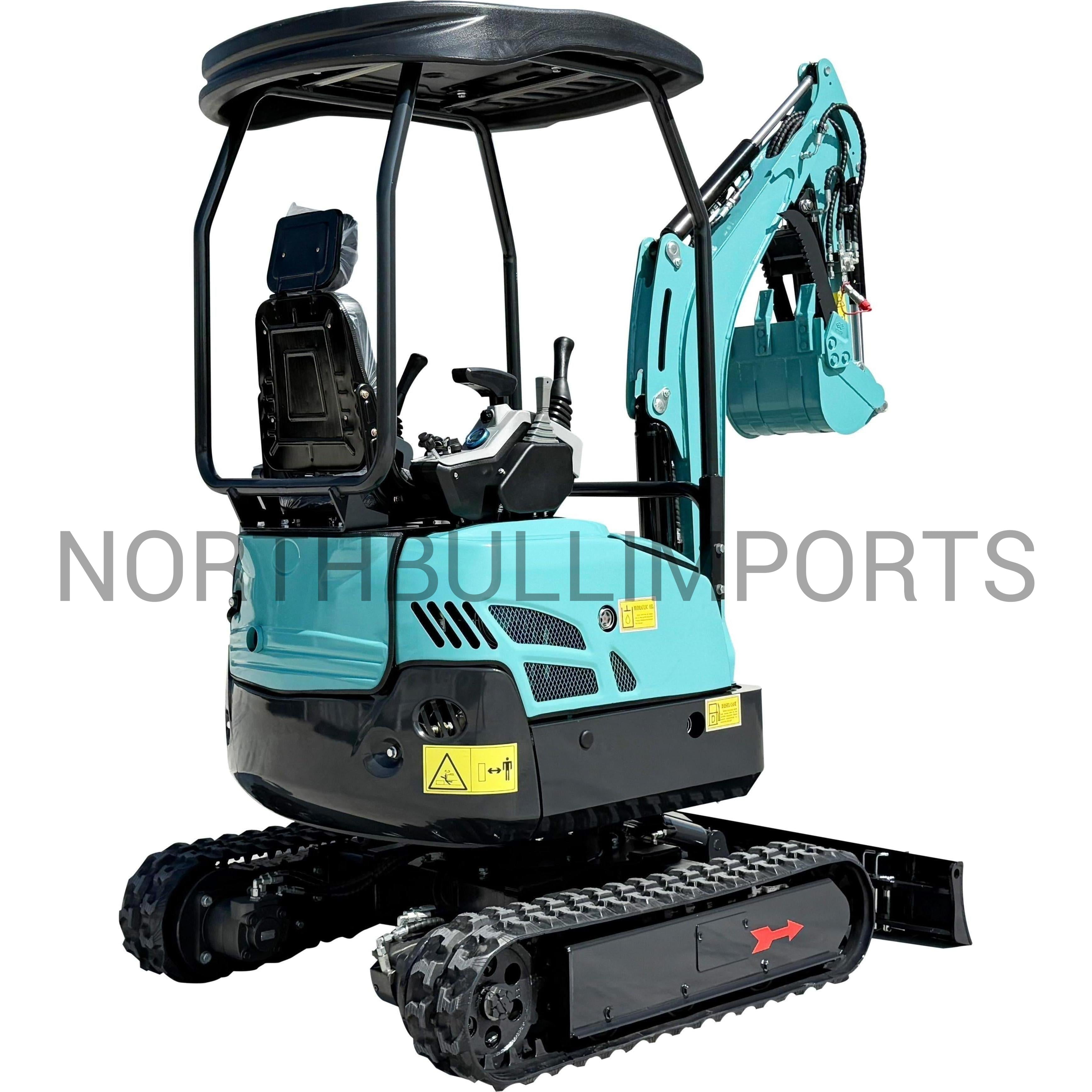

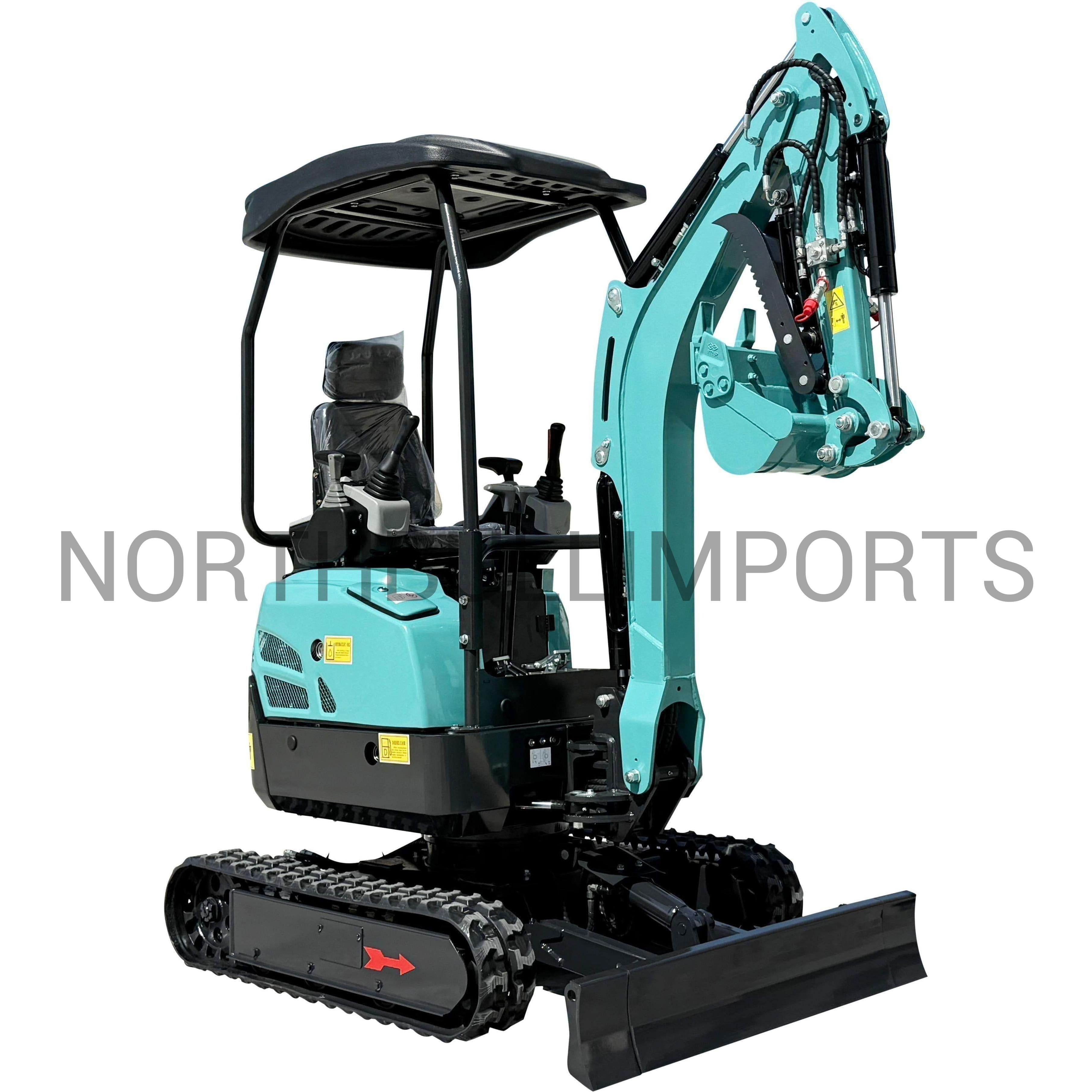

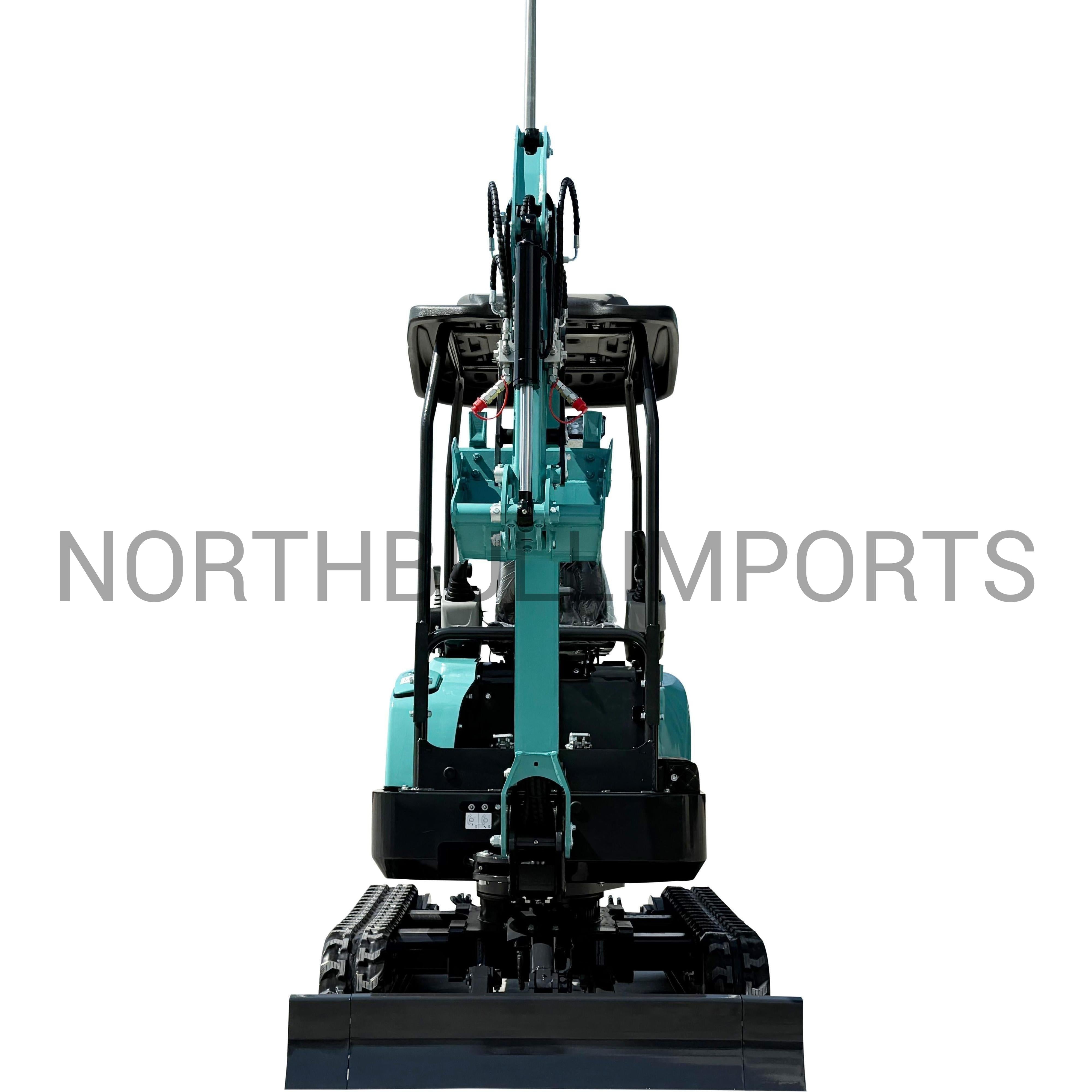

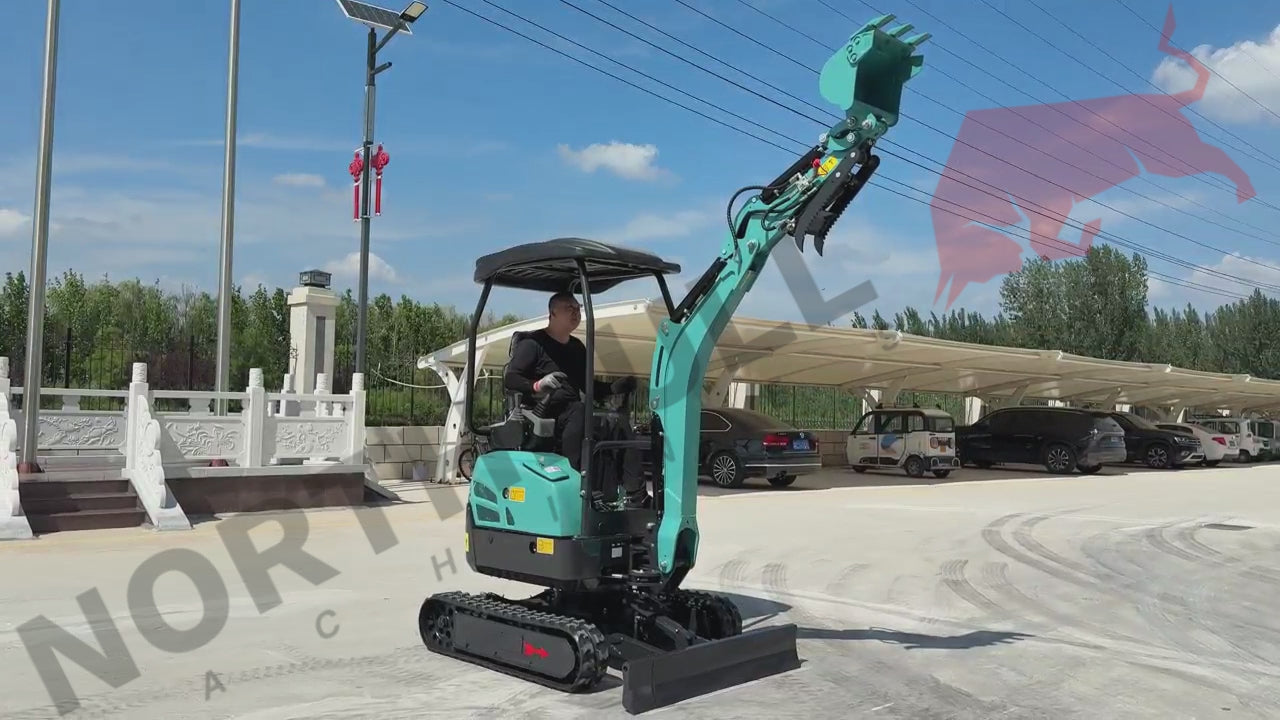

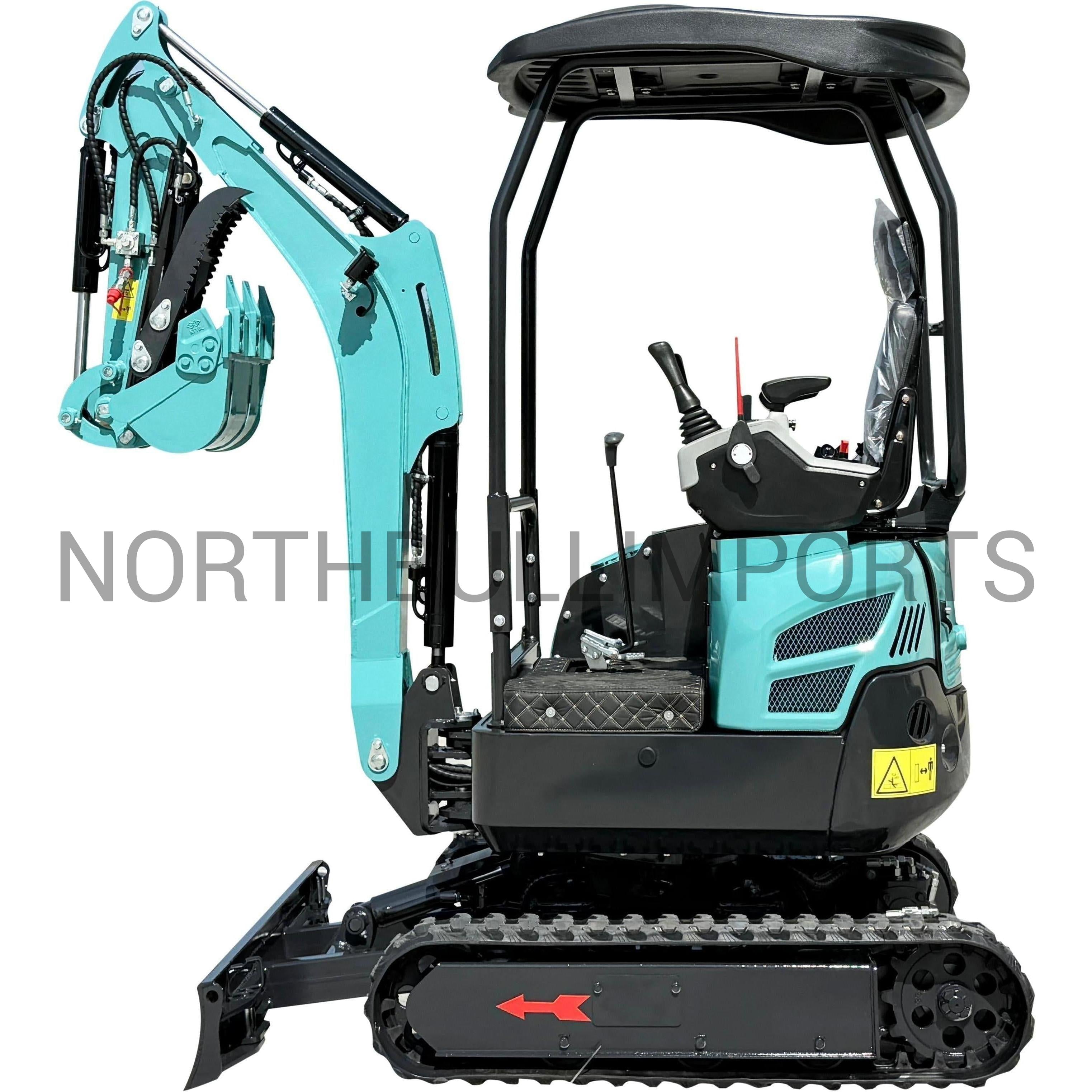

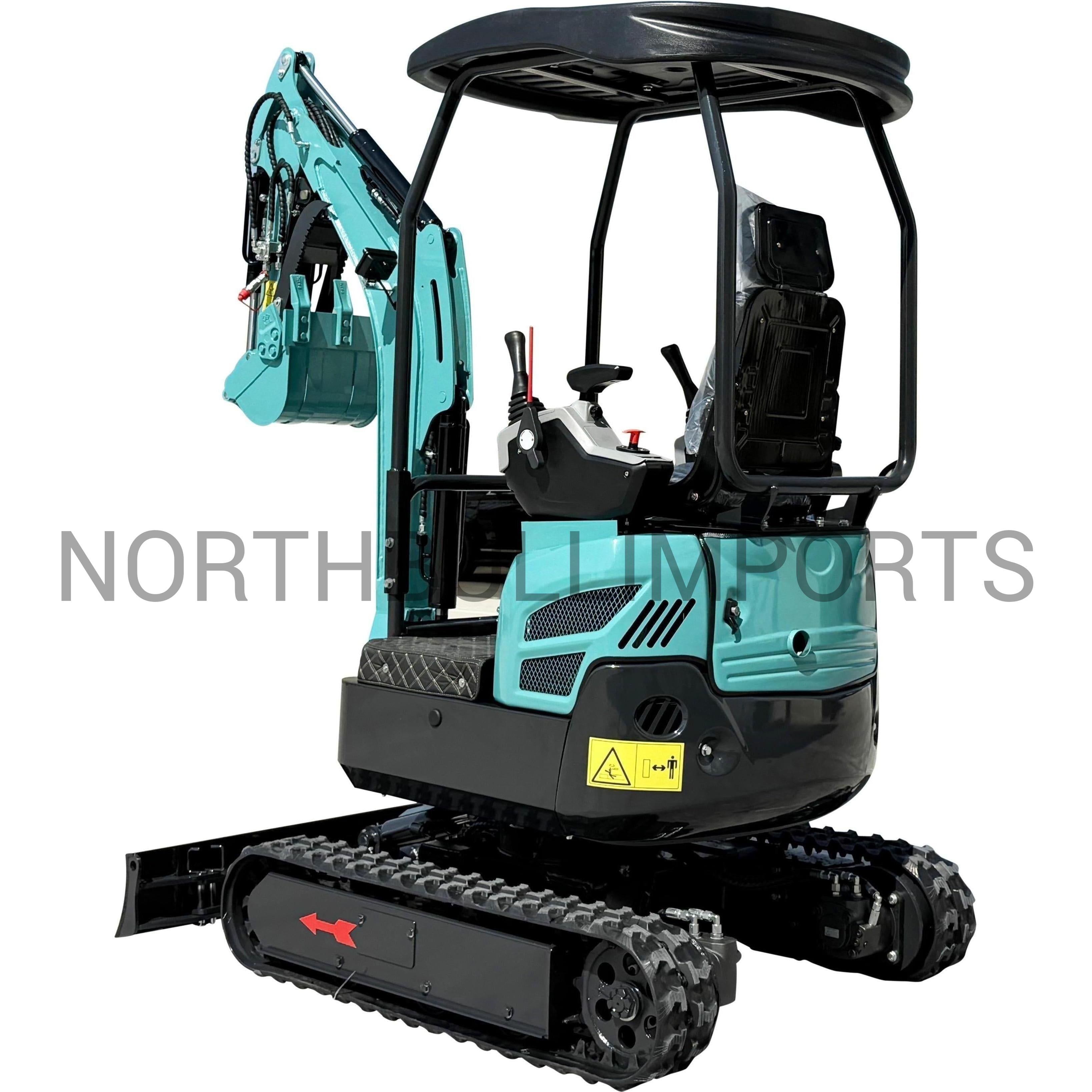

HT15n mini Excavator

Regular price 3.987,25 € incl. VAT and customs

Standard equipment includes:

  • Auxiliary hydraulics
  • Boom swing
  • Hydraulic pilot controls
  • Bigger undercarriage than in HT15 model

HT15 Mini Excavator – versatile power in a compact size

The HT15 weighs 1500 kg, giving it the muscle for heavier workloads while still fitting into yards, gardens, and smaller work sites.

Work it can handle
It’s ideal for trench digging, soil movement, foundation preparation, and clearing rocks or roots. With attachments, it becomes a true all-rounder, from snow removal to small demolition projects.

User-friendly technology
Despite its added power, the HT15 remains simple to operate and easy to service. Its robust structure ensures reliability, while routine maintenance can be done quickly by the owner.

Why choose the HT15?

  • Extra strength for tougher jobs

  • Still compact enough for private yards

  • Easy to use, easy to maintain

How to order the product:

  1. Enter your address in the calculator and calculate the total price including delivery
  2. Choose the color of your product
  3. Choose the accessories and add-ons you want
  4. Add products to the shopping cart
  5. Go to shopping cart
  6. Pay for your purchase. We recommend ordering by invoice as a payment method.

Calculate Shipping Cost

Enter Address

Key attributes
Operating weight (kg): 1300
Undercarriage length and width (mm): 1700*1100
Max digging depth (mm): 1800
Control type: Hydraulic pilot control
Engine brand: KOOP
Power (kW/hp): 7 / 9,4

We typically reply within 24 hours.

Delivery information
Estimated manufacturing time (days):
30
Estimated delivery time (weeks):
12
Freight indexation
Secure payments

Payments are secured with strong SSL encryption and PCI DSS data protection protocols.

Payment methods

General information

  • Product type: Mini excavator 1300kg
  • Product model: HT15n mini Excavator
  • CE marking (yes/no): Yes
  • Warranty: one year warranty
  • User manual in chinese / english: Yes, English (electronic version)
  • Battery capacity (Ah): 45

Performance

  • Max digging depth (mm): 1800
  • Max digging height (mm): 2680
  • Max dumping height (mm): 1850
  • Max digging reach (mm): 2750
  • Minimum turning radius (mm): 1500
  • Boom swing angle (degrees): Included in basic configuration, 48°
  • Blade lift height / digging depth (mm): 175/325
  • Climbing ability (degrees or %): 30°
  • Travel speed slow (km/h): 2.5
  • Control type (select or describe): Hydraulic pilot control

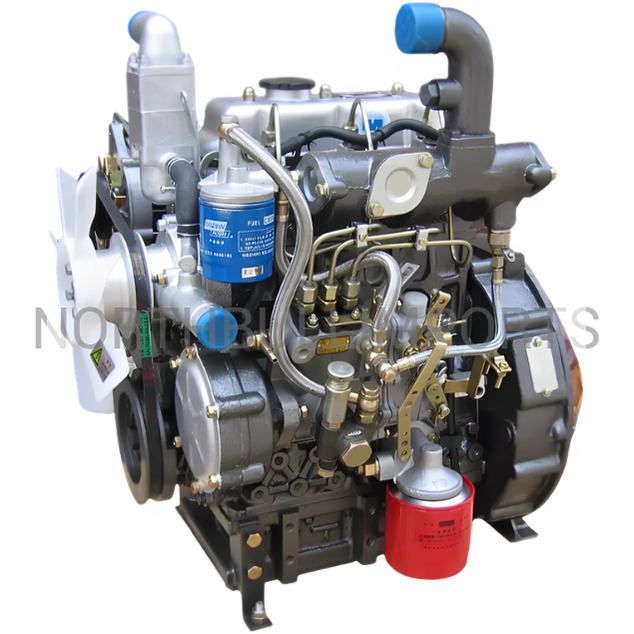

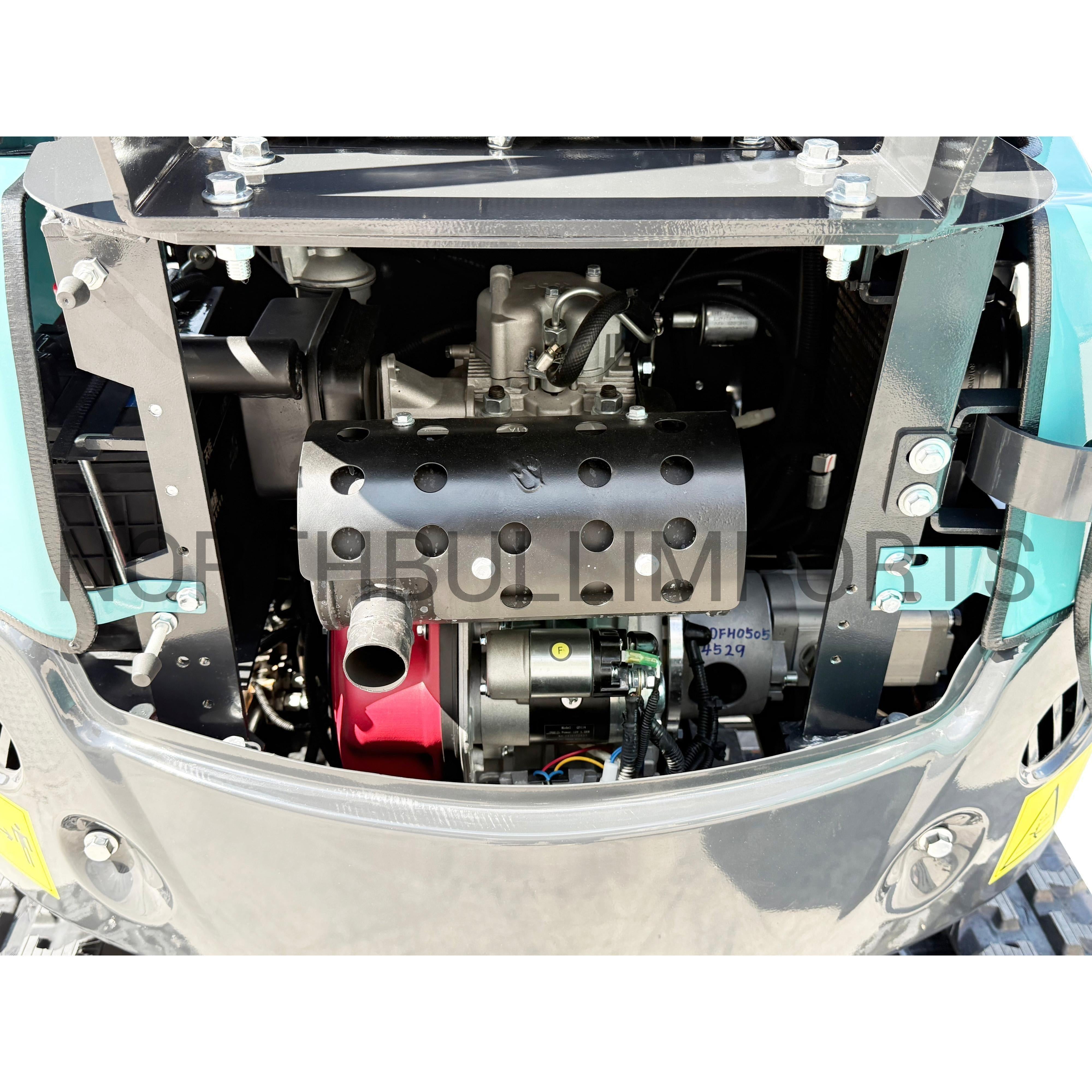

Engine

  • Engine brand: KOOP
  • Engine model: 192F
  • Fuel type: Diesel
  • Power (kW/hp): 7 / 9,4
  • RPM: 3600
  • Displacement (cc): 211
  • Number of cylinders: Single cylinder
  • Cooling: air cooled
  • Emission class: EURO5
  • Engine pre-heater included? Yes / no: no
  • Engine weight (kg): 50-60kg

Drive and swing motors

  • Travel motor brand: Like
  • Travel motor model: 310
  • Travel motor torque (Nm): 310
  • Swing motor brand: Like
  • Swing motor model: 250
  • Swing motor torque (Nm): 250
  • Swing gear diameter (mm): 280

Hydraulics

  • Hydraulic oil quantity (L): 20L
  • Hydraulic Working pressure (bar): 16MPA
  • Hydraulic Pump type (gear pump/ plunger pump / other): Gear pump
  • Hydraulic Main Pump brand: Tianji
  • Hydraulic Pump model: 306
  • Hydraulic Main Pump 1 flow (L/min): 19.5
  • Number of hydraulic pumps: 1
  • Hydraulic Main Valve brand: Beifang
  • Hydraulic Valve model: 8
  • Changeable hydraulic oil filter (yes/no): yes
  • Auxiliary hydraulic Connector type: Thread
  • Auxiliary hydraulics (yes/no): yes
  • Aux 1 oil flow (L/Min): 15L/Min
  • Where is Auxiliary hydraulics controlled from: foot pedal
  • Hydraulic oil cooler (yes/no): no, optional accessory

Undercarriage

  • Track type (rubber/steel): Rubber
  • Track width (mm): 180
  • Track length (mm): 1700
  • Track Tensioning system: Manual bolt tensioner
  • Undercarriage Wheel guard (yes/no): Yes
  • Undercarriage Number of track rollers: 3 per side
  • Undercarriage Track roller size (inch): 135
  • Undercarriage Drive sprocket diameter (mm): 360

Cylinders

  • Bucket tilt cylinder: 80*30*320
  • Excavator boom arm cylinder: 65*30*330
  • Excavator boom main cylinder: 70*30*340
  • Boom Swing cylinder: 70*30*330
  • Blade cylinder: 65*30*320
  • Track extension cylinder: 65*30*320

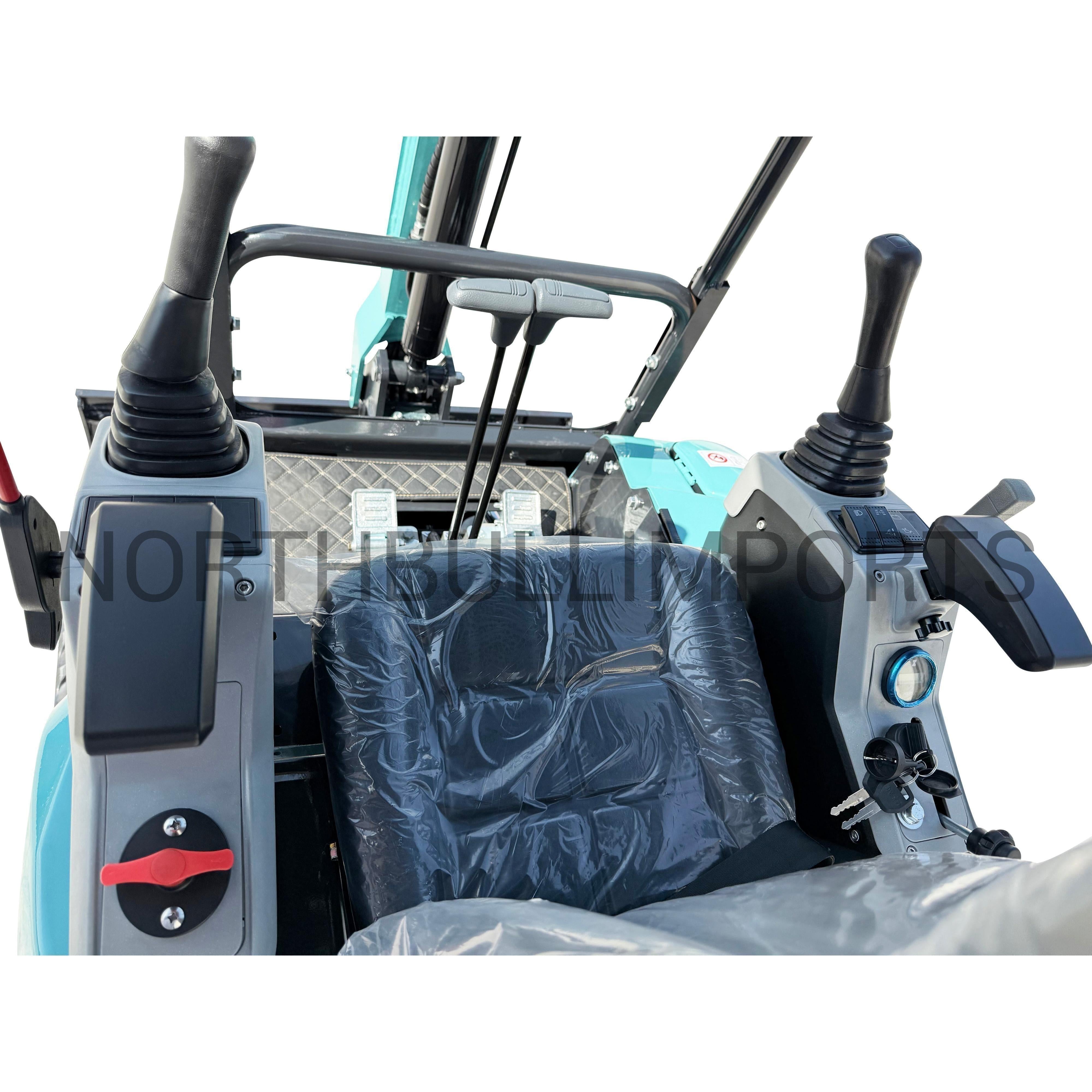

Dashboard and cabin

  • Canopy type (No canopy included / Simple canopy, no roll-over protection / Rops / FOPS): rops
  • Seat model: 15
  • Seatbelt: Yes
  • Hour meter: yes
  • 12V output socket: no
  • Shut-off switch for hydraulics: yes
  • Closed cabin included (yes / no, optional / not available): No (optional accessory)
  • Closed Cabin Preheater (yes/no): No
  • Closed Cabin Heater (yes/no): No (optional accessory)
  • Closed Cabin Heater type (water heater with fan / electric heater): Yes
  • Closed Cabin Windshield wiper (yes / no): Yes
  • Closed Cabin Work lights (yes/no): Yes
  • Closed Cabin Fan (yes / no): No
  • Closed cabin beacon light (yes / no): Yes
  • Closed Cabin inside roof light (yes/no): No
  • Closed Cabin bluetooth radio and speakers (yes/no): No
  • Closed Cabin side window can be opened (yes/no): Yes
  • Closed Cabin front window can be opened (yes/no): Yes
  • Closed Cabin rear window can be opened (yes/no): No
  • Closed cabin, Curtains in cabin (yes/no): No
  • Closed cabin Air conditioning available (yes/no): Yes
  • If yes, where is the AC-unit positioned (roof / side / back)?: Roof

Attachment coupling dimensions

  • Pin distance (inner) (mm): 60
  • Pin distance (outer) (mm): 110
  • Pin width (mounting area) (mm): 93
  • Pin diameter (mm): 25
  • Standard bucket width (mm): 300

Dimensions and structure

  • Gross Weight (kg): 1200
  • Operating weight (kg): 1300
  • Transport length (mm): 2770
  • Total width (mm): 1100
  • Overall height with canopy (mm): 2350
  • Overall height without canopy/cab (mm): 1700
  • Ground clearance (mm): 200
  • Undercarriage length and width (mm): 1700*1100
  • Blade dimensions (mm) (width, height): 1100*350

Delivery and packaging

  • Which parts are disassembled for shipping: Canopy
  • Estimated product manufacturing time (days): 30
