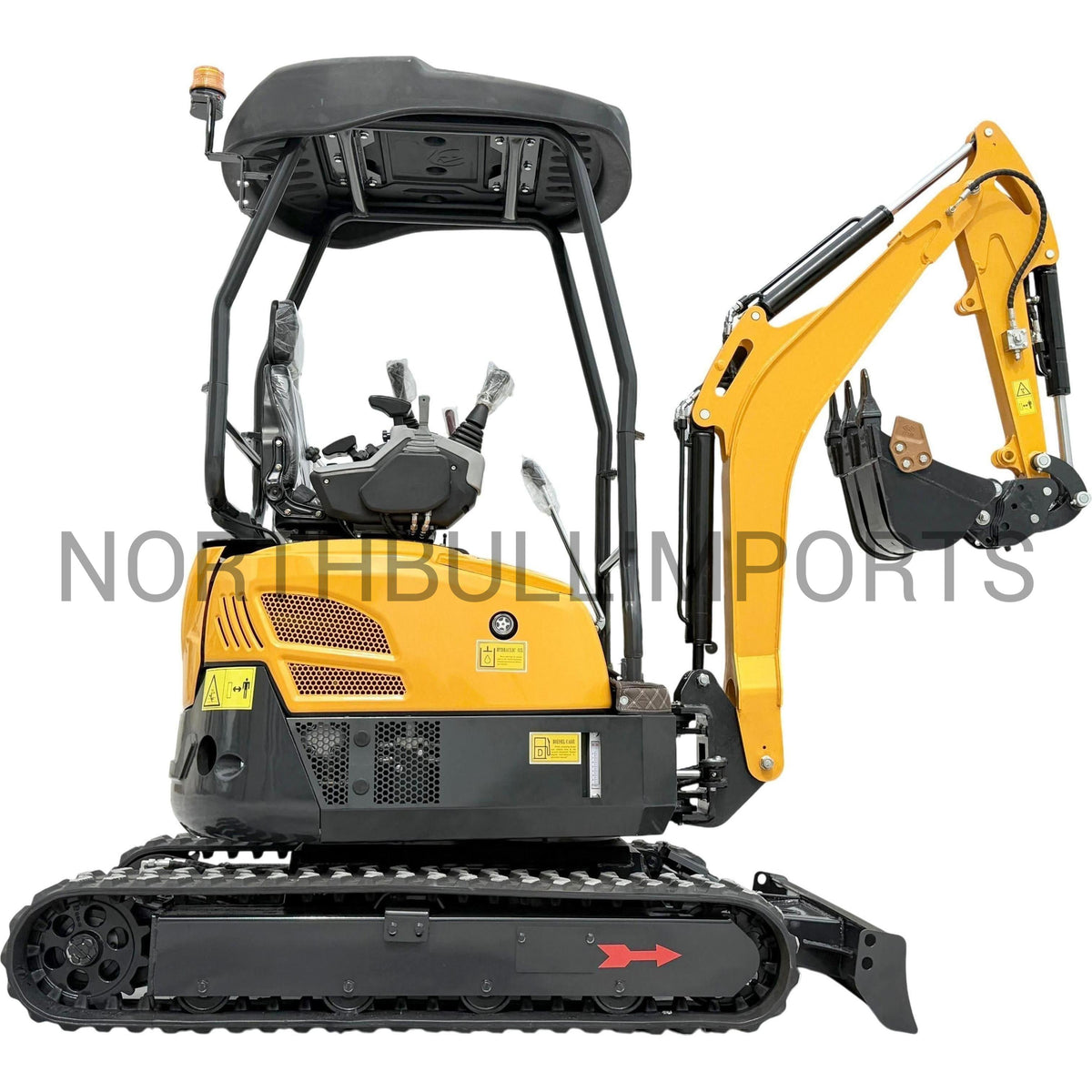

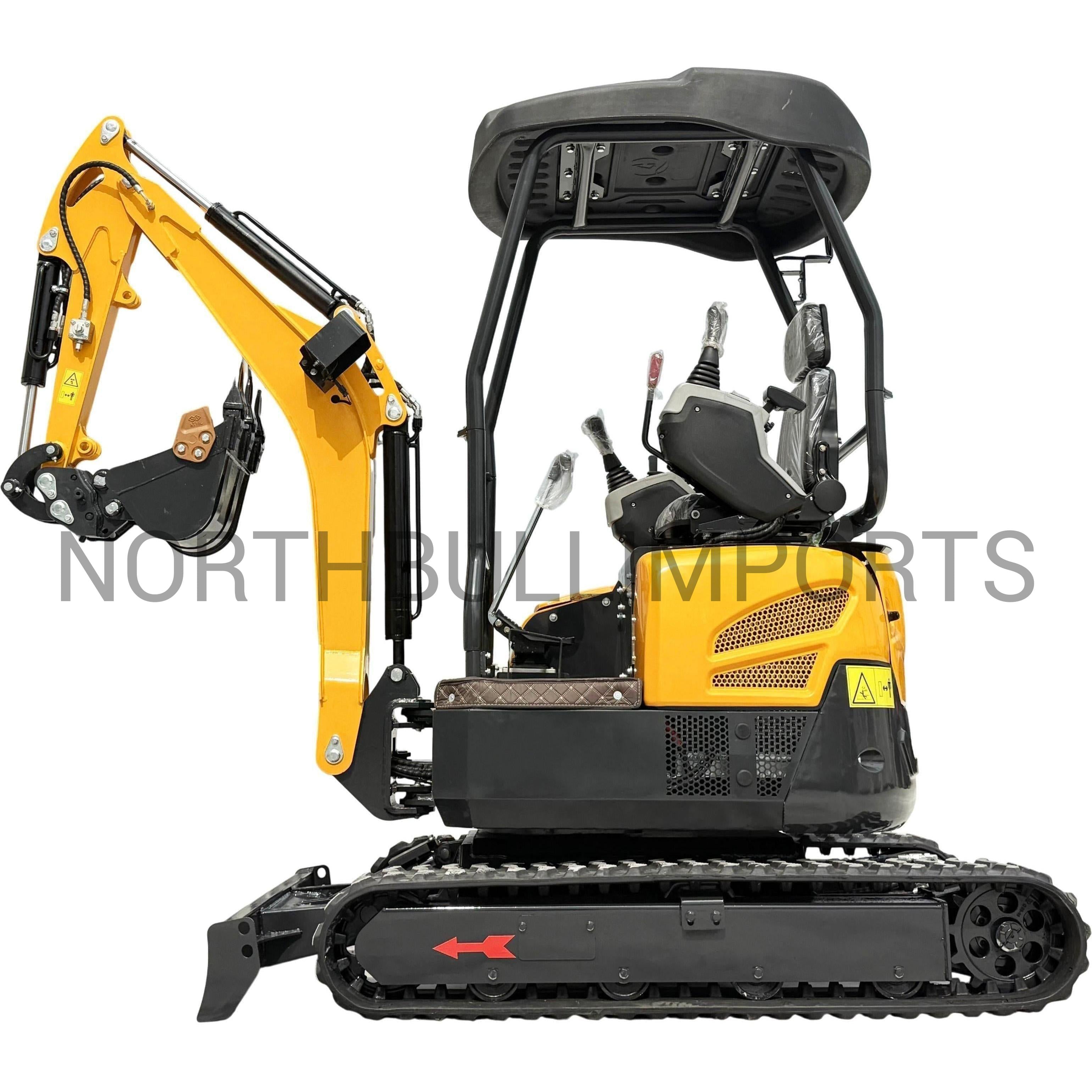

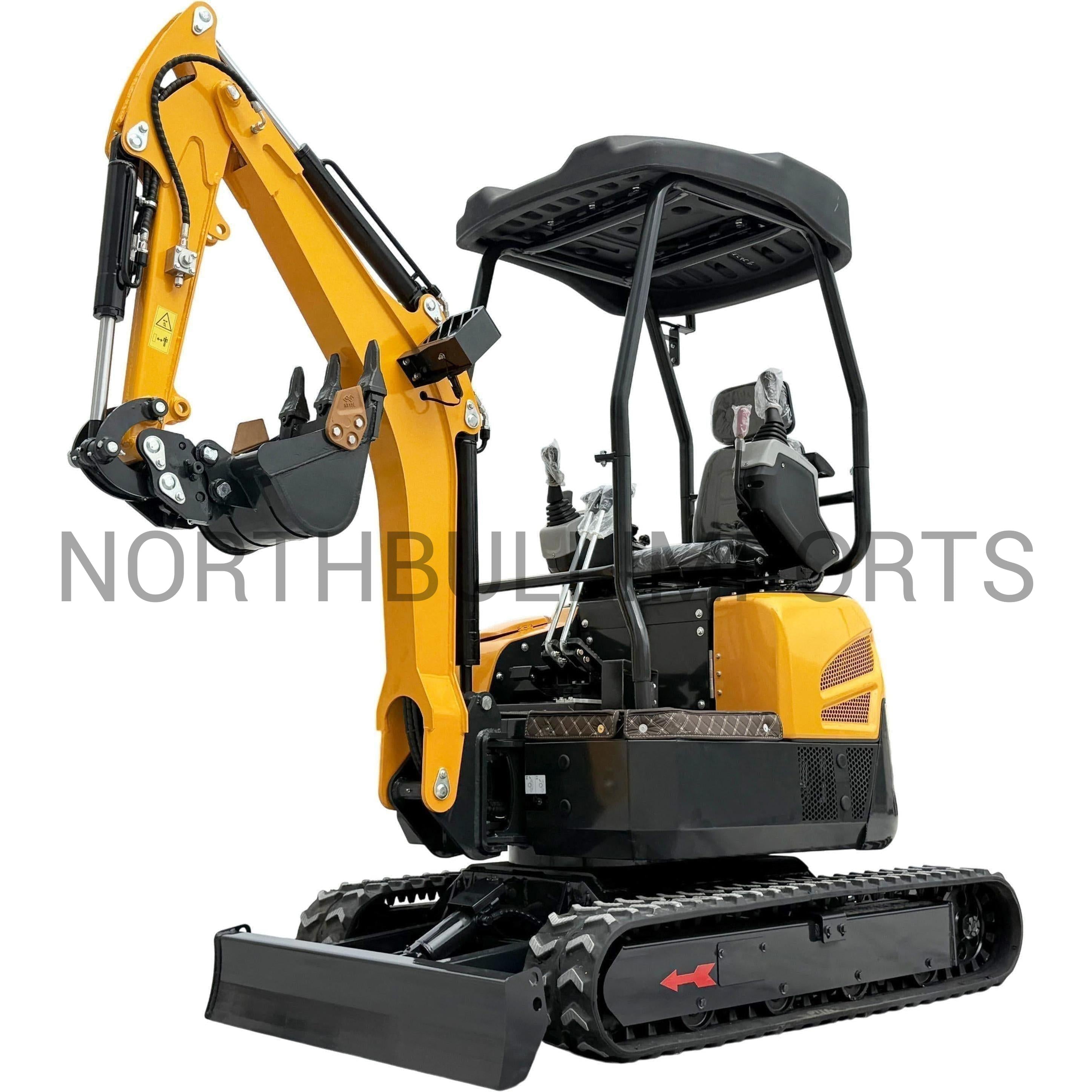

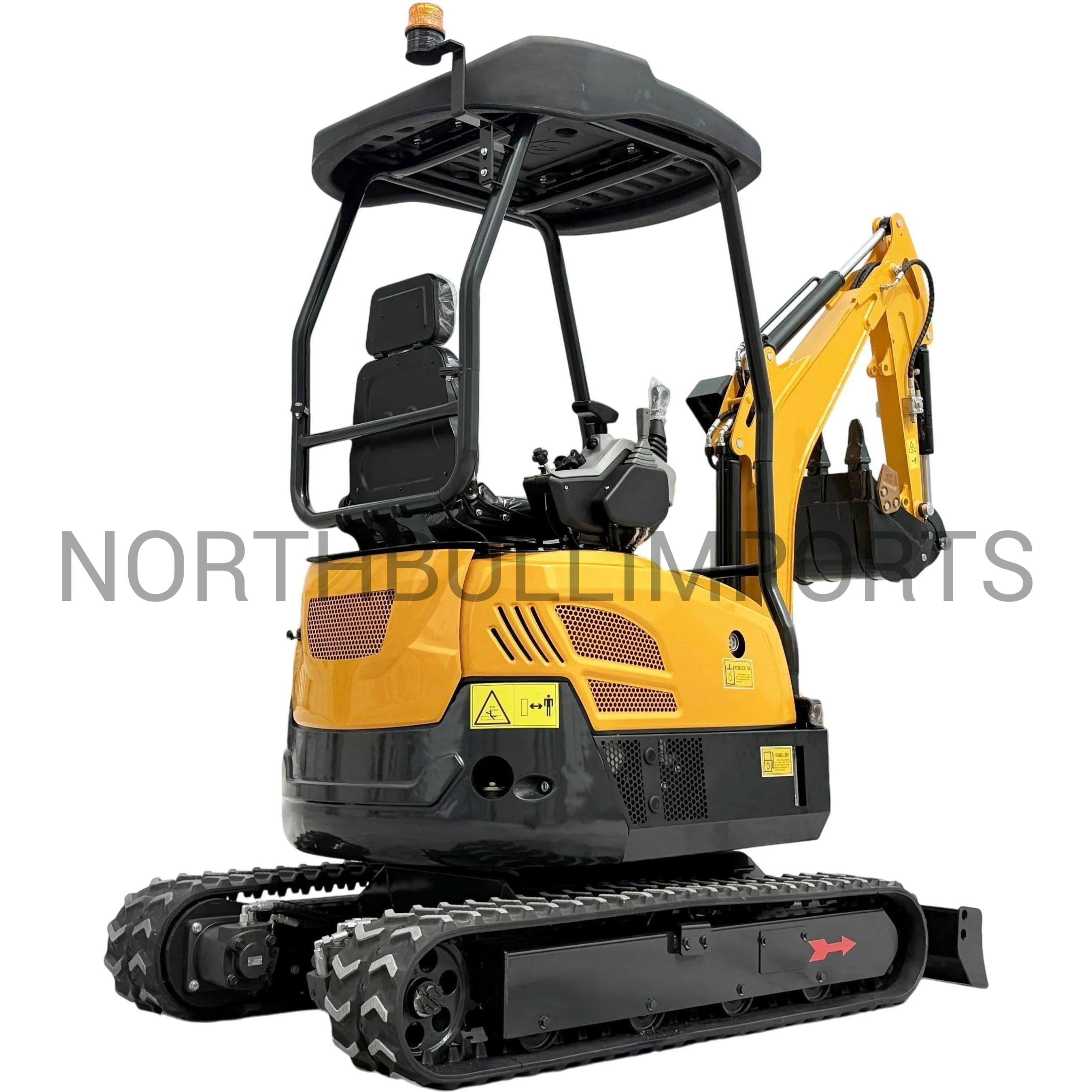

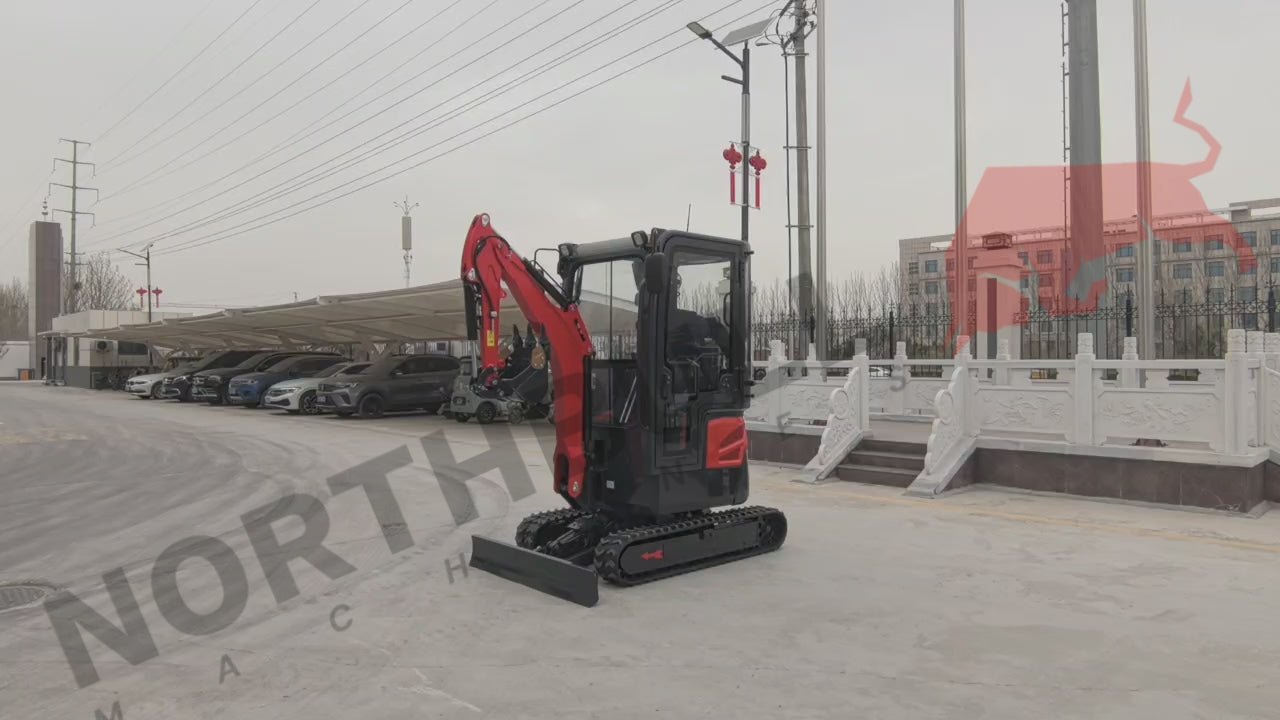

HT20 mini Excavator

Regular price 8.157,24 € incl. VAT and customs | Shipping not included
🖨️ Print as PDF

Standard equipment includes:

  • Auxiliary hydraulics
  • Boom swing
  • Hydraulic pilot controls
  • Powerful 3-cylinder, water cooled diesel engine
  • Bigger undercarriage than in HT18 model

HT20 mini excavator – a bit more weight and muscle for the job

The 1,700 kg HT20 mini excavator is designed for slightly heavier work, yet it remains agile and easy to control. It fits the operator’s hands like a glove. The machine works well both for home use and for contractors who need a reliable all-around machine for various smaller tasks. This kind of investment won’t put your company in trouble — it quickly pays for itself and starts bringing profit back into your pocket.

What is it good for?

Pretty much anything! HT20 feels most at home digging foundations and trenches, moving heavier loads, handling light demolition work, and taking care of small road repairs. It performs just as well in landscaping and general material handling.

Reliable and easy to maintain

The machine is built on simple, proven technology. Maintenance is straightforward, and most service tasks can be handled by the owner, which greatly improves cost-efficiency and long-term reliability. No expensive dealership talk — just fix the machine yourself and keep working!

Why choose HT20?

• Professional-level power in a compact machine
• Works well in a wide range of tasks
• Easy to service and reliable in daily use
• A quality mini excavator without a scary price tag
• A safe investment even for a smaller company

Laidong is a Chinese diesel engine manufacturer with more than 60 years of history, and millions of engines produced for a wide range of applications. The company manufactures engines for construction equipment, tractors, and generators. The engines are mechanically simple, reliable, and easy to service. Laidong is known for its strong price–quality ratio, and its engines are widely used around the world.

How to order the product:

  1. Enter your address in the calculator and calculate the total price including delivery
  2. Choose the color of your product
  3. Choose the accessories and add-ons you want
  4. Add products to the shopping cart
  5. Go to shopping cart
  6. Pay for your purchase. We recommend ordering by invoice as a payment method.

Calculate Shipping Cost

Enter Address

Enter at least 5 characters to see address suggestions

Key attributes
Operating weight (kg): 1700
Undercarriage length and width (mm): 1700/1160
Max digging depth (mm): 2100
Control type: Hydraulic pilot control
Engine brand: Laidong
Power (kW/hp): 18.4 / 24,6
PDF button not found. Make sure the LitPDF app block is added to this product page.

We typically reply within 24 hours.

Delivery information
Estimated manufacturing time (days):
30
Estimated delivery time (weeks):
12
Freight indexation
Secure payments

Payments are secured with strong SSL encryption and PCI DSS data protection protocols.

Payment methods

We accept the most common debit and credit cards, as well as domestic online banking and invoice payments. You can also apply for financing for your purchases through our financing partner without obligation.


General information

  • Product type: Mini excavator 1700kg
  • Product model: HT20 mini Excavator
  • CE marking (yes/no): Yes
  • Warranty: one year warranty
  • User manual in chinese / english: Yes, English (electronic version)
  • Battery capacity (Ah): 45

Performance

  • Max digging depth (mm): 2100
  • Max digging height (mm): 3010
  • Max dumping height (mm): 2285
  • Max digging reach (mm): 2400
  • Minimum turning radius (mm): 1190
  • Boom swing angle (degrees): 48
  • Blade lift height / digging depth (mm): 325/175
  • Climbing ability (degrees or %): 30°
  • Travel speed slow (km/h): 2.5
  • Control type (select or describe): Hydraulic pilot control

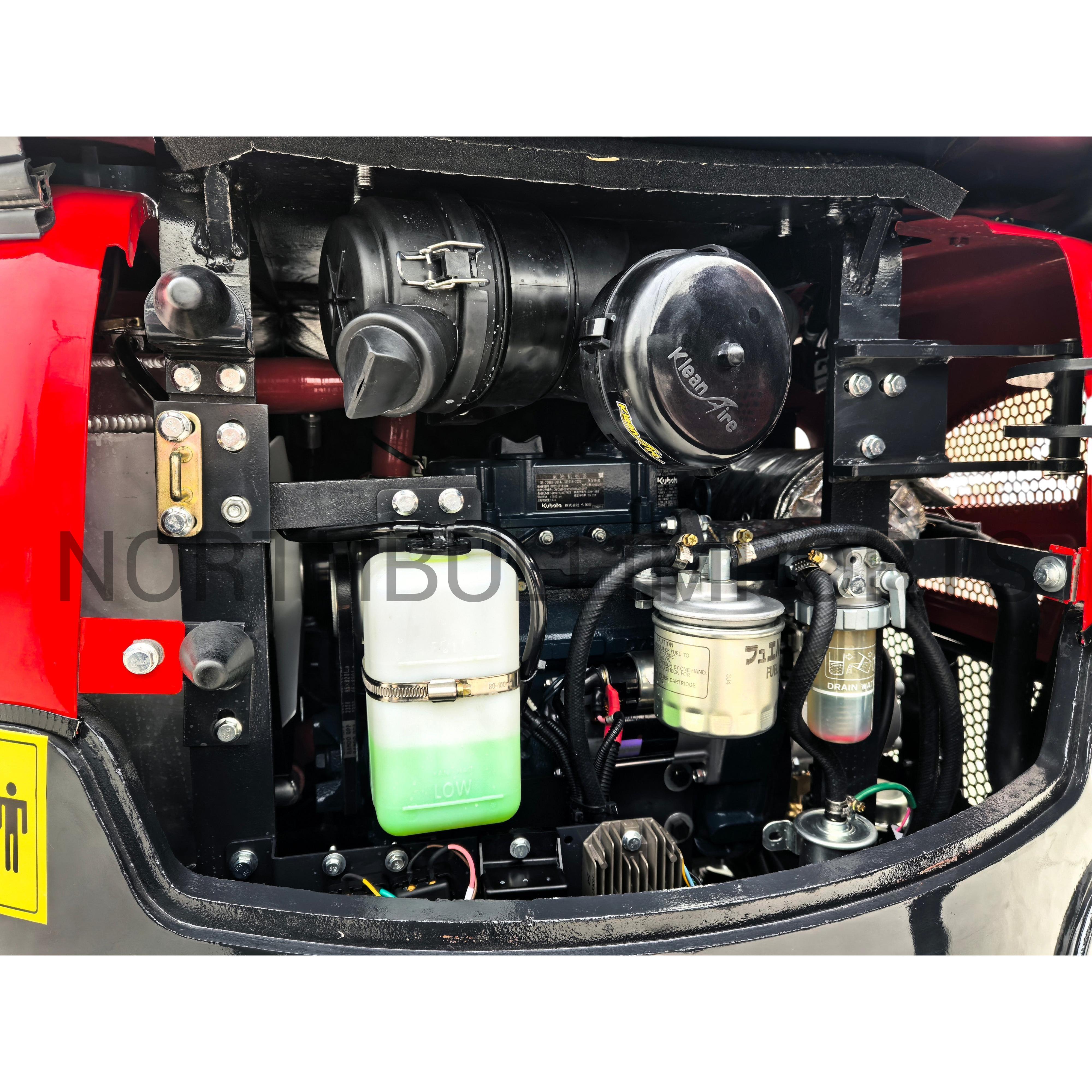

Engine

  • Engine brand: Laidong
  • Engine model: 385
  • Fuel type: Diesel
  • Power (kW/hp): 18.4 / 24,6
  • RPM: 2400
  • Displacement (cc): 1500
  • Number of cylinders: 3
  • Cooling: water cooled
  • Emission class: Euro5
  • Engine pre-heater included? Yes / no: no
  • If no, what is the cost of the pre-heater (RMB): no
  • Alternator output (A): 200
  • Engine weight (kg): 190

Drive and swing motors

  • Travel motor brand: Like
  • Travel motor model: LTM02PAK
  • Travel motor torque (Nm): 2000
  • Swing motor brand: Eaton
  • Swing motor model: 245
  • Swing motor torque (Nm): 2000
  • Swing gear diameter (mm): 480

Hydraulics

  • Hydraulic oil quantity (L): 25L
  • Hydraulic Working pressure (bar): 16MPA
  • Hydraulic Pump type (gear pump/ plunger pump / other): Gear pump
  • Hydraulic Main Pump brand: Tianji
  • Hydraulic Pump model: 10103
  • Hydraulic Main Pump 1 flow (L/min): 29
  • Number of hydraulic pumps: 2
  • Hydraulic Main Valve brand: taifeng
  • Hydraulic Valve model: 20
  • Changeable hydraulic oil filter (yes/no): yes
  • Auxiliary hydraulic Connector type: Thread
  • Auxiliary hydraulics (yes/no): yes
  • Aux 1 oil flow (L/Min): 25L/Min
  • Where is Auxiliary hydraulics controlled from: Foot pedal
  • Hydraulic oil cooler (yes/no): no, optional accessory

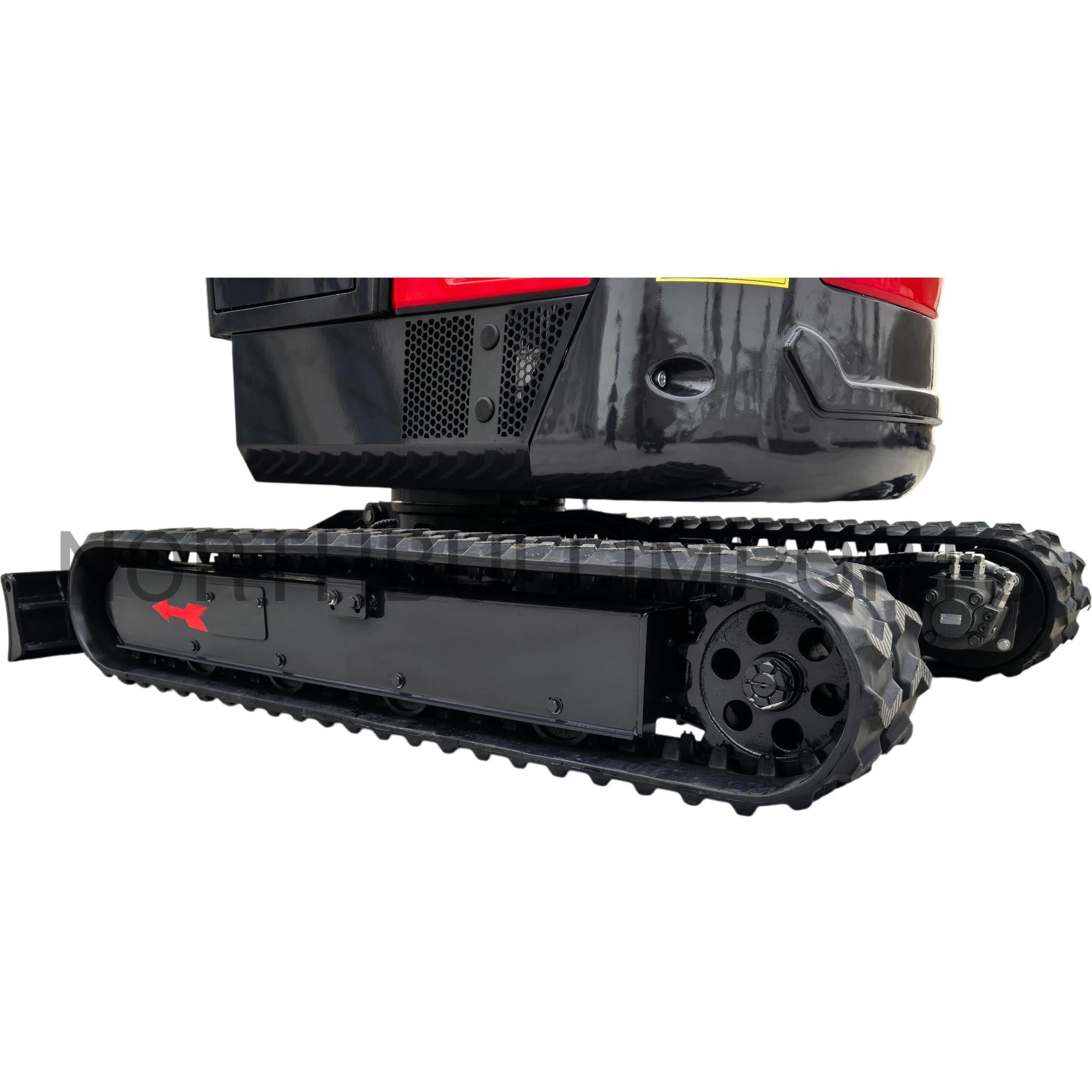

Undercarriage

  • Track type (rubber/steel): Rubber
  • Track width (mm): 230
  • Track length (mm): 1700
  • Track Tensioning system: Grease cylinder tensioner
  • Undercarriage Wheel guard (yes/no): Yes
  • Undercarriage Number of track rollers: 4 per side
  • Undercarriage Track roller size (inch): 160
  • Undercarriage Drive sprocket diameter (mm): 280

Cylinders

  • Bucket tilt cylinder: 65*30*270
  • Excavator boom arm cylinder: 70*30*280
  • Excavator boom main cylinder: 70*30*280
  • Boom Swing cylinder: 65*30*270
  • Blade cylinder: 65*30*280
  • Track extension cylinder: (optional accessory) 70*30*290

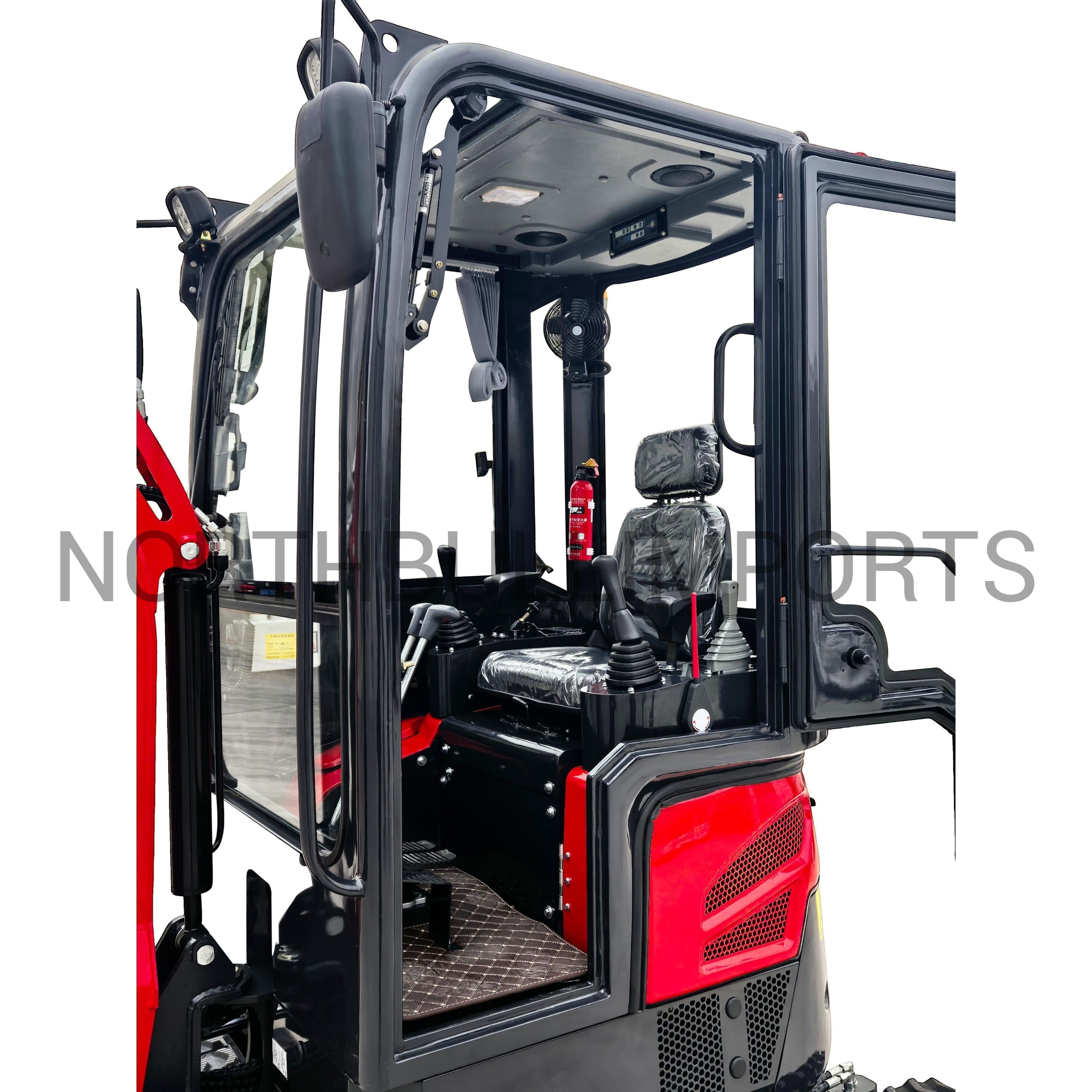

Dashboard and cabin

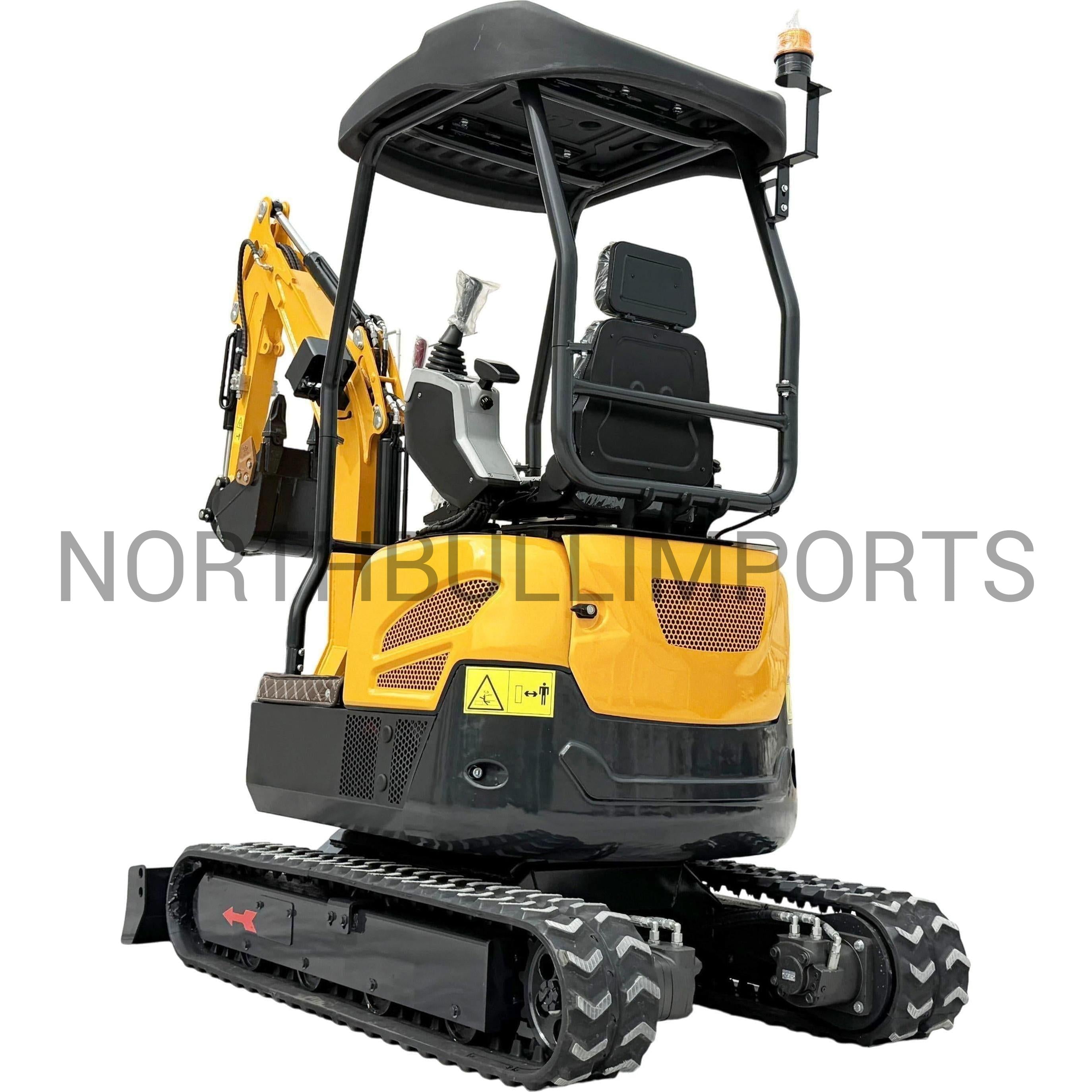

  • Canopy type (No canopy included / Simple canopy, no roll-over protection / Rops / FOPS): rops
  • Seat model: 20
  • Seatbelt: Yes
  • Hour meter: yes
  • 12V output socket: no
  • Shut-off switch for hydraulics: yes

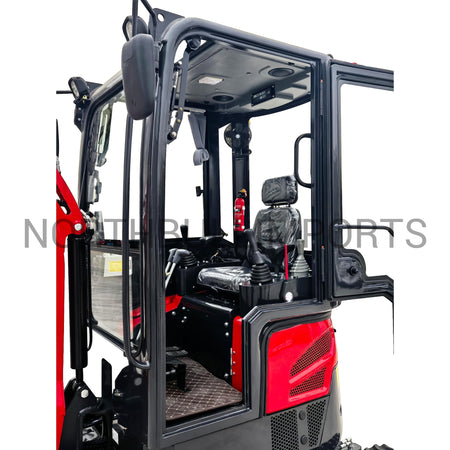

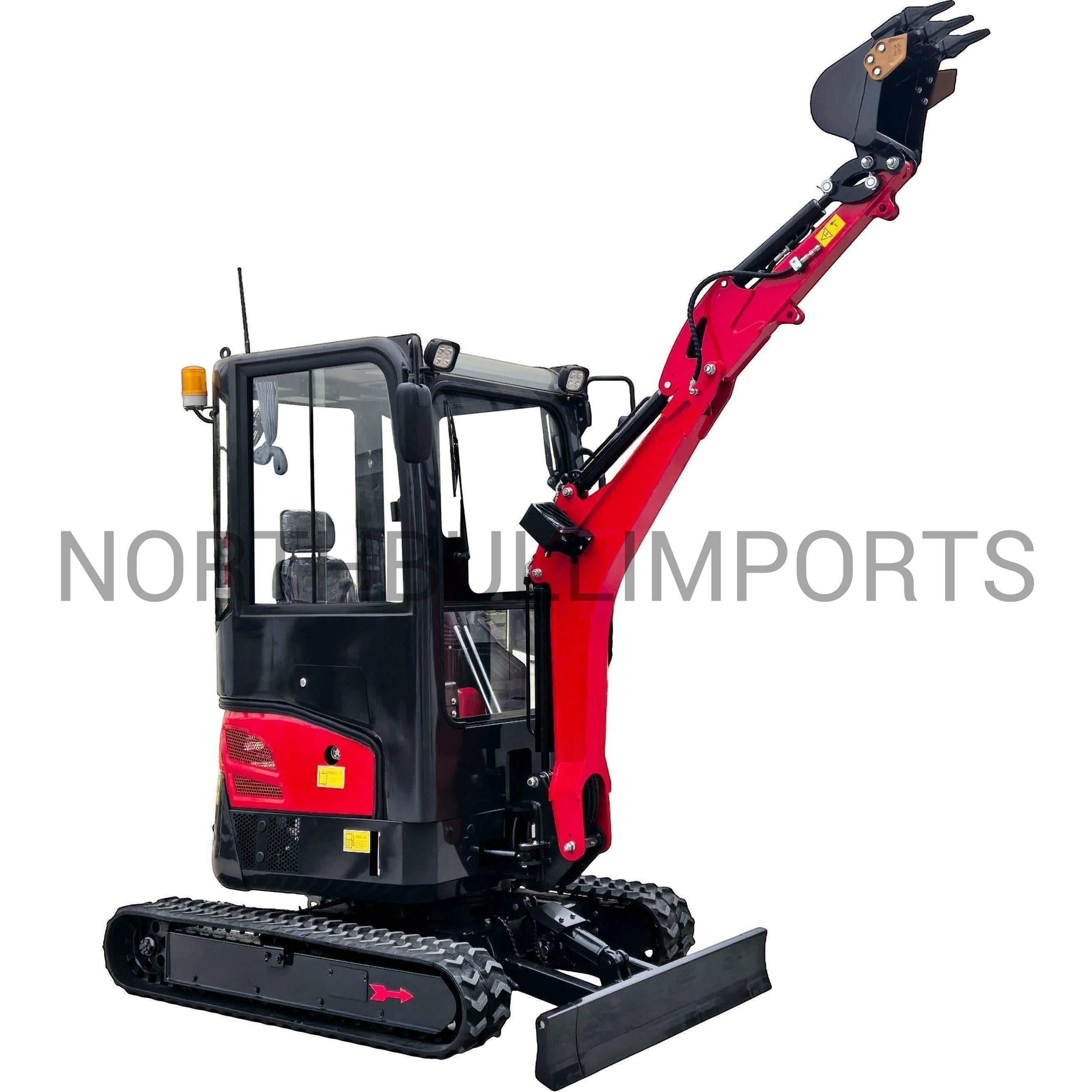

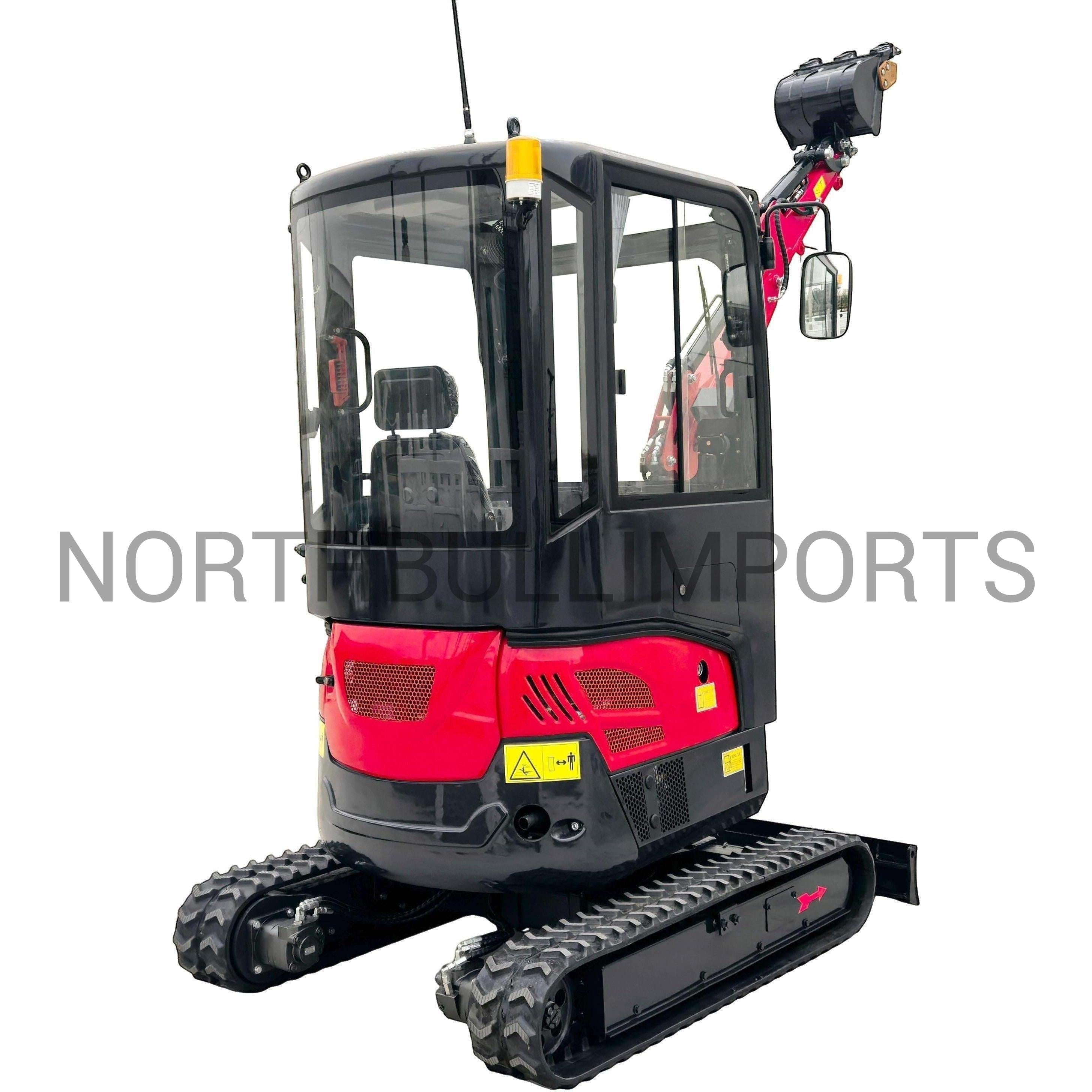

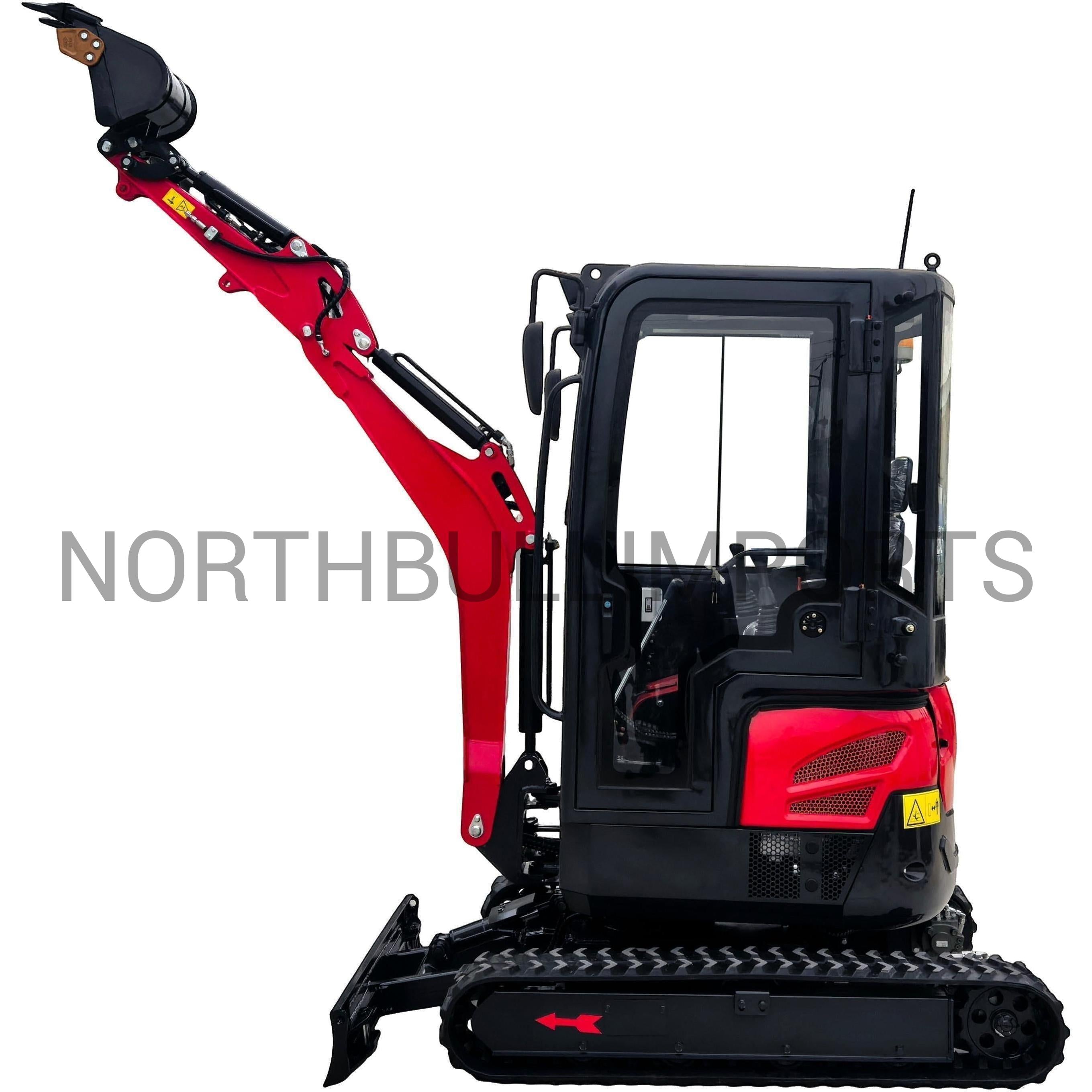

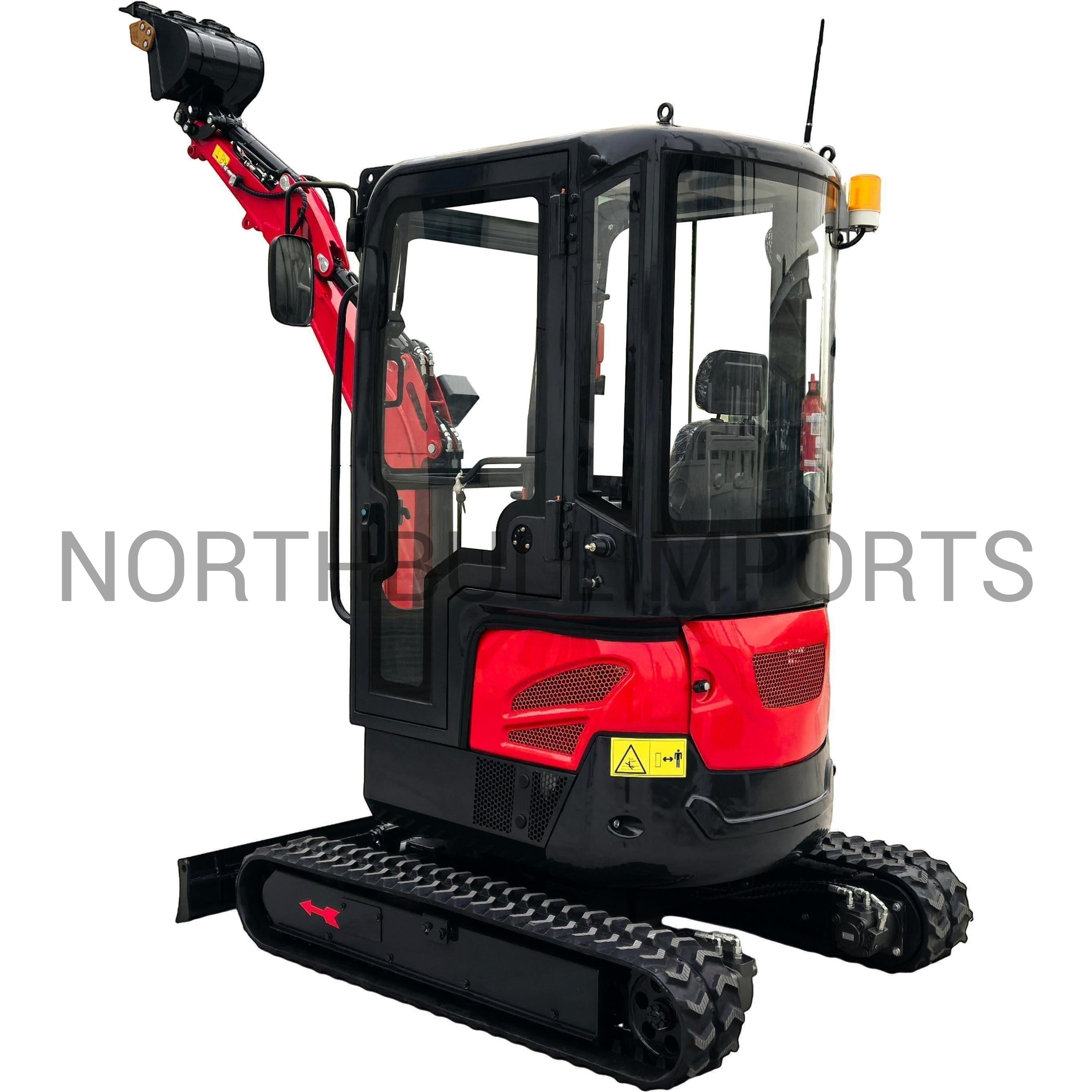

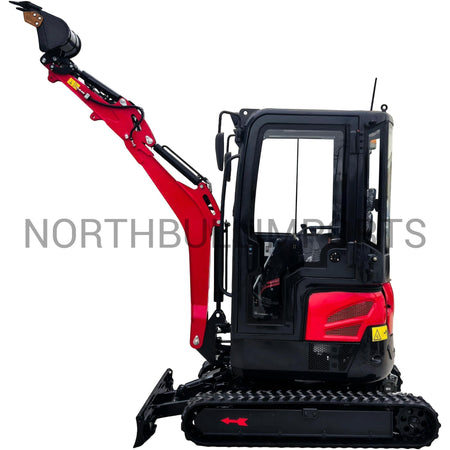

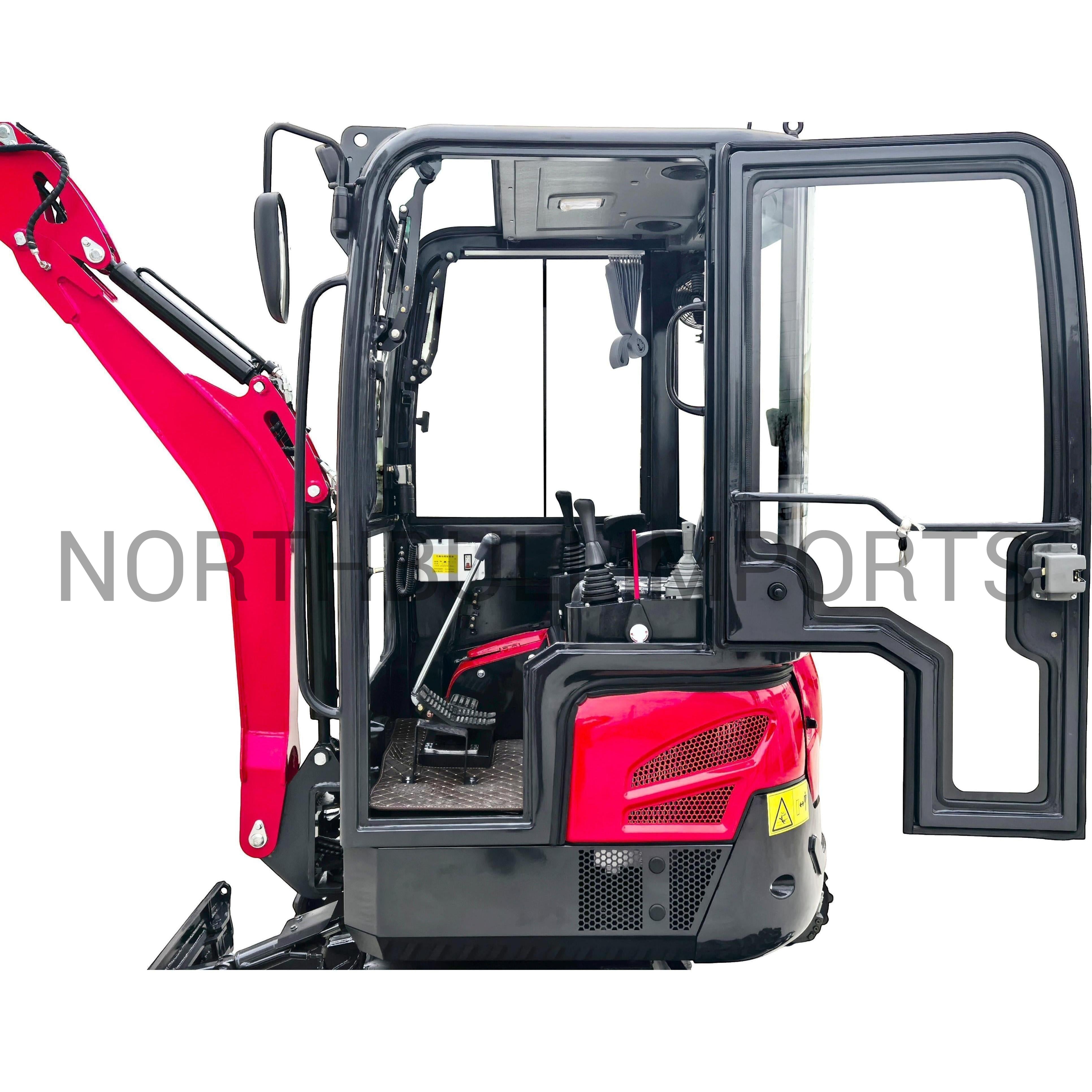

  • Closed cabin included (yes / no, optional / not available): No (optional accessory)
  • Closed Cabin Preheater (yes/no): No
  • Closed Cabin Heater (yes/no): No (optional accessory)
  • Closed Cabin Heater type (water heater with fan / electric heater): Electric heater (optional accessory)
  • Closed Cabin Windshield wiper (yes / no): Yes
  • Closed Cabin Work lights (yes/no): Yes
  • Closed Cabin Fan (yes / no): No
  • Closed cabin beacon light (yes / no): Yes
  • Closed Cabin inside roof light (yes/no): Yes
  • Closed Cabin bluetooth radio and speakers (yes/no): No
  • Closed Cabin side window can be opened (yes/no): Yes
  • Closed Cabin front window can be opened (yes/no): Yes
  • Closed Cabin rear window can be opened (yes/no): No
  • Closed cabin, Curtains in cabin (yes/no): Yes
  • Closed cabin Air conditioning available (yes/no): (optional accessory)
  • If yes, where is the AC-unit positioned (roof / side / back)?: Roof

Attachment coupling dimensions

  • Pin distance (inner) (mm): 90
  • Pin distance (outer) (mm): 150
  • Pin width (mounting area) (mm): 110
  • Pin diameter (mm): 30
  • Standard bucket width (mm): 400

Dimensions and structure

  • Gross Weight (kg): 1600
  • Operating weight (kg): 1700
  • Transport length (mm): 3120
  • Total width (mm): 1160
  • Overall height with canopy (mm): 2310
  • Overall height without canopy/cab (mm): 1700
  • Ground clearance (mm): 402
  • Undercarriage length and width (mm): 1700/1160
  • Blade dimensions (mm) (width, height): 1160/280

Delivery and packaging

  • Which parts are disassembled for shipping: Canopy
  • Estimated product manufacturing time (days): 30
